13 000690871.NA Rev. A Q50 R Carbon

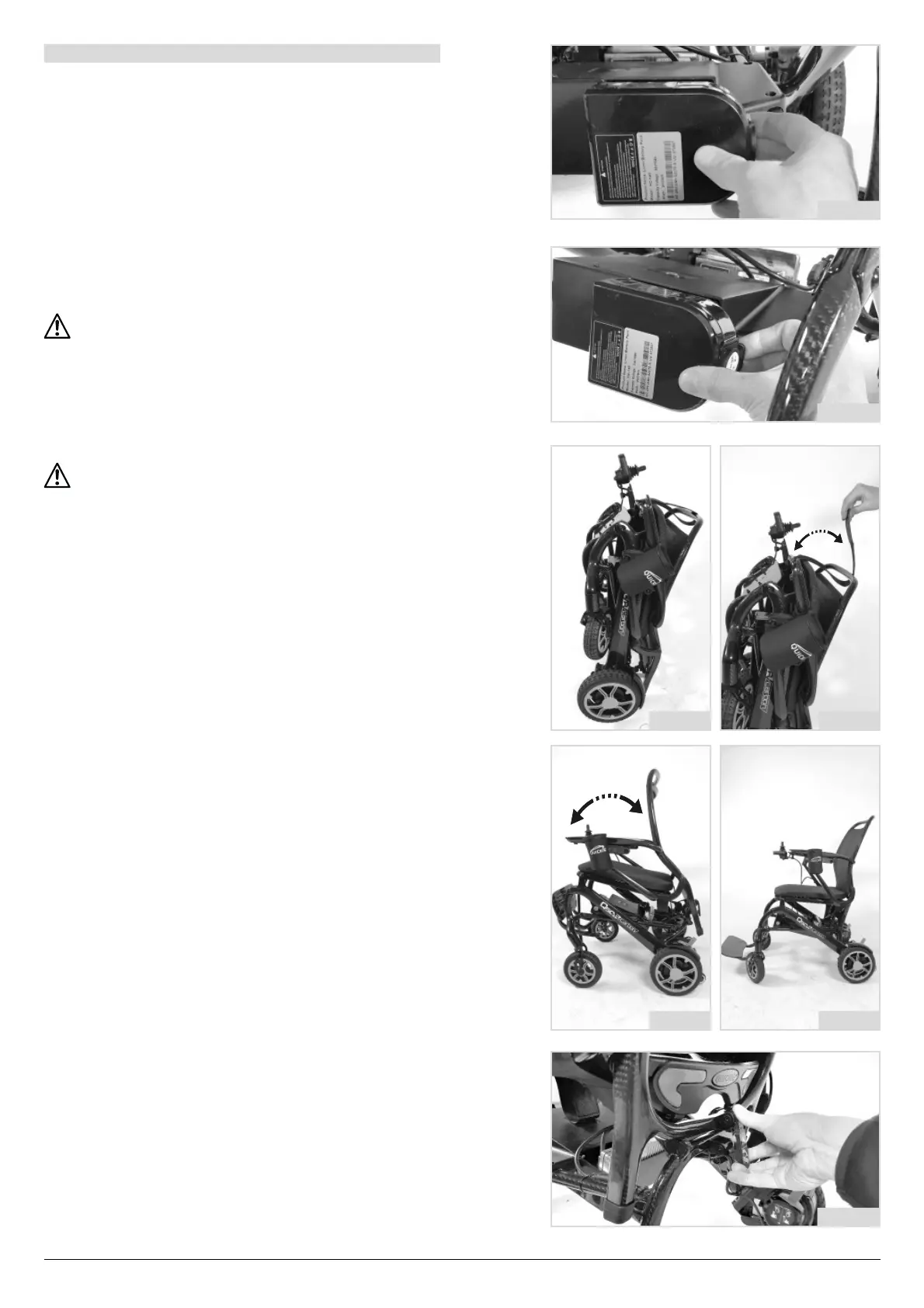

4.0 Se• ng up the wheelchair
4.1 Assembling
Open the packaging box, take out the wheelchair and remove
the protec• ve padding. Firstly open the footrest, take out the
ba• ery and insert it fully into the ba• ery rail. When you hear
a “click”, this indicates the ba• ery is installed in place (Fig.
4.1 - 4.2). Release hook and loop strap wrapped around push
handle (Fig.4.3 - 4.4). Then with one hand on the seat cushion
and one on the backrest, unfold the wheelchair. (Fig. 4.5 - 4.6).
When you hear another “click”, it indicates that the latch has
• xed onto the locking pin (Fig. 4.7), and the wheelchair has
been unfolded.
WARNING!
When inser• ng the ba• ery, make sure that the ba• ery clip
has clicked into place to prevent the ba• ery falling out. If it is
di!cult to insert the •xing clip into the ba• ery, you can pull
the •xing clip open by hand, then insert the ba• ery. Please
make sure that the clip “clicks” into place.
WARNING!
A" er unfolding the wheelchair, please check the latch has
located and secured the backrest locking pin (Fig. 4.7). Please
only sit in the wheelchair once this has been • xed. Otherwise,
it will damage the wheelchair and could cause personal injury.
Fig. 4.1
Fig. 4.3
Fig. 4.5
Fig. 4.4
Fig. 4.6
Fig. 4.2
Fig. 4.7
