RHYTHM SERVICE MANUAL
2009
PAGE 0.11
SUNRISE MEDICAL

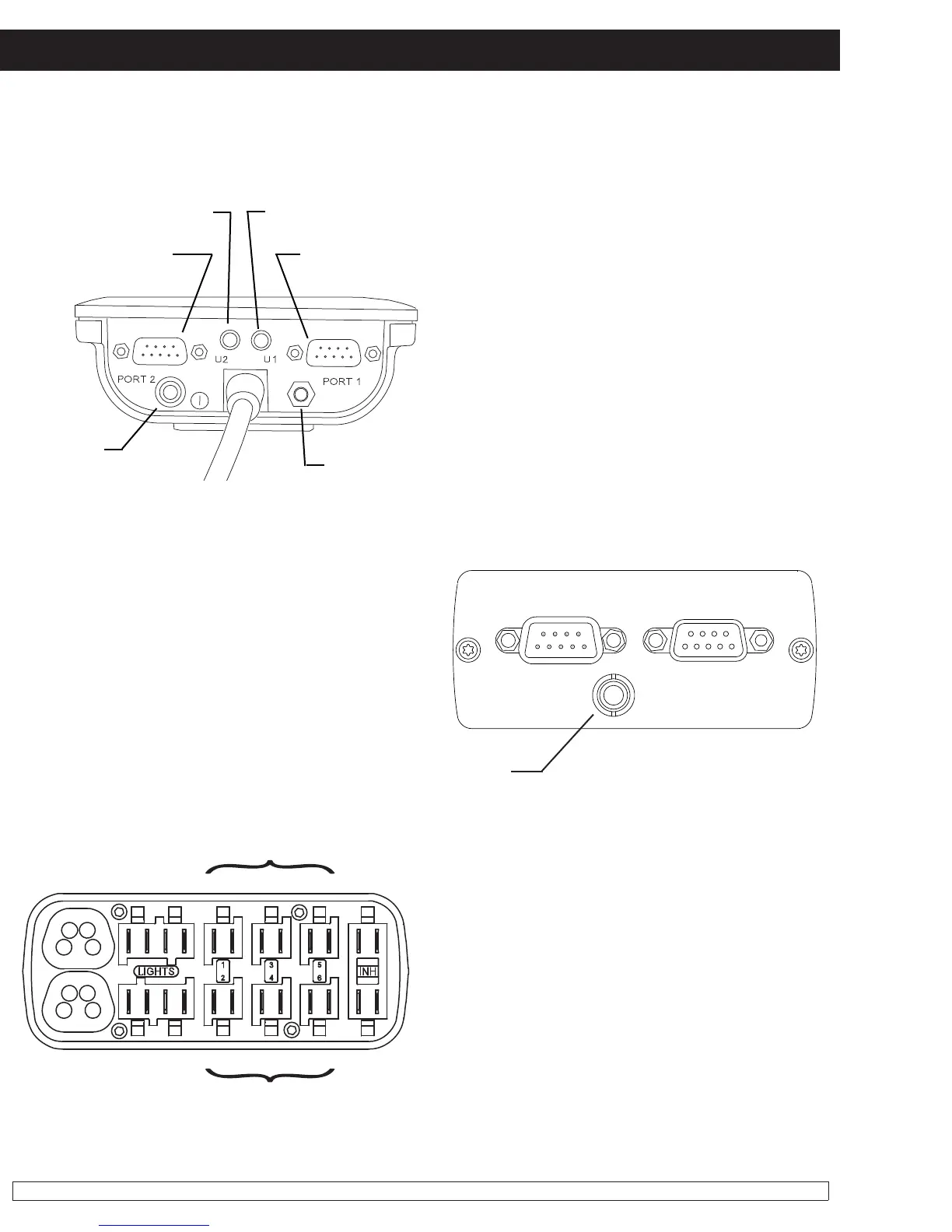

R-NET Plugs/Connectors
1 2 3 4 5
6 7 8 9
On/Off Input
Sip and Puff
Port
User Jack 2
User Jack 1
Port 2 'D' Type
Port 1 'D' Type
1. Forward
2. Reverse
3. Left
4. Right
5. Speed Down
6. Speed UP
7. Horn
8. Common
9. NC
Input
Output
Jack
Left
Lights
Inhibit
4
Inhibit
5
Right
Lights
123
456
Actuator
Channels
Actuator
Channels
Output Module
Omni (bottom)
ISM (Intelligent Seating Module)
