Quickie Rhythm User Manual

19
©2006 Sunrise Medical
POWER BASE SECTION
Rhythm

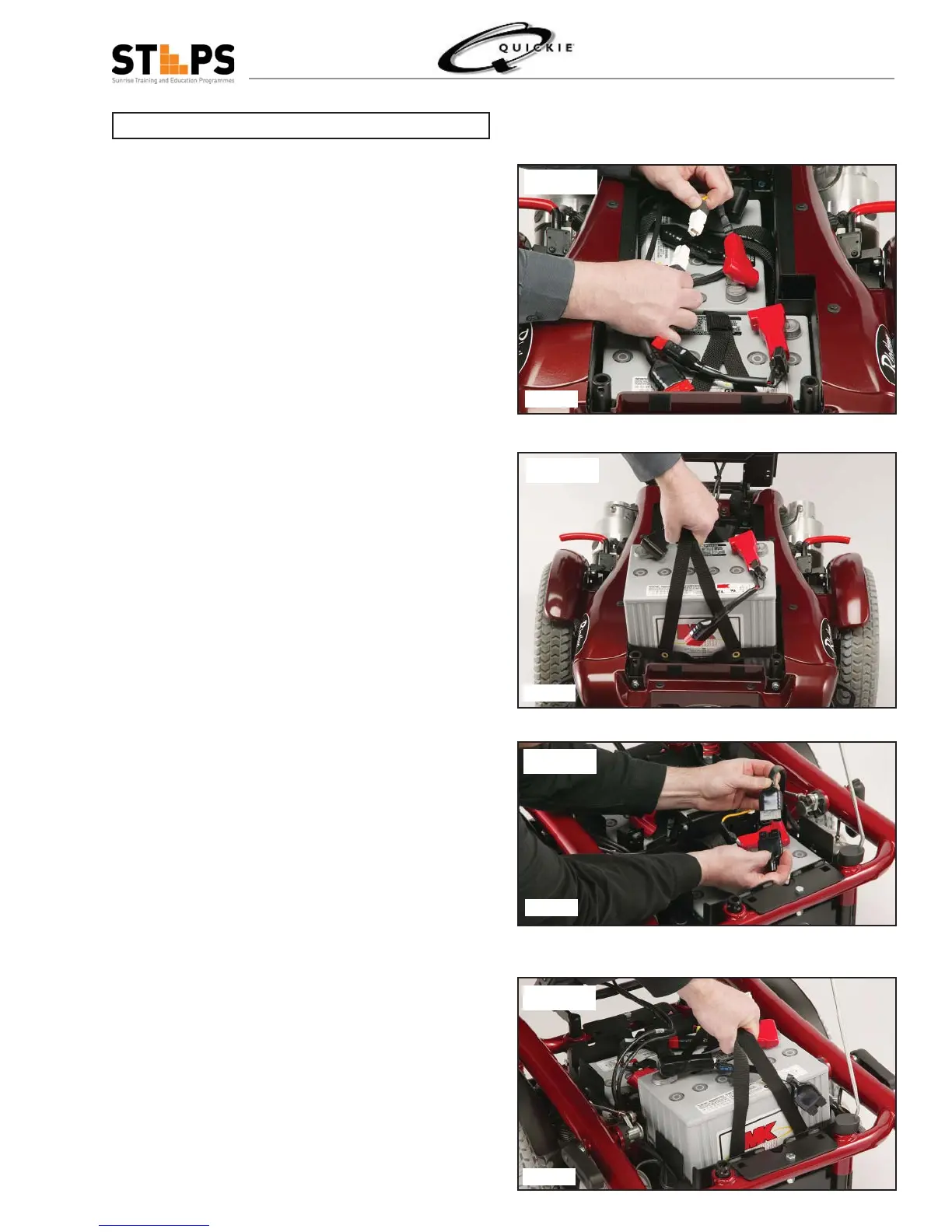

Firmly grasp the red battery connectors and pull 1.
apart.
Firmly grasp the black battery connectors and pull 2.
apart.
Firmly grasp the smaller white battery connectors 3.
and pull apart.
Using provided strap, carefully lift battery from 4.
chair.
To install batteries reverse above procedures.
Rhythm
Rhythm
Groove
Groove
Firmly grasp the red battery connectors and pull 1.
apart.
Firmly grasp the black battery connectors and pull 2.
apart.
Firmly grasp the smaller white battery connectors 3.
and pull apart.
Using provided strap, carefully lift battery from 4.
chair. Rear battery is removed at an angle due to
seat assembly.
To install batteries, reverse above procedures. Insure
all wiring is clear of battery compartment before replac-
ing batteries in compartment.
Changing the Battery
Groove
Fig 1.6
Fig 1.7
Fig 1.8
Fig 1.9
