Quickie Rhythm - R-NET Plugs;Connectors

RHYTHM SERVICE MANUAL
PAGE 0.10
2009SUNRISE MEDICAL

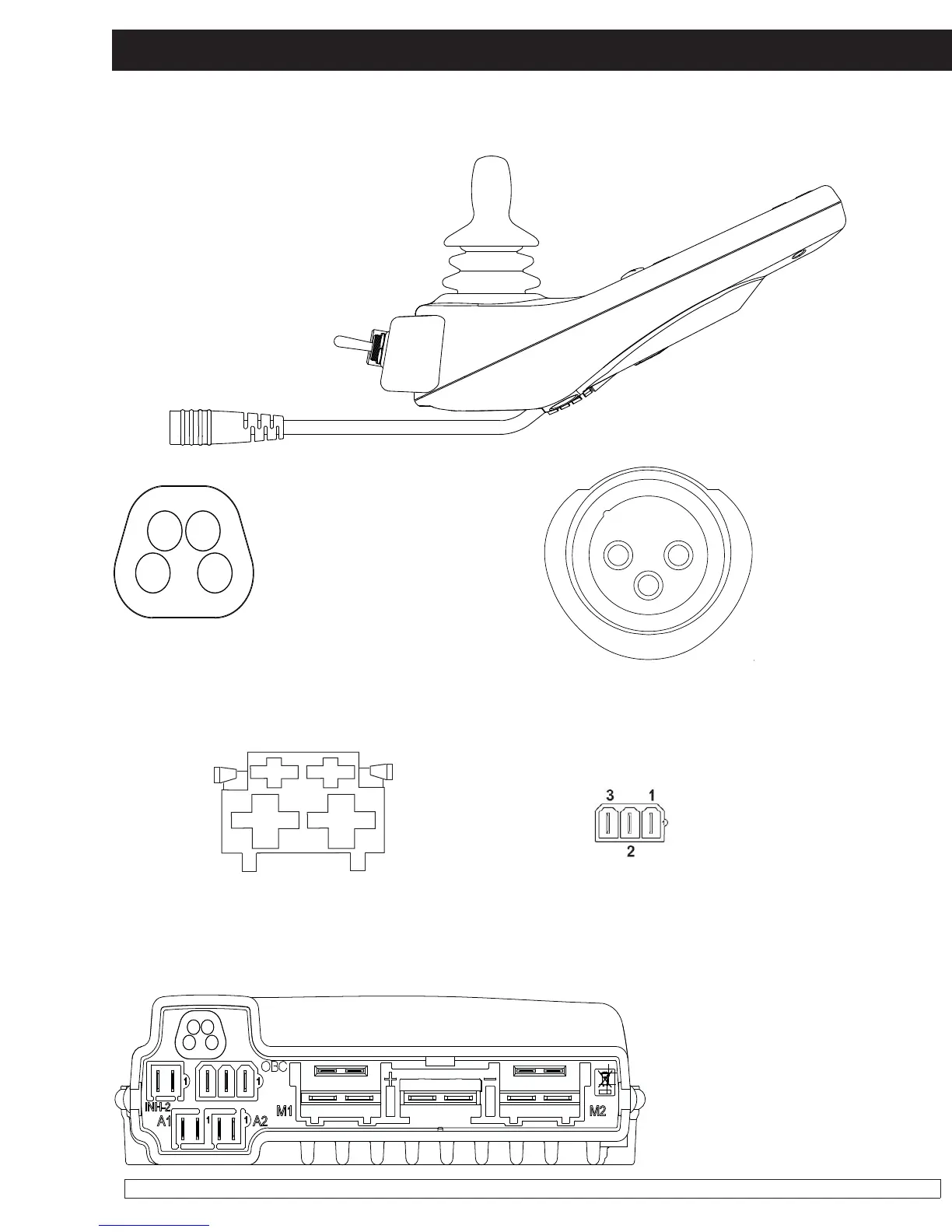

R-NET Plugs/Connectors
M1 = RIGHT SIDE MOTOR
M2 = LEFT SIDE MOTOR
JSM = JOYSTICK MODULE
INH-2 = INHIBIT 2
A1 = ACTUATOR 1
A2 =ACTUATOR 2
OBC = ON BOARD
CHARGER
+ - =BATTERY
1 = 24 Vdc
2 = 0 Vdc
3 = Inhibit 1/ Programmer
1 = Black (-)
2 = White
3 = Yellow
4 = Red (+)
2
1
3
charger port
Motor Plug Port
Charger port
Outside View
On-Board Charger (not used)
1 = 24 Vdc
2 = 0 Vdc
3 = INHIBIT 1/
PROGRAMMER
R-net Controller
