QUICKIE ELECTRONICS SECTION
Quickie Electronics by Delphi
Hand Control Types and Functionality
Actuator Modes
Power – On/Off
Horn
Speed Up / Down Buttons
Power – On/Off
Horn
Powered Seating Button
Speed Up / Down Buttons

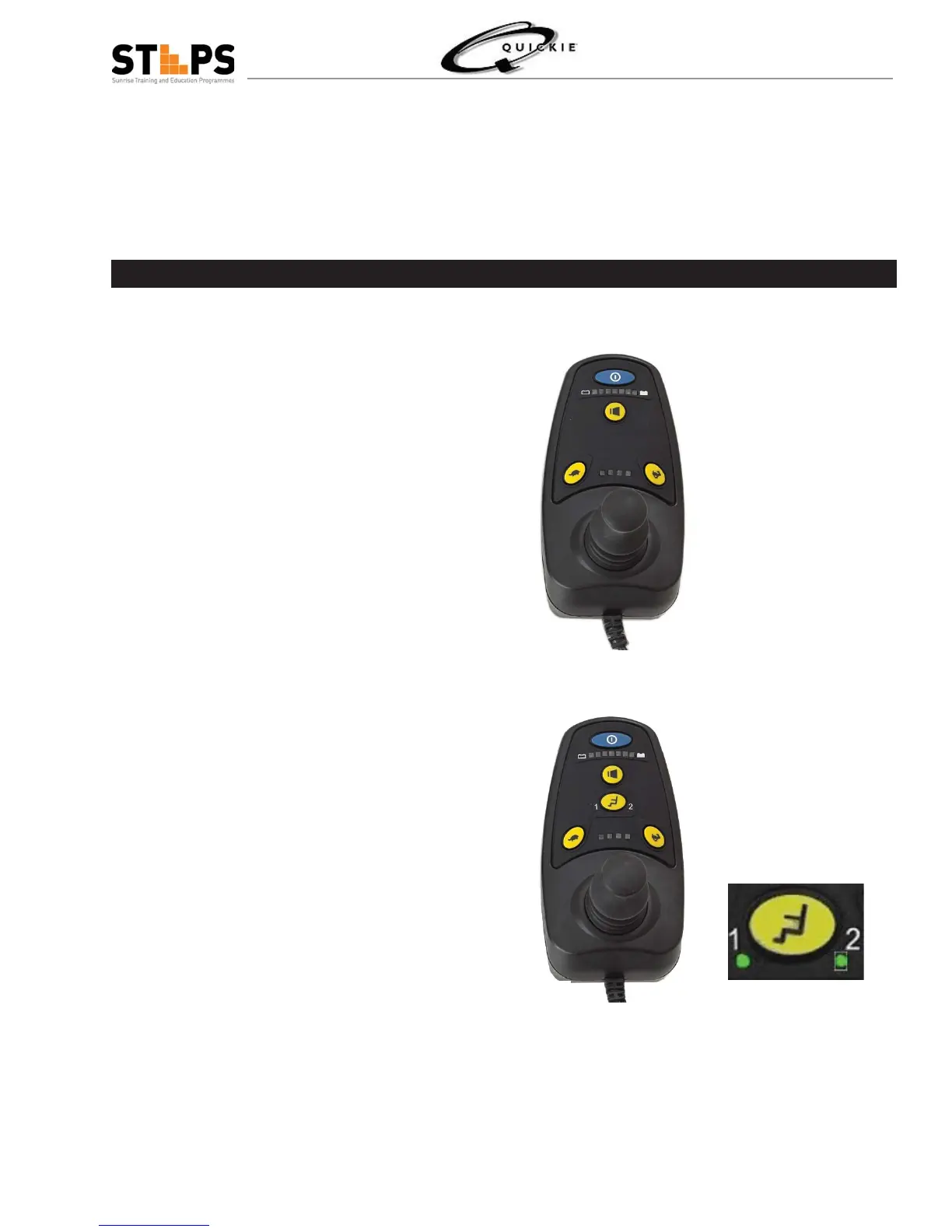

QC 4 Button Joystick
Sunrise P/N 101568 or 104972
QC 5 Button Joystick
Sunrise P/N 101569 or 104973
Joystick Descriptions:
All joysticks use a Centered Power On/Off •
button which have a delay for Power-up
No delay for Power-down. •
All Joysticks have a Horn which is programmable •
for volume levels.
The QC4 and QC5 Joysticks have a Minimum •
speed designated as a Turtle and a Maximum
speed designated as a Rabbit
To increment the 4 separate LED’s press the •
Rabbit and to decrement or decrease the speed
press the Turtle button.
The QC5 is the only Joystick that uses an •
Actuator button.
The actuator button is used to select actuator •
control.
The LED under the last actuator used will •
illuminate.
The LED will illuminate under the chosen •
actuator if the joystick is pushed to the right or
left.
For dual legrest operation, push joystick once •
again and both LEDs will illuminate and actuator
pair will operate .
The operation of up or back ( Drive Through •
Condition) is achieved by defl ecting the Joystick
in the reverse direction
The forward direction will allow the customer to •
come back to starting position.
Fig 2.1
Fig 2.2
Fig 2.3
