84©2006 Sunrise Medical
SEATING SECTION

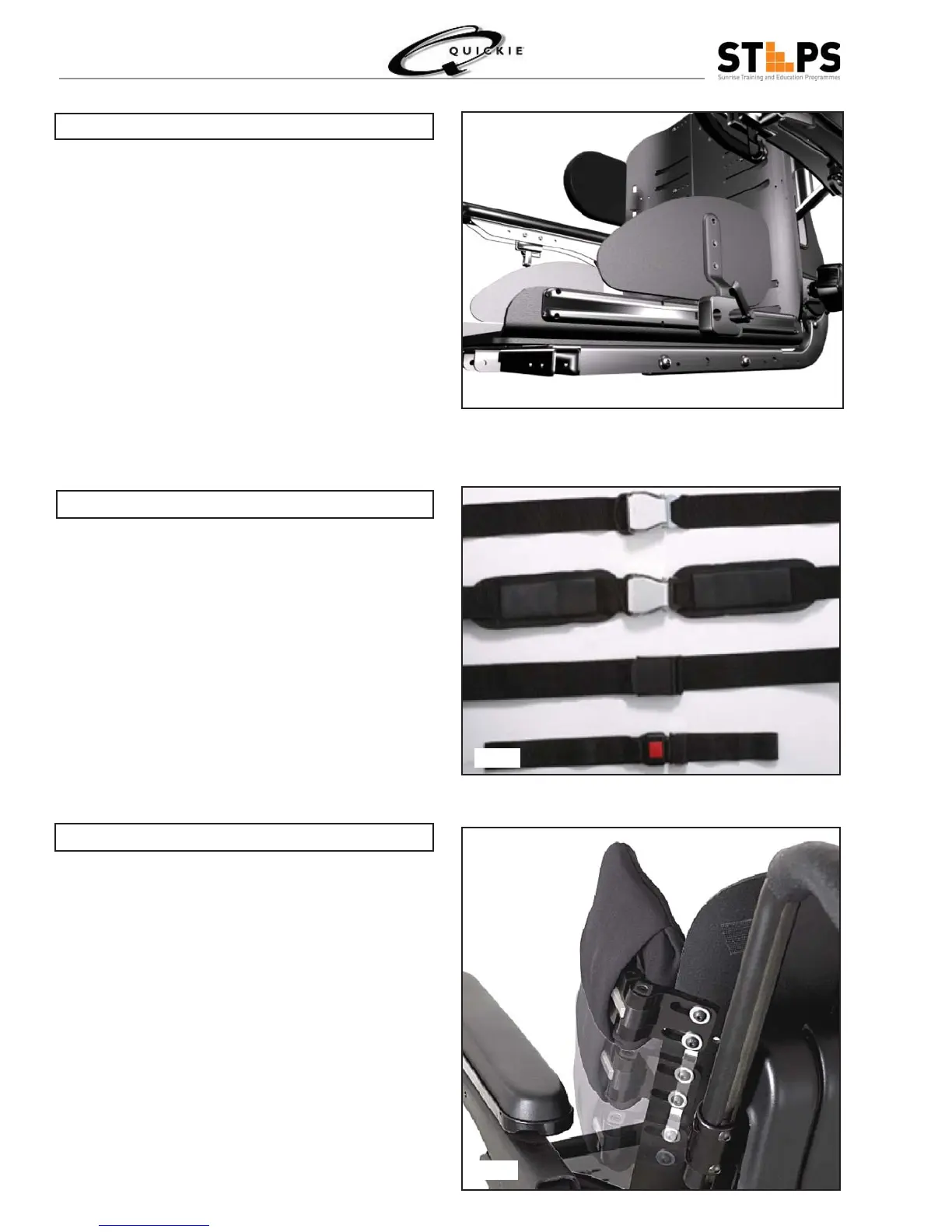

Lateral supports come in several different styles, •
mounts and offsets. Mount them on the seat
back wings as shown.
Position them by moving them up and down in •
the slot on the back wing.
Mount the side guard on the seat pan rail as •
illustrated.
Slide the side guard forward or rearward as •
required.
Adjust the height of the guard by moving up or •
down the guard plate.
Mount to dovetail channel on seat wings
Mounting and Adjusting Lateral Supports
Positioning Belts
Installing and Adjusting Side Guards
Fig 3.43
Fig 3.44
Fig 3.45
