Quickie Rhythm User Manual

79
©2006 Sunrise Medical
SEATING SECTION
1. The Perfect Fit Flip Back Height Adjustable Armrest is only available with the manually reclining backrest.
2. Armrest height ranges from 7”–14”. Up to 2” of width adjustment is available.
Complete the following procedures to adjust the armrest height:
To adjust the armrest height, loosen the two mounting-clamp bolts(A), slide the armrest up or down and 1.
retighten.
To increase the slots adjustment range, remove the armrest, fl ip the mounting bracket, and reinsert the 2.
armrest( Fig 3.28). This adds an additional 1.5” of vertical adjustment to the existing 1.5”, providing a total 3”
of vertical adjustment.
If still more upward or lower adjustment is necessary, remove the armrest from the mounting bracket(Fig 3.29) 3.
and reinsert at a 45º angle(Fig 3.30).
Retighten the mounting bracket. 4.
Arm Rest Adjustments

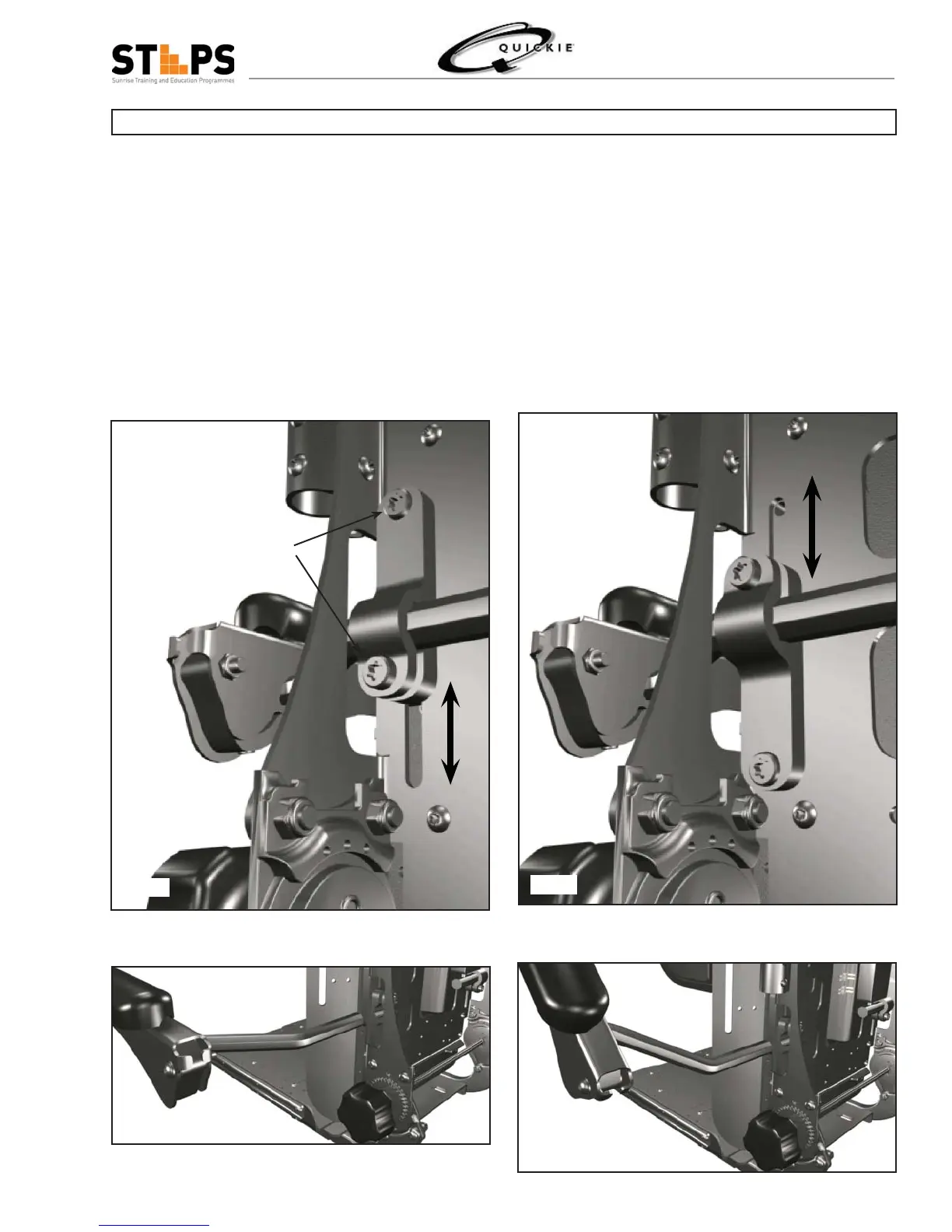

Fig 3.26
Fig 3.27
Fig 3.28
Fig 3.29
A

Quickie Rhythm Specifications
