80©2006 Sunrise Medical
SEATING SECTION
Level the Arm Pad
Complete the following steps to level the arm pad:
Loosen the upper clamps.•
Pull the armrest out.•
Reinsert the armrest so the arm pad is parallel •
to the ground and tighten the upper clamps.
Notes:
This method of adjusting the armrest height adds 1.
an additional 2” to each of the upper and lower
adjustment range.
The total available adjustment range from the 2.
seat to the top of the arm pad is 7” (7”-14” total
range).

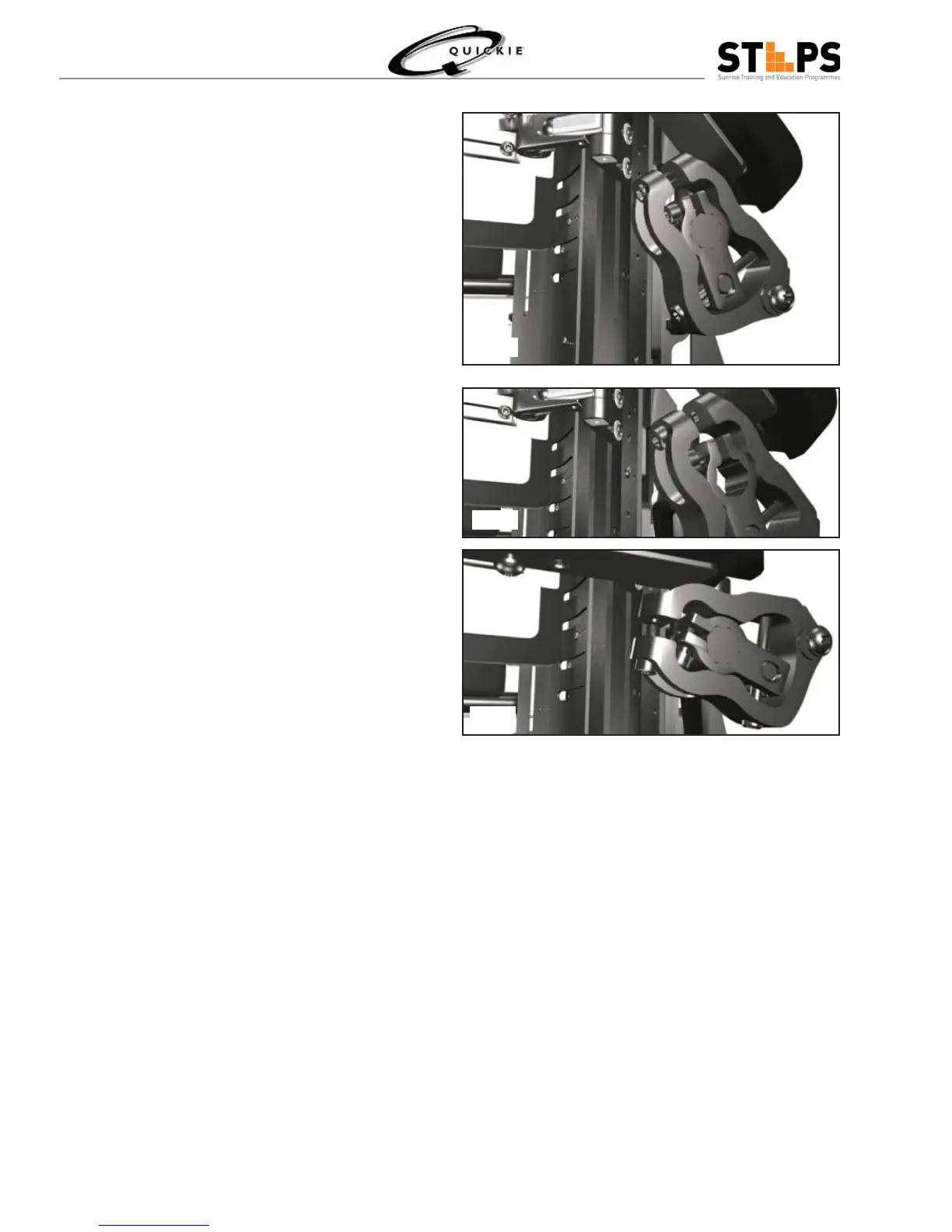

Fig 3.30
Fig 3.31
Fig 3.32
