37
©2006 Sunrise Medical

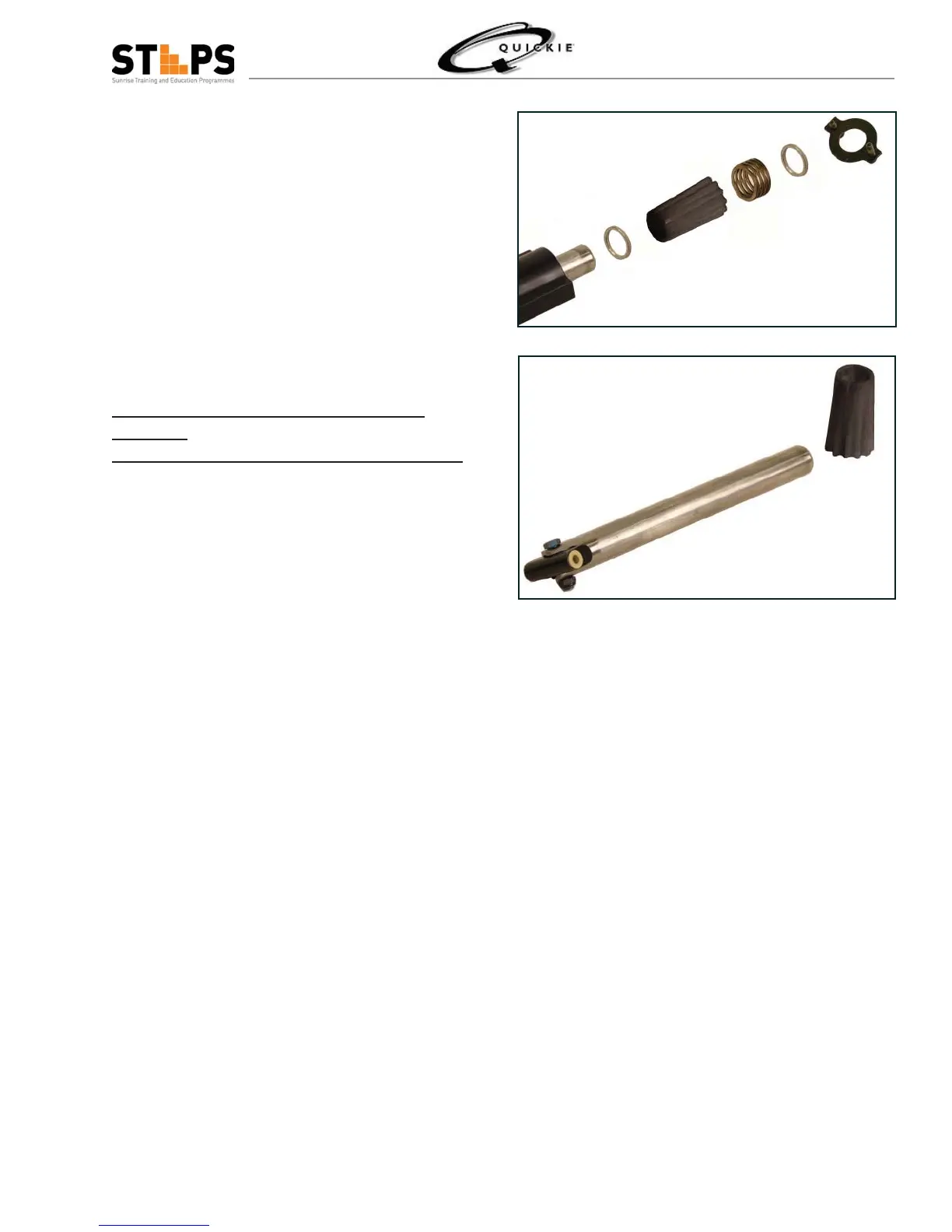

POWER BASE SECTION
Using a soft hammer tap down on the top of the cylin-
der to release the internal parts.
Use soap and water
, alcohol or acetone to clean the
Damper Rod and the plastic
Anti-Pitch T
aper
.
Do not lubricate any parts of the anti-Pitch
Assembly
.
Always use new cotter pins when reassembling.
Fig 1.68
Fig 1.69
36
38
Table of Contents
Table of Contents
3
Introduction
4
Tools Required
4
Diagnostics Chart
6
Basic Setup
7
Multimeter Tutorial
8
The Multimeter
8
The Probes
8
The Ports
8
Symbols
9
Health and Safety
10
Good Working Practices
10
Battery Safety
10
Battery Chargers
11
EMI Warnings
11
Electro Static Discharge
13
Power Base Section
15
Rhythm & Groove Power Bases
15
Batteries
15
Battery Diagnostics
16
Battery Types
17
Accessing the Batteries
18
Changing the Battery
19
Battery Connectors
20
Battery Chargers
21
Desktop 8 Amp Fully Automatic Charger
21
Lightweight Charger
22
Trouble Shooting
22
Motors
23
Checking the Motor Brushes
23
Checking Motor Resistance and Continuity
23
Hubs and Bolts
24
Output Shaft
24
Motor Removal and Replacement Rhythm
25
Motor Removal and Replacement Groove
26
The Freewheel Mechanism
27
Drive Wheels
29
Changing Drive Wheel Assembly
29
Changing Drive Wheel Tires
29
Suspension
32
Changing and Adjusting Suspension
32
Anti-Pitch Timing Adjustment
34
Anti-Pitch Damper Mechanism Cleaning
36
Replacing Shrouds
38
Quickie Electronics Section
39
Quickie Electronics by Delphi
39
Hand Control Types and Functionality
39
Appendix A
39
QC 4 Button Joystick
39
QC 5 Button Joystick
39
QR3 - 3 Button Rehab Control
40
QR7 - 7 Button Rehab Control Assignable
40
Programming Devices
48
Electronic Pin out Characteristics - QC Motor Controls
51
Electronic Pin out Characteristics - QR Motor Controls
52
Diagnostics Overview
53
Quickie by Delphi Diagnostic Codes
53
Delphi Diagnostics Trouble Shooting Chart
55
Seating
71
Introduction
71
Adjustments
74
Seat Back and Seat Pan Width Adjustments
75
Seat Back Height Adjustments
76
Seat Depth Adjustments
77
Manual Back Rest Adjustment
78
Arm Rest Adjustments
79
Armrest Angle Adjustment
81
Arm Pad-Position Adjustment
81
Installation - Adjustment of Lateral Knee Supports
82
Leg Rest Hangers
83
Leg Rest
83
Installing and Adjusting Side Guards
84
Positioning Belts
84
Mounting and Adjusting Lateral Supports
84
Mounting and Adjust Head Rests
85
Center Mount Foot Rest
85
The Perfect Fit System
86
Troubleshooting the Recline Seating System - Without QR-MAC
88
Trouble Shooting Seating Function Other than Recline
91
Troubleshooting the Perfect Fit System with QR-MAC
92
Reed Switch Adjustment
98
Power Modules
99
Seat Interface
101
Perfect Fit Seating System
71
Power Recline with Power Shear Reduction
102
The Wheelchair will Only Drive in Creep Speed, or the Back will Not Drive to the Preprogrammed Value
103
The Back will Not Drive to the Preprogrammed Shear Value
105
The Recline Actuator will Not Run, or Runs Erratically
107
The Shear Actuator will Not Run, or Runs Erratically
108
Adjustments
110
Recline Actuator Removal
112
Shear Actuator Removal
115
Recline CRS Replacement
116
Shear CRS Replacement and Adjustment
117
Acronyms for Delphi
118
Quickie Rhythm Service Manual
120
VR2 Remote Controller
121
VR2 Plugs/Connectors
122
VR2 -Main Wiring Diagrams
123
Sunrise Medical
124
R-NET Remote Controller
125
R-NET Optional Electronics
127
R-NET Plugs/Connectors
128
Main Wiring Diagram R-NET
130
Battery Connection Test
133
Check Battery Wire Harness
134
Battery Gauge Blinks Once Every 2.5 Seconds
135
Battery Gauge Flashes Rapidly
135
Battery Gauge Flashes Slowly
135
Battery Gauge Is Steady
135
Battery Gauge Steps
135
The Maximum Speed Indicator Flashes
135
The Maximum Speed Indicator Ripples
135
VR2 Remote Controller Display
135
VR 2 Remote & R-Net LED Controller Display .2.2
136
R-Net Color Joystick & OMNI Controller Display Symbols
137
One Bar - Low Battery Voltage )
139
Two Bars - Left Motor Disconnected
139
VR2 Controller Diagnostic Codes
139
Three Bars - Left Motor Wiring Trip)
140
Four Bars- Right Motor Disconnected
141
Five Bars - Right Motor Wiring Trip
142
Seven Bars + Speed Profile Indicator Communication Error
142
Seven Bars - Possible Joystick Trip
142
Six Bars - Charger Connected
142
Eight Bars - Possible Control System Trip
143
Nine Bars - Solenoid Brake Trip
143
Ten Bars - High Battery Voltage
143
Chair will Not Power
145
R-Net Troubleshooting Procedures
145
Power Chair Displays a Fault on the Hand Control or Omni
149
R-Net Fault Codes
149
R-Net Fault Codes Cont
150
Example of R-10 Fault Isolation
151
Power Chair will Not Drive in Creep Speed When Tilted
153
Tilt will Not Operate
154
Power Chair will Not Drive at Full Speed
157
Troubleshooting Recline
157
Troubleshooting Power Recline Calibration
158
Power Chair will Not Drive in Creep Speed When Reclined
159
Power Recline Does Not Operate
160
Power Shear Does Not Operate
161
Troubleshooting Power Legrest
163
Non Tilt Module/Packer Interface
165
Seating System Mounting Instructions
165
Seat to Tilt Mounting
166
Tilt to Interface Mounting
168
New Power Recline Seating System Mounting Instructions
169
Seat to Recline Mounting
169
New Power Tilt & Recline Seating System Mounting Instructions
170
Seat to Tilt/Recline Mounting
170
Seat to Floor Height Matrix
171
Asap Fixed Center Mount Footrest Mounting Matrix
174
Adjusting Power ELR / ALR Legrest Length
175
Adjusting Power Recline Backrest
177
OBP Programming Quick Guide
179
