SECTION 2 INSTALLATION
The GRB-200 is built in a 1U enclosure that can be mounted in a rack or used on a desktop.
It is designed to operate in a standard office environment.
2.1 DESKTOP USE
Four rubber foot pads must be installed on the bottom of the GRB-200 for desktop
use (see Figure 4).
Rubber
Foot Pads and
#
8 8/32 x 1/4 screws (4)

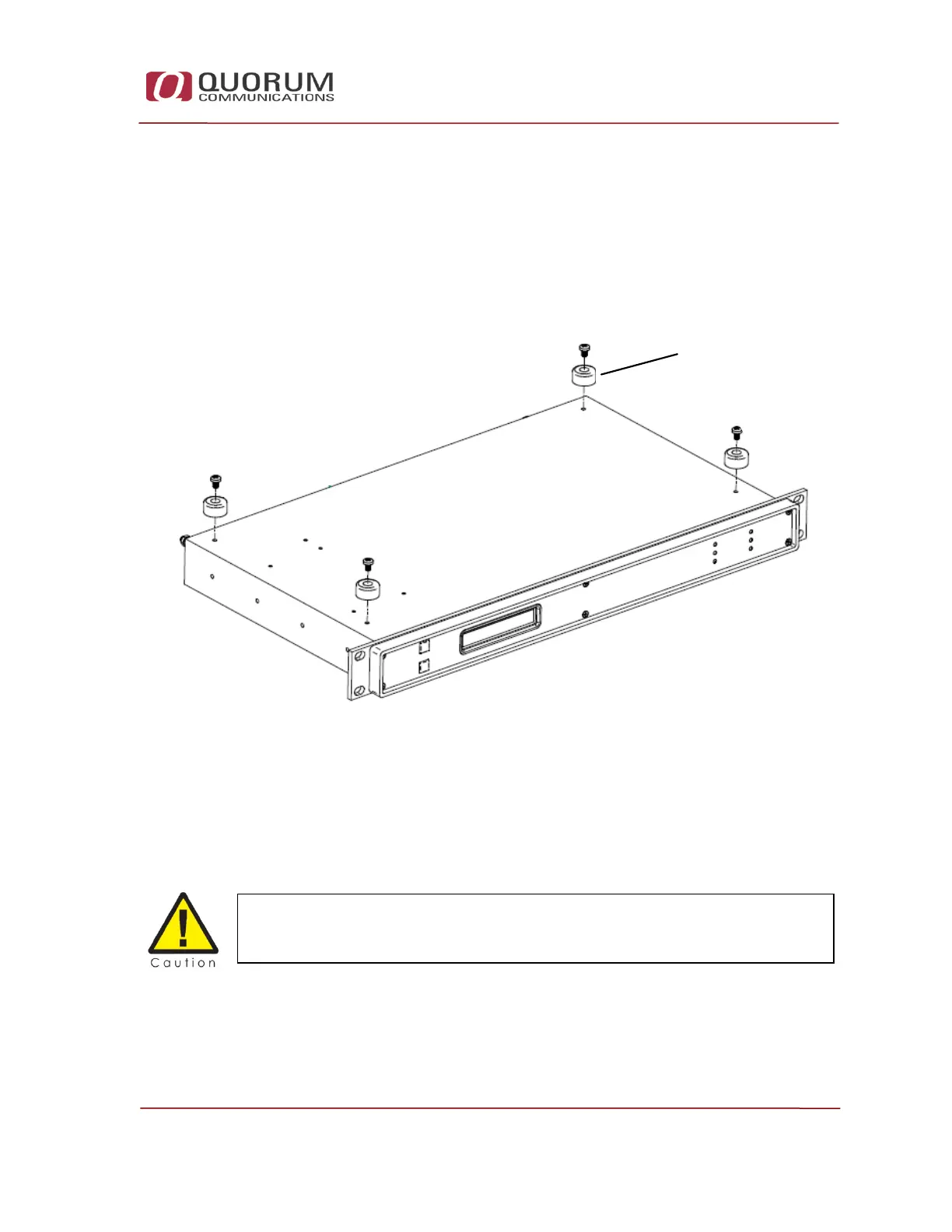

Figure 4 - Rubber Foot Pads and Screws (Bottom View of Unit)
The GRB-200 requires a minimum clearance of five (5) centimeters (2 inches) for
ventilation/airflow. Placing a Orbital Systems, Ltd. HRD or LRD receiver on top
of the GRB-200 is permitted if the unit also has mounting feet installed.
