2.3 CONNECTIONS

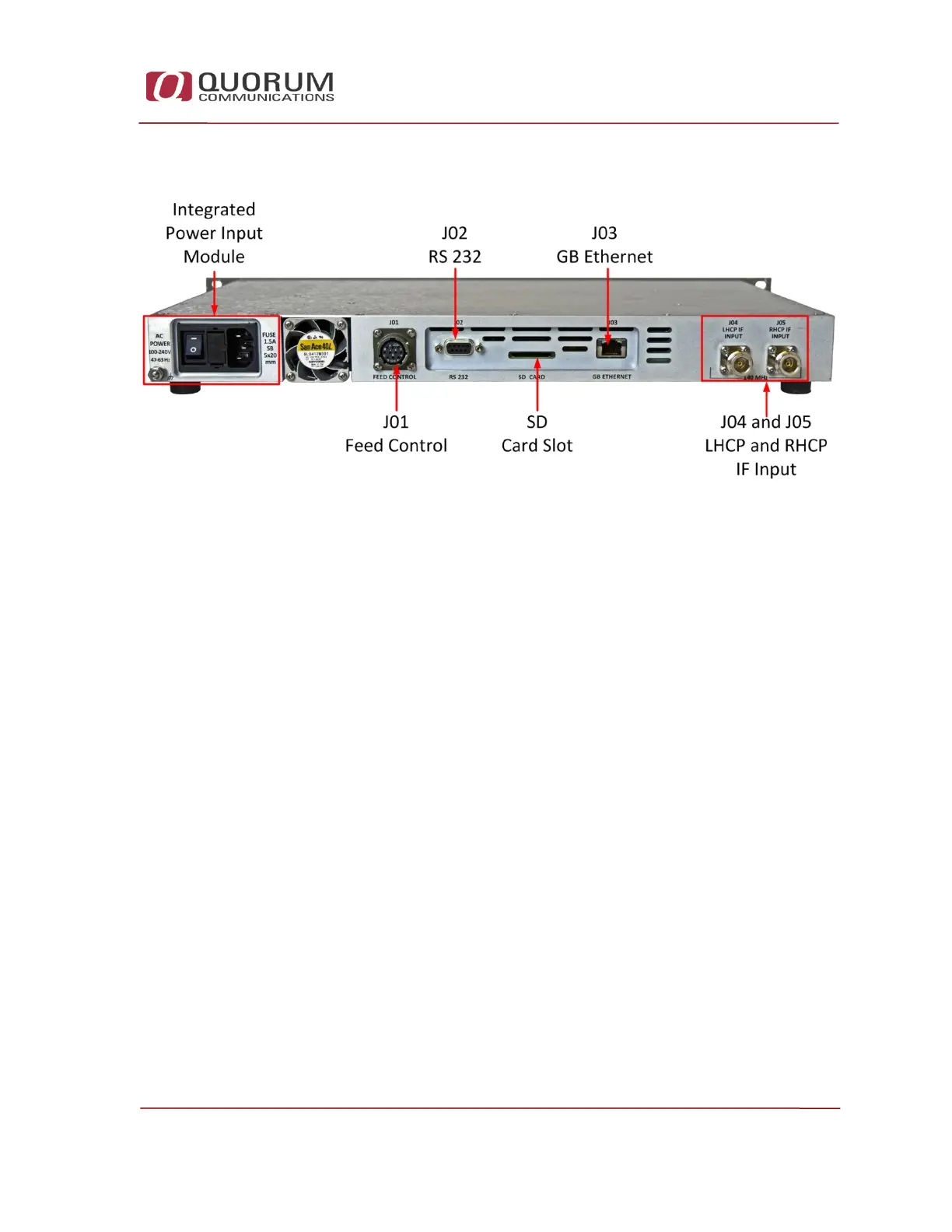

Figure 6 - GRB-200 Rear Input Panel Connections
The following connections are located on the rear panel of the GRB-200
Demodulator
• AC Power Input (Integrated Power Input Module)
• J01 – Feed Control (MS-Type Connection)
• J02 – RS 232 (DB9 Connection)
• SD Card Slot
• J03 – GB Ethernet (CAT-5e or CAT-6)
• J04 – LHCP IF Input (N-Type Connection)
• J05 – RHCP IF Input (N-Type Connection)
