IF Inputs 2.3.6

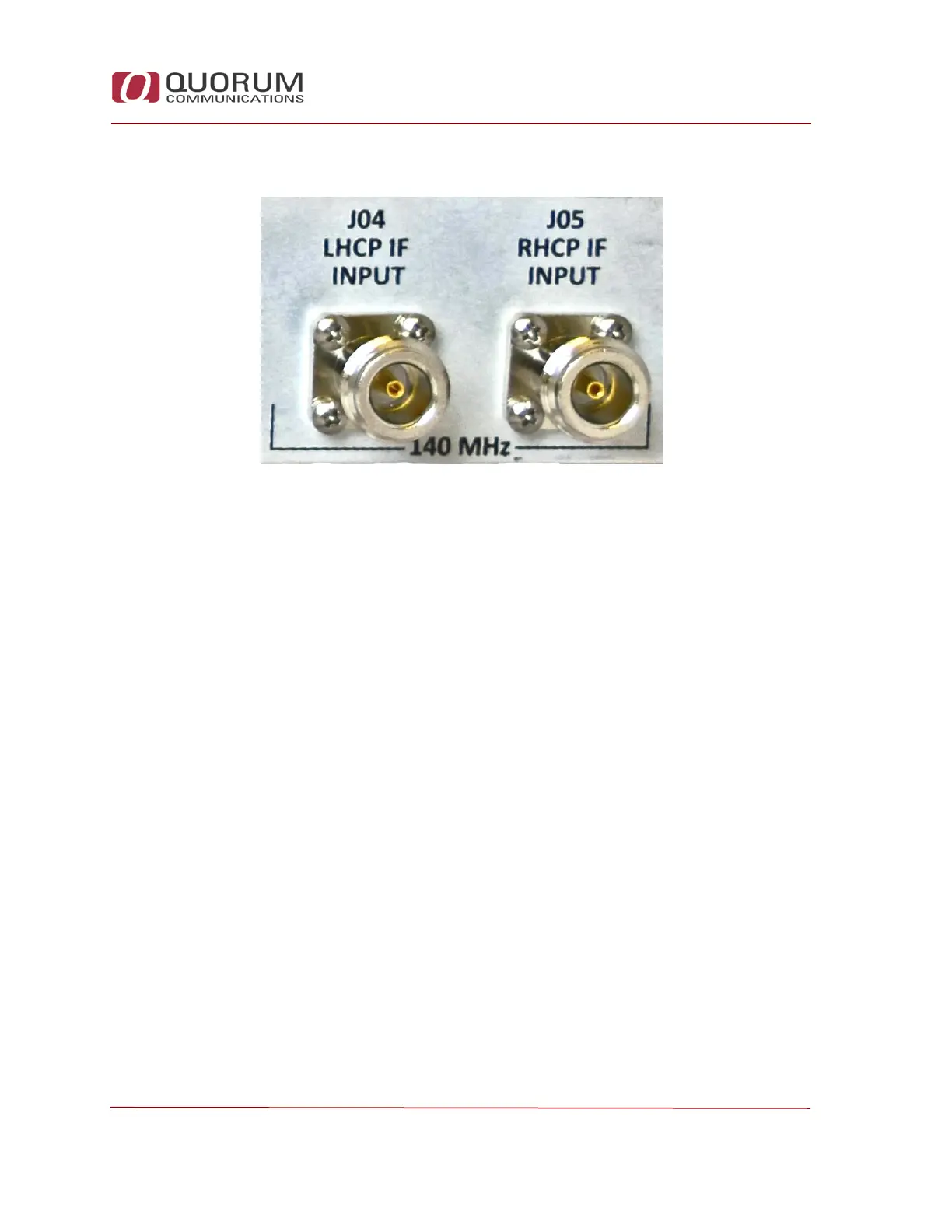

Figure 12 – J04 and J05 IF Input Connections
The Quorum GRB Reception system is provided with pre-cut and terminated
IF cables appropriate for the installation site. Route the supplied cables
between the GRB Feed and the J04 and J05 IF inputs. Be sure to match the
LHCP and RHCP outputs of the feed to the LHCP and RHCP inputs of the
GRB Demodulator. The GRB Demodulator outputs the LHCP and RHCP data
to different UDP ports based on the physical connection to J04 and J05. If
these are swapped, you can tell by looking at the Virtual Channel ID field in
the Transfer Frame Primary Header Field in the transmitted CADU’s.
Reference the GOES-R Product Definition and Users Guide for additional
information.
