5.1.1 Removing the Fuse Holder
1. Locate the two (2) tabs on the fuse holder (see Figure 38).

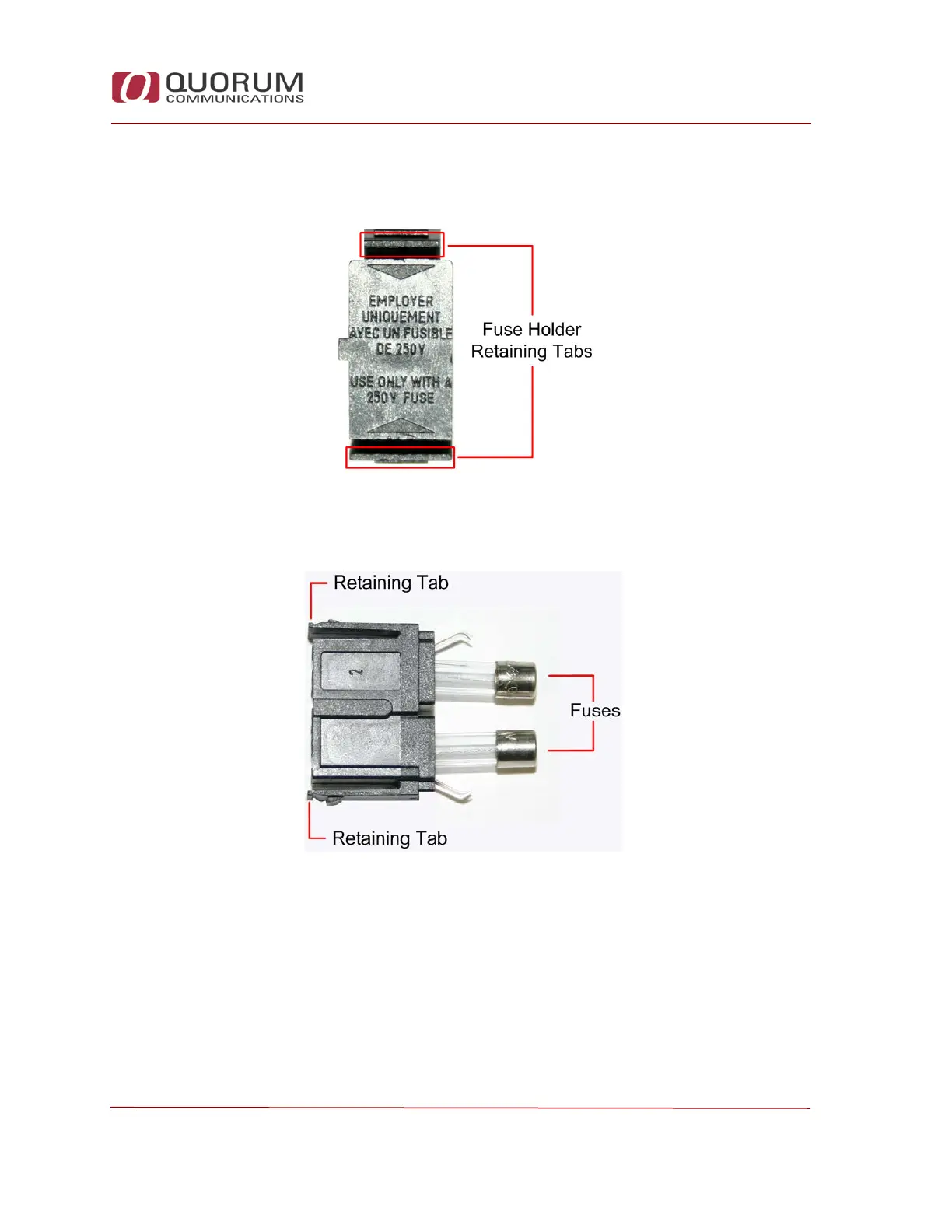

Figure 38 - Fuse Holder Release Tabs
Figure 39 - Fuse Holder Removal
2. Pinch together the retaining tabs and pull the fuse holder from the power
input module (see Figure 39). Remove and replace the fuses.
3. Reinstall fuse holder in the power input module.
