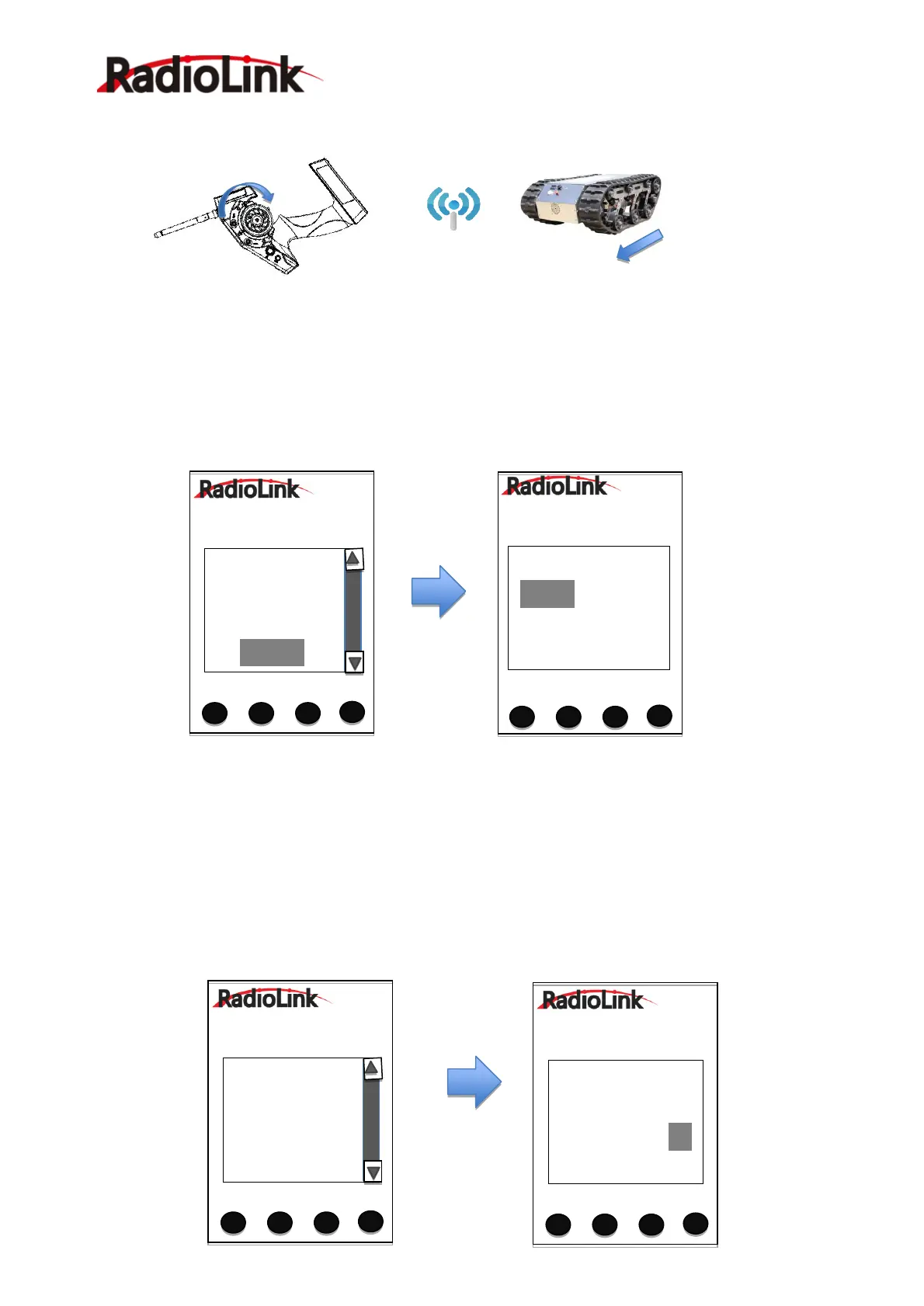

If turning the wheel right and the right track moves backward; Or turning the wheel left and the right track
moves forward, meaning the initial steering is reversed and needs to be set. Please refer to the “button
operation”and get into below interface to complete the setup.
* If the steering reverse is correct, skip this steering reverse setup.
After setting the throttle/ steering reverse, then mix control can be set.
Mix Control Setup
1. Throttle mix steering：Tracked vehicles moving forward/backward
As tracked vehicles moving forward/backward is controlled by throttle, throttle leads steering in the mix control.
That is, Master-Throttle, Slave-Steering. Please refer to the “button operation”and get into below interface to
complete the setup.
* Percentage value varies the speed;
”+”means Master and Slave move to same direction at the same time
Turn the wheel clockwise, the left track moves forward，the right track remains still
6 - Channel
Radio Control System
9. ACCEL
10. IDLUP
11. SUB-TRIM
12. REVESE
Enter
Exit
Dec(-)
Inc(+)
6 - Channel
Radio Control System
13. D/R
14. ATL
15. PMIX01
16. PMIX02
Enter
Exit
Dec(-)
Inc(+)
6 - Channel
Radio Control System
[PMIX01]
MXMD：ON
FWRD: +100% MST：TH
BRAK: +100% SLV：ST
Enter
Exit
Dec(-)
Inc(+)
Enter
Exit
Dec(-)
Inc(+)
6 - Channel
Radio Control System
[REVERSE]
ST : REV CH4:NOR
TH : NOR CH5:NOR
CH3: NOR CH6: NOR

RadioLink RC4GS V2 Specifications

General

Channels	4
Frequency	2.4GHz
Model Memory	10 models
Failsafe	Yes
Gyro Sensitivity Adjustment	Yes
Channel Bandwidth	500KHz
Screen	LCD
Simulator	Yes
Model Type	Car, Boat
Display	LCD
Telemetry	Yes
Range	400m (open area)
Battery	4x AA (not included)
Spread Spectrum	FHSS
Operating Voltage	4.8V to 6.0V
Control Distance	400m
Weight	320g
Receiver	R6FG
Voltage Range	4.8V to 6.0V
Compatible Receivers	R6FG, R6F
Range (open area)	400m
Transmitter Power	Less than 20dBm
