CH3: Channel3(VR)
CH4: Channel4(SWA)
CH5: Channel5(SWB)
CH6: Channel6(SWC)
CH7: Channel7(SWD)
Sub-trim
ST: -100~0~+100
TH: -100~0~+100
CH3: -100~0~+100
CH4: -100~0~+100
CH5: -100~0~+100
CH6: -100~0~+100
CH7: -100~0~+100
Initial value : 0
(1) Enter the function menu and use “Dec(-)”or “Inc(+)” button to access SUBTRIM function.
(2) Press “Enter” button to get into SUBTRIM function interface.
(3) Use “Dec(-)” or “Inc(+)” button to select ST channel, press “Enter”key, and the initial value of ST will blink.
Use “Dec(-)” or “Inc(+)” button to adjust the center.
(Note: In the interface of adjusting the value, return to the initial value "0" by pressing “Dec(-)” and “Inc(+)”
buttons simultaneously for about 1 second.)
(4) Press “Enter” key, the adjusted value stops blinking, now the center of ST has been adjusted.
(5) TH channel and CH3 can be set similarly.
(6) When ending setting, return to the initial screen by pressing “Exit” button twice.
2.13 Channel Reverse "REVERSE"
Servo operation reversing
This function reverses the direction of operation of the servos related to
transmitter steering, throttle, channel 3, channel 4, channel 5, channel 6
and channel 7 operation.
Channel
ST: Steering(CH1)
TH: Throttle(CH2)
CH3:Channel3(VR)
CH4: Channel4(SWA)
CH5: Channel5(SWB)
CH6: Channel6(SWC)
CH7: Channel7(SWD)

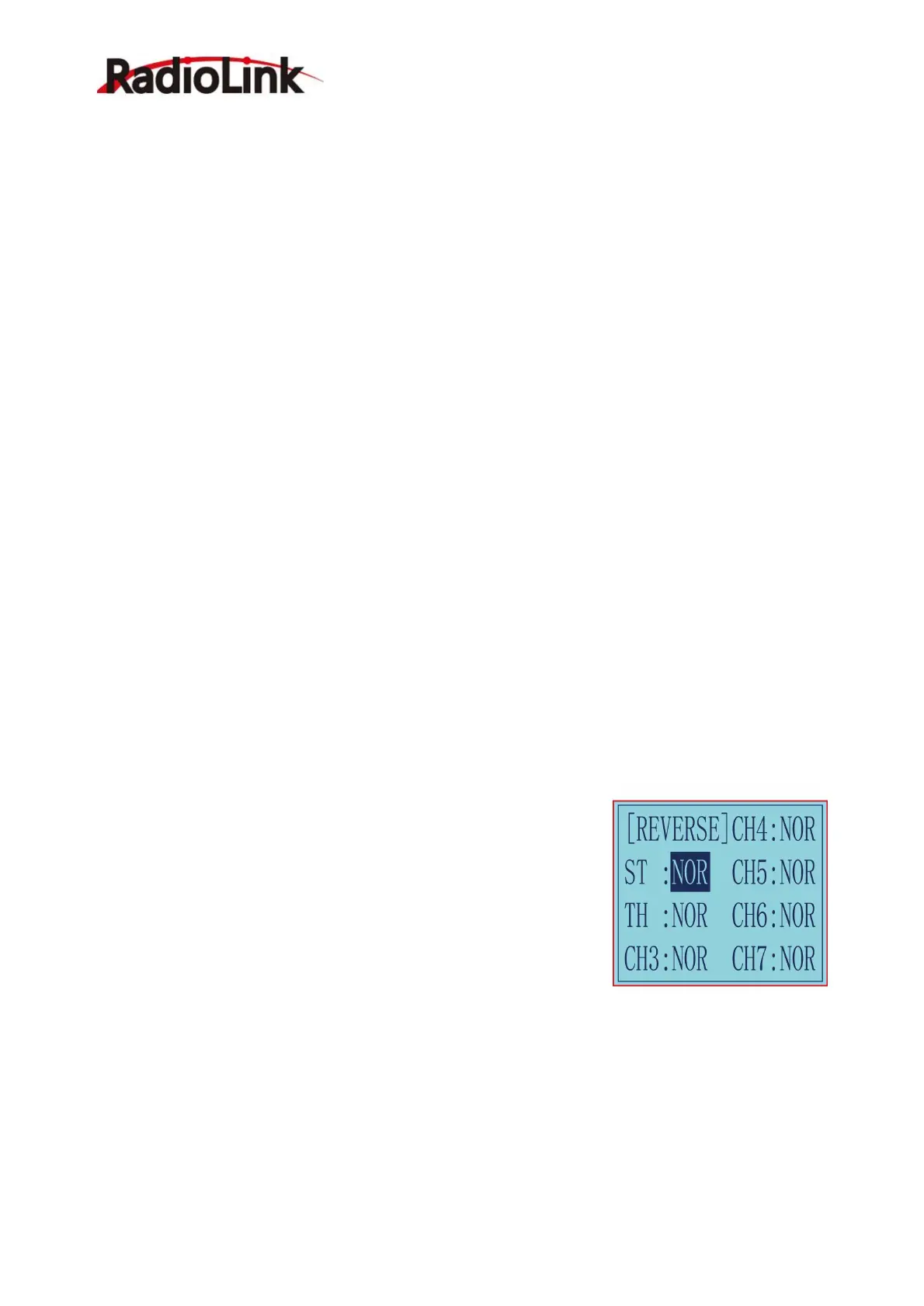

(1) Enter the function menu and use “Dec(-)” or“Inc(+)” button to access REV function.
(2) Press “Enter” button to get into REV function interface.
(3) Use “Dec(-)” or “Inc(+)” button to select ST channel, press “Enter”key, and the “NOR” will blink.
(4) Press “Enter” key, the “NOR” stops blinking, Use “Dec(-)”or“Inc(+)”button to reverse the ST servo
operation direction.
(5) TH channel, CH3, CH4, CH5, CH6 and CH7 can be set similarly.
(6) When ending setting, return to the initial screen by pressing “Exit” button twice.
To Next Page
