RadioLink RC6GS V3 User Manual

RadioLink Electronic Ltd
www.radiolink.com
5
I. RC6GS V3 Remote Control System
RC6GS V3, 12ms response only from transmitter to the receiver, thus provide synchronous control and
perfect performance .
The same FHSS spread spectrum and 67 channels pseudo random frequency sequence hopping of AT9S
Pro makes RC6GS V3 have superior anti-interference ability both at the same frequency band and different
frequency bands. Control distance is up to 600 meters.

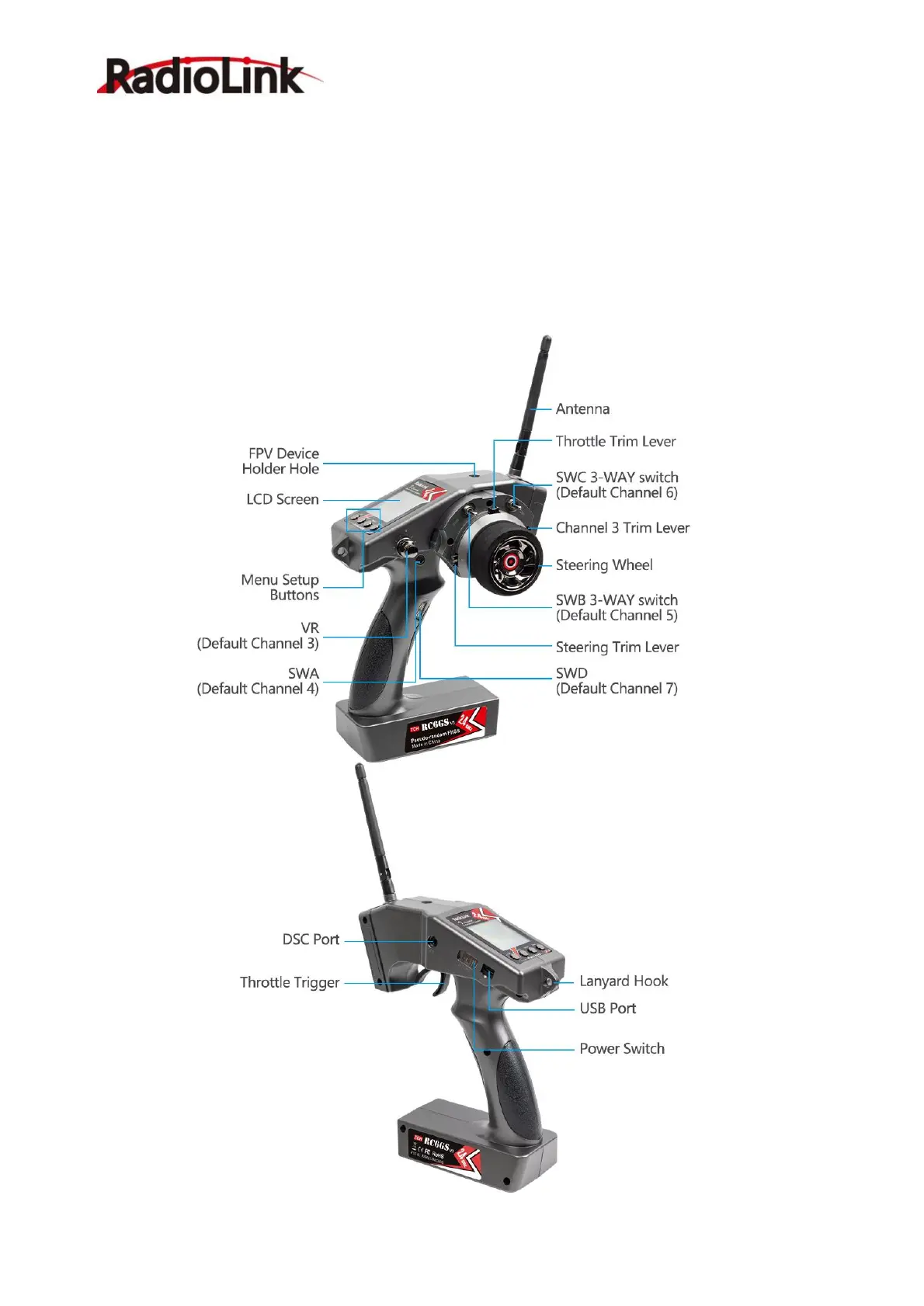

1.1 Transmitter

RadioLink RC6GS V3 Specifications

General

Channels	6
Telemetry	Yes
Channel Bandwidth	400KHz
Spreading Spectrum	DSSS
Screen	128*64 LCD
Antenna Length	106mm
Display	LCD
Frequency	2.4GHz
Range	Up to 600 meters
Power Supply	4x AA batteries or 2S LiPo
Operating Voltage	4.8V to 15V
Control Distance	600m (in open area)
Receiver	R7FG
Simulator	Yes
Battery	4x AA batteries or 2S LiPo
Adjacent Channel Rejection	≥36dBM
