* This function is currently available on Android APP V7.1 and above.
3.3.4.1 PROG.MIX
Programmable mixing controls are to
1 Diversify attitude changes of aircraft (e.g. Rolling to realize when rudder is commanded);
2 Control a certain axis with two or more servos (e.g. 2 rudder servos);
3 Correct special movement automatically (e.g. Lower FLAP and ELEVATOR servos at the same time);
4 Control the second channel to respond to the movement of the first channel (e.g. Increase smoke oil
to respond to high speed, but only when the smoke switch is activated).;
5 Turn off the main control under certain circumstances (e.g. For dual-engine aircraft, turn off a motor or
speed up/down one motor to assist rudder to turn)
Adjustability: Channel 1 to 8 can be personalized to mix.
MAS: Master channel. Other channels need to cooperate with movements of the master channels.
SLA: Slave channel. Many mix controls are controlled by one master channel.
E.g. Rudder-Aileron mix control with Master as rudder while Slave as aileron and OFFS as 0 and UP as 25% to
correct rolling. No switch is needed.
THROTTLE CUT Setup
This function is achievable with T8FB programmable mix controls setting.
In SYSTEM Menu, turn on the Mix Control, set Master as CH1 while Slave as CH8 with the OFFS value as
-100. Then in ADVANCED Menu, turn on the D/R MIX function, set CH as CH3 and the DOWN value as 0.
Then toggle the CH8 Toggle-Switch to the right most and the setting is complete.
* There are totally 4 mixing controls on Android APP V7.1 and above while 2 mixing controls on Apple APP.

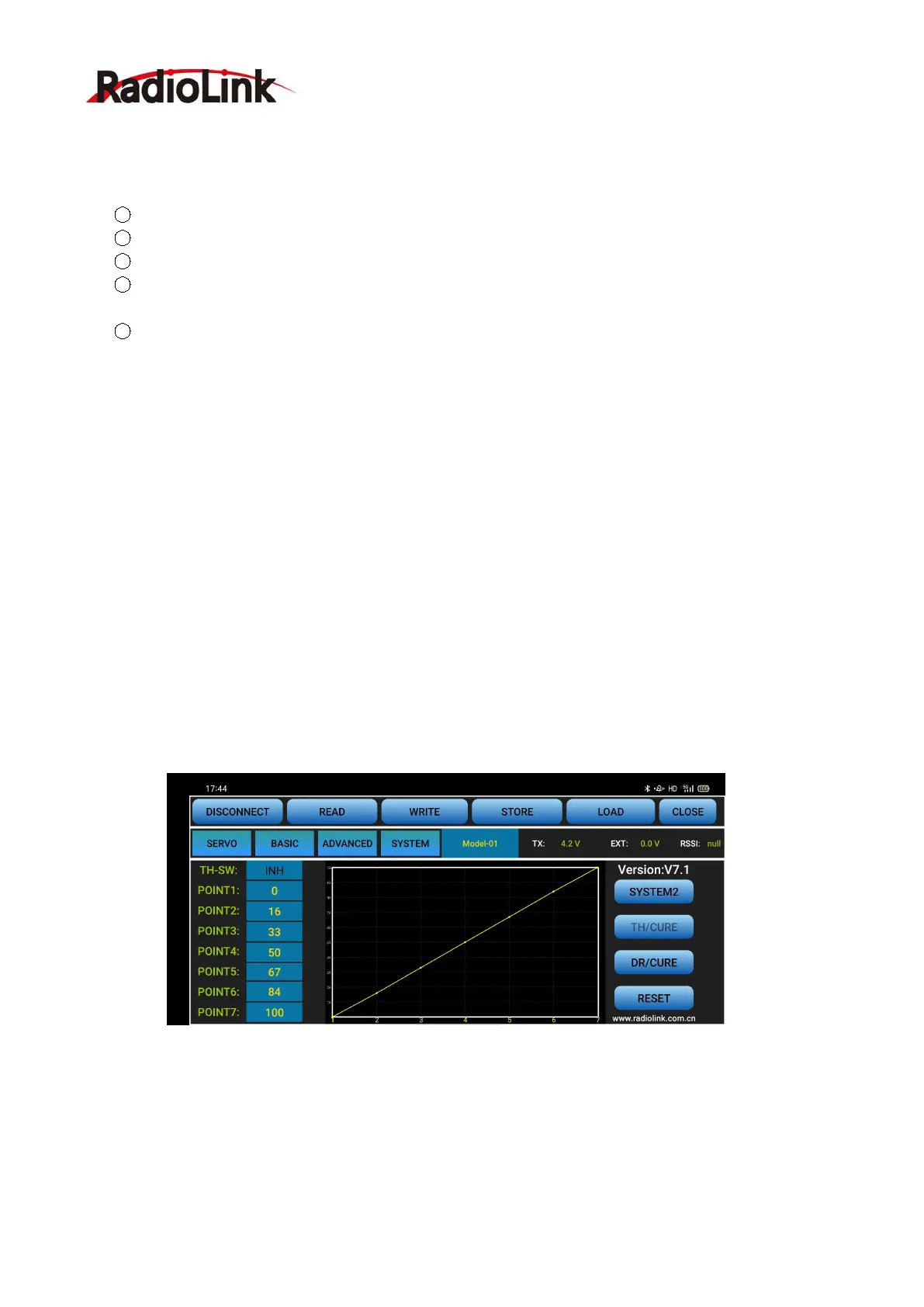

3.3.4.2 TH/CURE
Throttle curve is the set output travel by throttle. It is to coordinate the motor response and the throttle
operation. The horizontal ordinate is the joystick position while the vertical ordinate is the throttle output.
* This menu is currently available on Android APP V7.1 and above.
3.3.4.3 DR/CURE
Dual rate curve is the function to switch from different servo travels to achieve different controls. For example,
aeroplane requires different maximum servo travels for different flight status, pilots can use this function to
switch from different servo angles.
* This menu is currently available on Android APP V7.1 and above.
