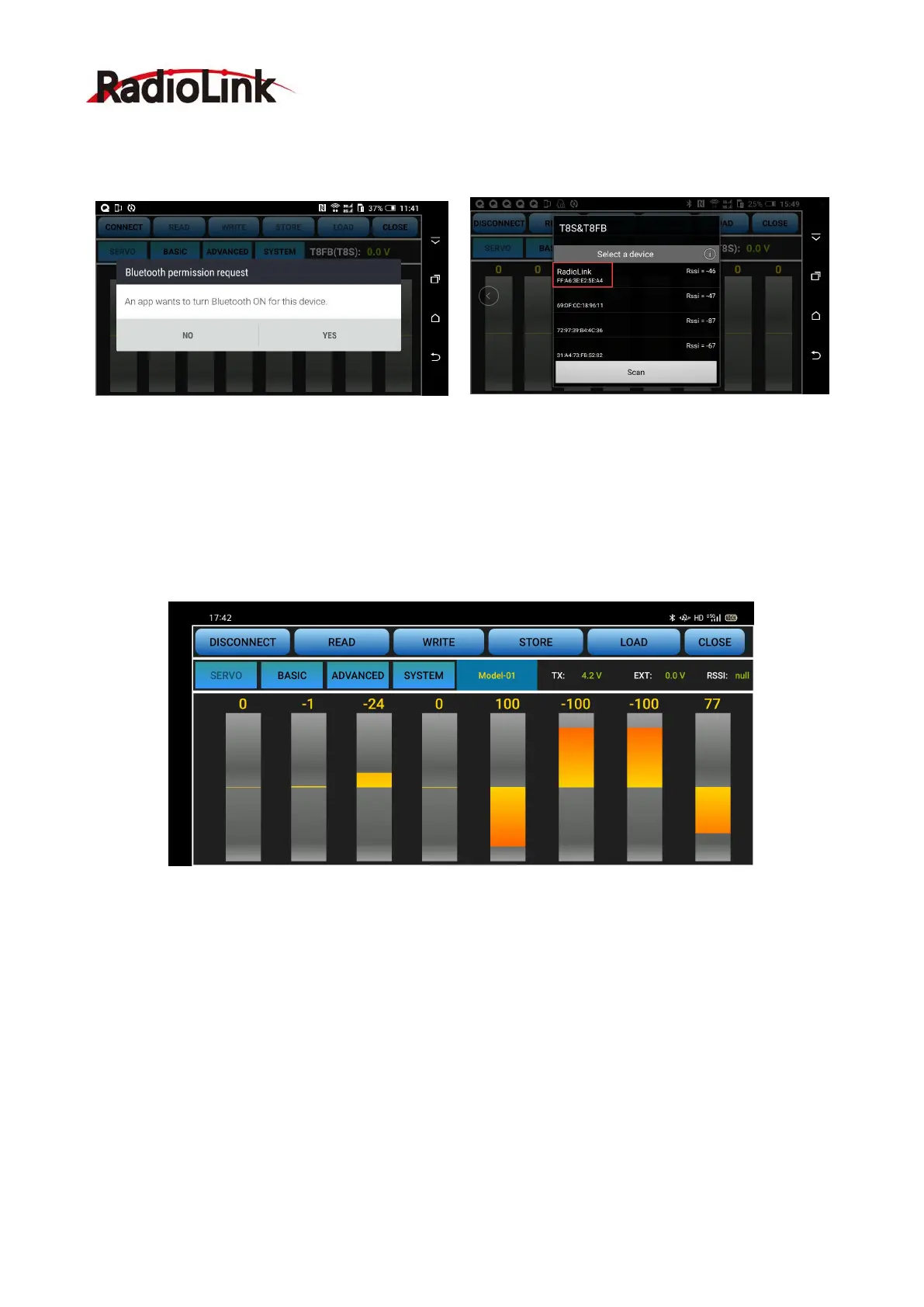

3) Click CONNECT on the top left of the parameter setup interface, a list of devices will pop out for selection.
4) Select RadioLink device, the two LED indicators at rightmost will flash with DD sounds.
5) Press any of the trimmer buttons to stop the DD sounds and the servo range will display on the APP,
meaning connection between the APP and T8FB succeed.
* If fail, please repeat the above steps to try again.
3.3 Parameters Setup Menu
Parameters setup of both Android APP and Apple APP are the same as below:
There are 6 function keys on the top of the parameter setup interface.
(DIS)CONNECT: When APP is opened on the mobile and T8FB is powered on, click CONNECT and a list of
Bluetooth devices will pop out and select the RadioLink device to make connection. The two leds at the
rightmost will flash in turn with DD sounds, press any of the trimmer buttons to stop the DD sounds and the
servo range will display on the APP. If fails, press DISCONNECT and CONNECT again.
READ: Click READ, two short D sounds will be heard and the APP starts reading the data in T8FB. The current
data of the T8FB won’t display on the APP until clicking READ.
WRITE: Click to update the changed data into the T8FB and two slow D sounds mean the modified data have
been written in T8FB. If no D sound means update failure, please reconnect T8FB to the App and re-write.
Click WRITE each time parameter is modified to make sure it’s well input to the T8FB.
STORE: Click to save the APP data as a file in the mobile.
LOAD: Click LOAD and a pop out of ‘Model Select’ will display and user can either create a new file or select
among the saved files.
CLOSE: Click CLOSE to exit.
