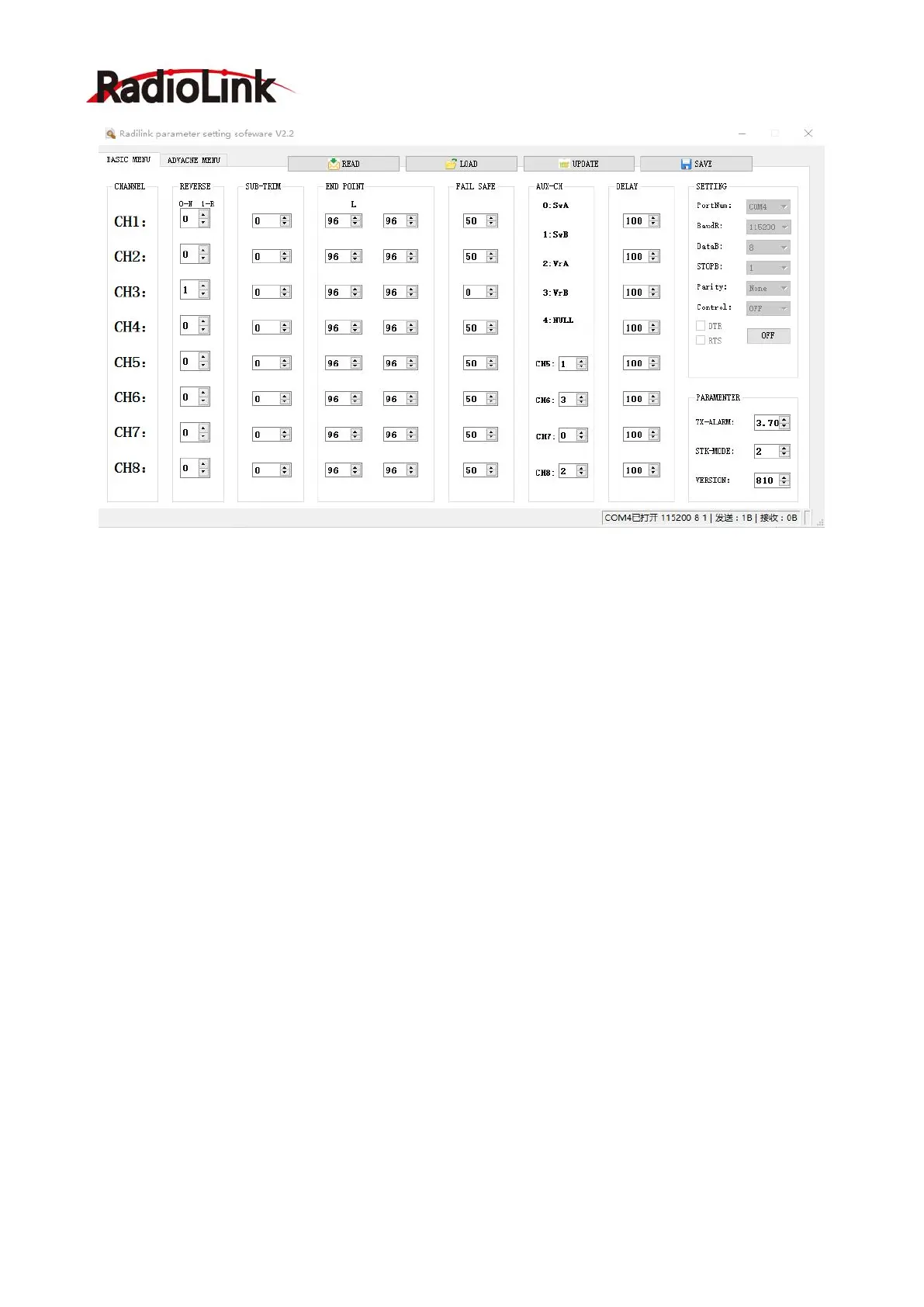

REVERSE: Defines the relationship between the transmitter controls and the receiver output for channels with
option of NORM and REV. Refer to 3.3.2-REV (P7) for more details.
SUB-TRIM: Makes small changes or corrections to the neutral position of each servo. Refer to 3.3.2-SUB (P8)
for more details.
END POINT: Sets the range of each channel (in percentage);
The most flexible version of travel adjustment is available. It independently adjusts each end of each individual
servo’s travel, rather than one setting for the servo affecting both directions. Refer to 3.3.2-EPA-L &EPA-R (P8)
for more details.
FAIL SAFE: Sets responsive action of model in case of signal loss or low Rx voltage (in percentage).
Refer to 3.3.2-F/S (P8) for more details.
AUX-CH: Defines the relationship between the transmitter controls and the receiver output for channels 5-8.
Refer to 3.3.4(P10) for more details.
DELAY: Adjust the ratio between the position of servos and the actual operation. Refer to 3.3.2-DELAY (P8) for
more details.
TX-ALARM: The default low voltage value is automatically set according to the battery used(2S-7.3V/3S-11.0V)
and also can be personalized as well. When the transmitter voltage is lower than the value set, T8FB will make
D sound to warn.
STK-MODE
It’s always the default mode of the T8FB with data READ by the APP.
Mode 1: left joystick-Rudder and Elevator; right joystick-Aileron and Throttle
Mode 2: left joystick-Rudder and Throttle, right joystick-Aileron and Elevator
Mode 3: left joystick-Aileron and Elevator, right joystick-Rudder and Throttle
Mode 4: left joystick- Aileron and Throttle, right joystick-Rudder and Elevator
VERSION
The numbers mean different firmware versions which can be upgraded. The detailed steps of firmware
upgrade please refer to Chapter 2.
