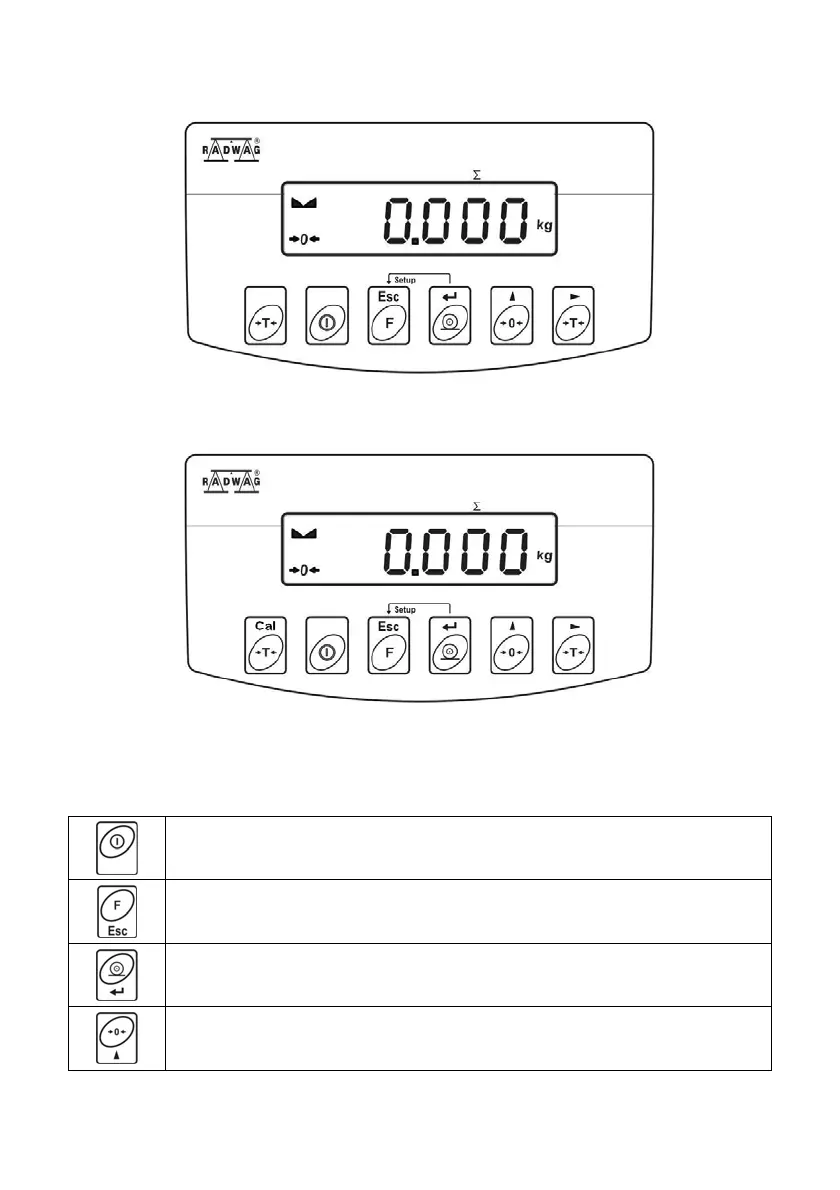

8. OPERATION PANEL

Operation panel of WLC/A2 precision scale

Operation panel of WLC/A1/C/2, WLC/A2/C/2 precision scales

9. KEYS

Press to switch the weighing device on/off – hold the key for about

1 second.

Function key, press to change the working mode.

Press to send the weighing result to a printer or computer.

Press to zero the scale.

Default Chapter3
- Table of Contents3
1 General Information5
2 Precautions5
- Operation5
- Battery Power Supply5
- Operation under Conditions Difficult Due to Electrostatics6
3 Warranty Conditions6
4 Design7
- Dimensions7
- Connectors Arrangement8
- Pins Overview8
5 Unpacking and Installation9
- Under-Pan Weighing9
6 Start-Up and Operation10
- Levelling10
- Connecting the Scale to the Mains10
- Warm-Up Time11
- Battery Charge Status11
- Battery Charge Status Check12
7 Maintenance Activities12
- Cleaning ABS Components12
- Cleaning Glass Components12
- Cleaning Stainless Steel Components13
- Cleaning Powder-Coated Components13
- Cleaning Aluminium Components13
8 Operation Panel14
9 Keys14
10 Program Structure15
- Function Groups15
- Operating the Menu16
- Return to the Weighing Mode16
11 Weighing Operation16
- Good Weighing Practice17
- Zeroing17
- Taring18
- Entering Tare Value Manually18
- Dual Range Devices18
- Units19
  - Start Unit19
  - Temporary Unit20
12 Adjustment20
- External Adjustment21
- User Adjustment22
- Manual Internal Adjustment22
- Automatic Internal Adjustment23
- Automatic Internal Adjustment Time24
- Adjustment Test24
- Adjustment Report25
13 Scale Parameters25
- Filter25
- Value Release25
- Ambient Conditions26
- Autozero Function26
- Tare Function26
- Tare: Enter Mode27
- Tare: Values Memory27
  - Entering Tare Value to the Weighing Device Memory27
  - Selecting Tare Value from the Weighing Device Memory28
- Last Digit28
14 Communication29
- RS232 (1) Port Settings29
- RS232 (2) Port Settings29
- USB a Port29
- USB B Port30
15 Peripheral Devices32
- Computer32
- Printer33
  - Printer Port33
- Additional Display33
  - Additional Display Port34
16 Printouts34
- Adjustment Report34
- GLP Printout35
17 Miscellaneous Parameters36
- Backlight36
- Beep' Sound36
- Automatic Shutdown36
- Date and Time37
- Default User Settings37
18 Scale Data38
19 WORKING MODES - General Information38
- Running Working Mode38
- Working Modes Local Settings39
20 Working Mode - Weighing41
- Local Settings41
21 Working Mode - Parts Counting41
- Selecting Operation Mode41
- Setting Sample Mass by Entering Mass of a Single Part42
- Setting Sample Mass by Determining Mass of a Single Part42
22 Working Mode - +/- Control43
- Local Settings43
- Declaring Checkweighing Thresholds43
23 Working Mode - Percent Weighing44
- Local Settings44
  - Selecting Operation Mode44
- Reference Sample Mass Determined by Weighing45
- Reference Sample Mass Determined by Entering the Mass Value45
24 Working Mode - Peak Hold45
- Local Settings45
- Peak Hold Operation46
25 Working Mode - Totalizing46
- Local Settings46
- Totalizing Operation46
26 Working Mode - Animal Weighing47
- Local Settings48
- Animal Weighing Operation48
27 Import / Export48
- Weighing Records Export49
- ALIBI Weighings Export49
- Parameters Export / Import49
28 Inputs / Outputs50
- Inputs / Outputs Parameters50
- Inputs Setup50
- Outputs Setup51
29 Diagrams of Connection Cables52
30 Troubleshooting53
31 Error Messages53
