RADWIN 5000 HPMP User Manual
Release 3.1.00
1-3
RADWIN 5000 HPMP Components
Chapter 1
RADWIN 5000 HPMP Components
RADWIN 5000 HBS High Capacity Base Station
The HBS consists of RADWIN 5000 HBS BS ODU, a sector dual-
pole antenna and a PoE device, which provides a LAN interface to
user equipment.
A single HBS supports up to 16 HSUs.

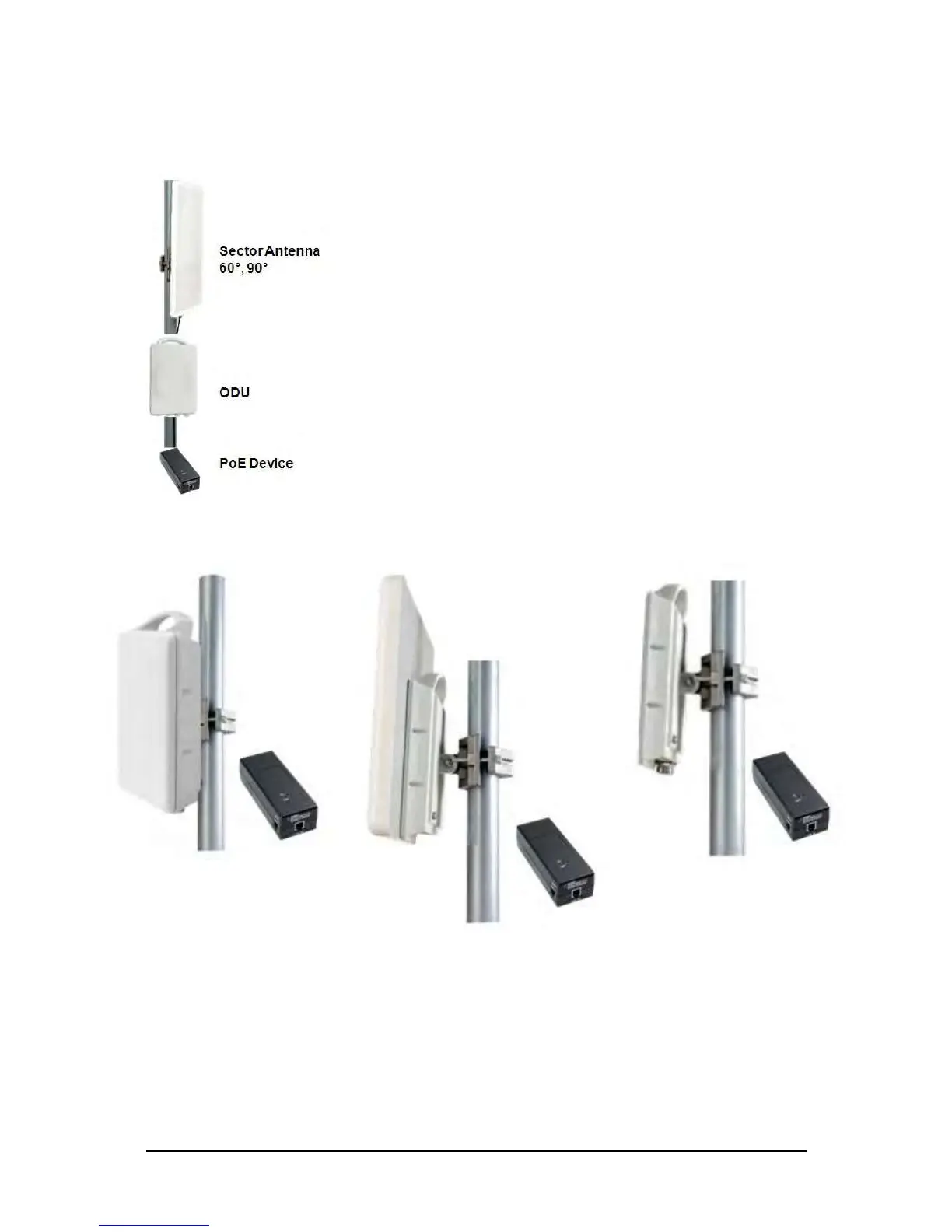

Figure 1-1: Single Sector Base Station
RADWIN 55xx HSU High Capacity Subscriber Units
Figure 1-2: Small form factor Figure 1-3: High gain integrated Figure1-4:ConnectorizedODU
antenna in connectorized ODUantenna
An HSU consists of a RADWIN 55xx HSU ODU. It may be a small form factor (SFF) model with
a built in antenna, or a regular integrated or connectorized unit. The latter should use a dual
pole antenna for best performance.
