HBS Main Window
Chapter 4
HBS Main Window

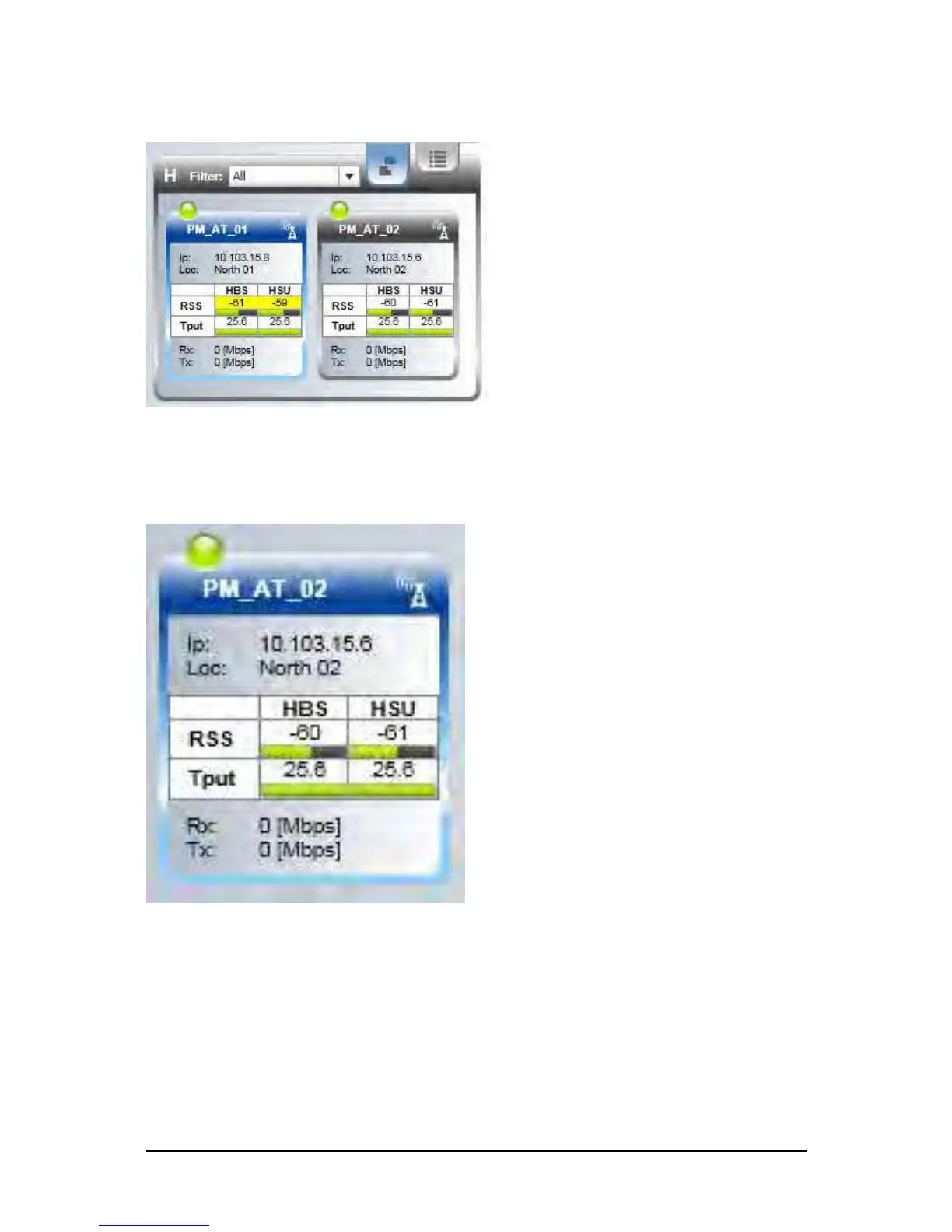

Figure 4-13: HBS Main Window (Reduced) - up to 16 HSUs
Colored fields indicate a problem requiring your attention.The if you mouse-over the colored
RSS area. you will receive a tool tip telling you that RSS for Radio 1 is higher than for Radio 2,
or something similar.
Figure 4-14: HSU display - detail
