2. Check that you have connectivity to the HBS ODU. You can do this by opening up a
command line session (Start|Run and then type, cmd). At the command prompt,
type
ping 10.103.15.7
You should see something like this:

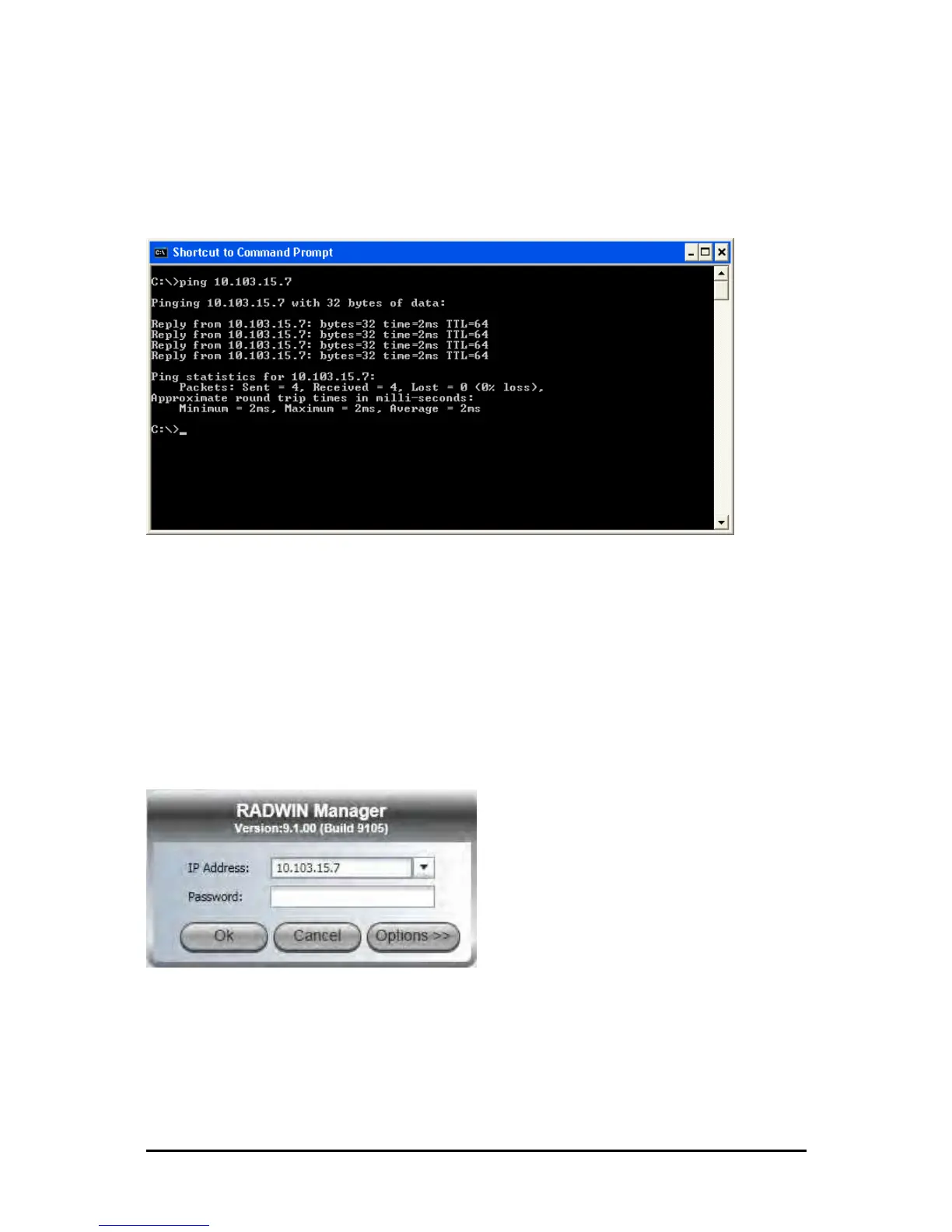

Figure 4-1: Pinging the base station.
Any other response from ping means that the HBS ODU is not responding. Check
your Ethernet connection and that both the PoE and ODU are switched on and then
try again. If you do not succeed, seek assistance from RADWIN Customer Support.
Pinging the HSUs should yield similar responses.
3. Dismiss the command line session.
4. Open the RADWIN Manager from the desktop icon, or click Start|Programs|RAD-
WIN Manager|RADWIN Manager.
The Log-on dialog box appears.
Figure 4-2: Log-on window
The RADWIN Manager log-on Concept
The RADWIN Manager provides three levels of access in one of two entry modes. To see
them, click Options at any time in the Log on window (Figure 4-2 above). You are offered
an extended log-on window:
