Radwin RW-5200-0250 - Figure 9-3 Grounding a Typical Wall Installation

RADWIN 5000 HPMP User Manual
Release 3.1.00
9-5
External Lightning Surge Suppressors and Grounding
Chapter 9

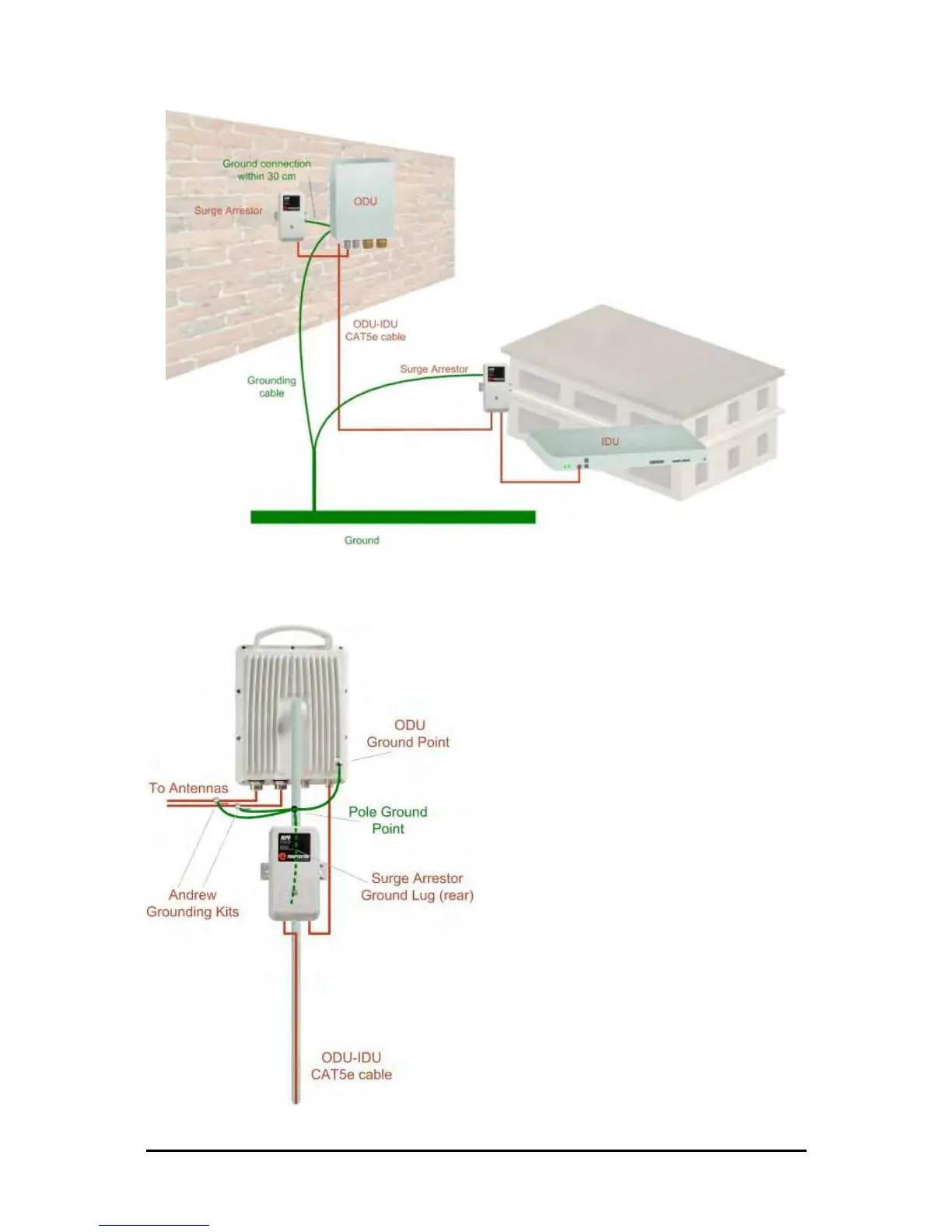

Figure 9-3: Grounding a typical wall installation
The next figure shows a close-up of the rear of grounded ODU:
Figure 9-4: ODU Surge Suppressor and grounding
