RADWIN 5000 HPMP User Manual
Release 3.1.00
7-10
Sector Configuration and HSS
Chapter 7

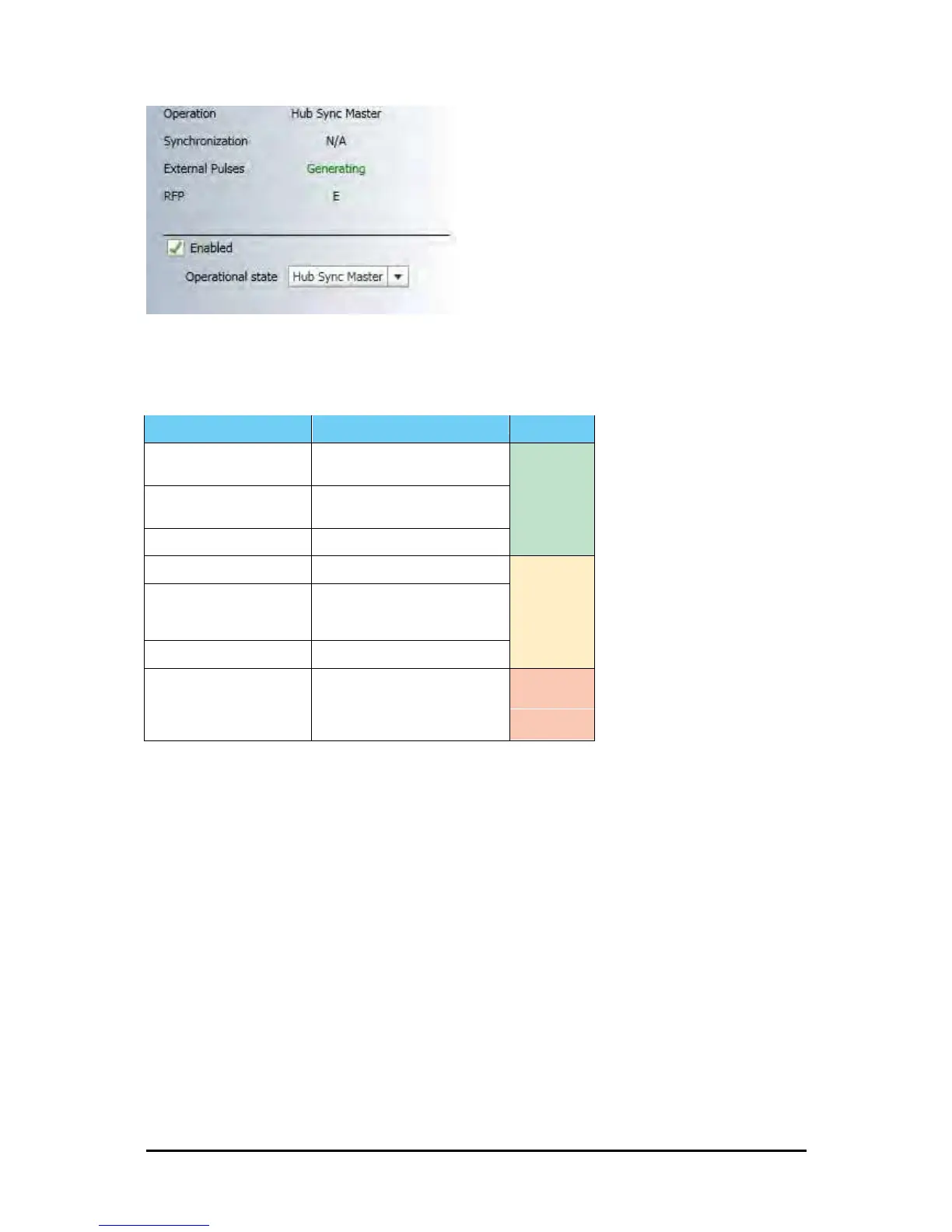

Figure 7-12: HBS as HSM
The possible External Pulses conditions are shown in the following table:
Table 7-5: External Pulse Status
HSS Sync Status
Meaning
Color code
Generating
ODU is HSM and generates the
sync pulse
Green
Detected
ODU is HSC and detects the
sync pulse
Not detected
ODU is independent
Generating and detected
HSM, but other HSM present
Orange
Generating and
Improperly Detected
RADWIN 2000 ODU is HSM,
but detects a WinLink 1000
HSM signal that is not RFP E
Not detected
HSC but no HSM present
Improperly detected
HSC but HSM pulse doesn’t fit
the HSC as configured. Occurs
only for RADWIN 2000, which
stops transmitting.
Red
