RADWIN 5000 HPMP User Manual
Release 3.1.00
4-9
Base Station Panel
Chapter 4

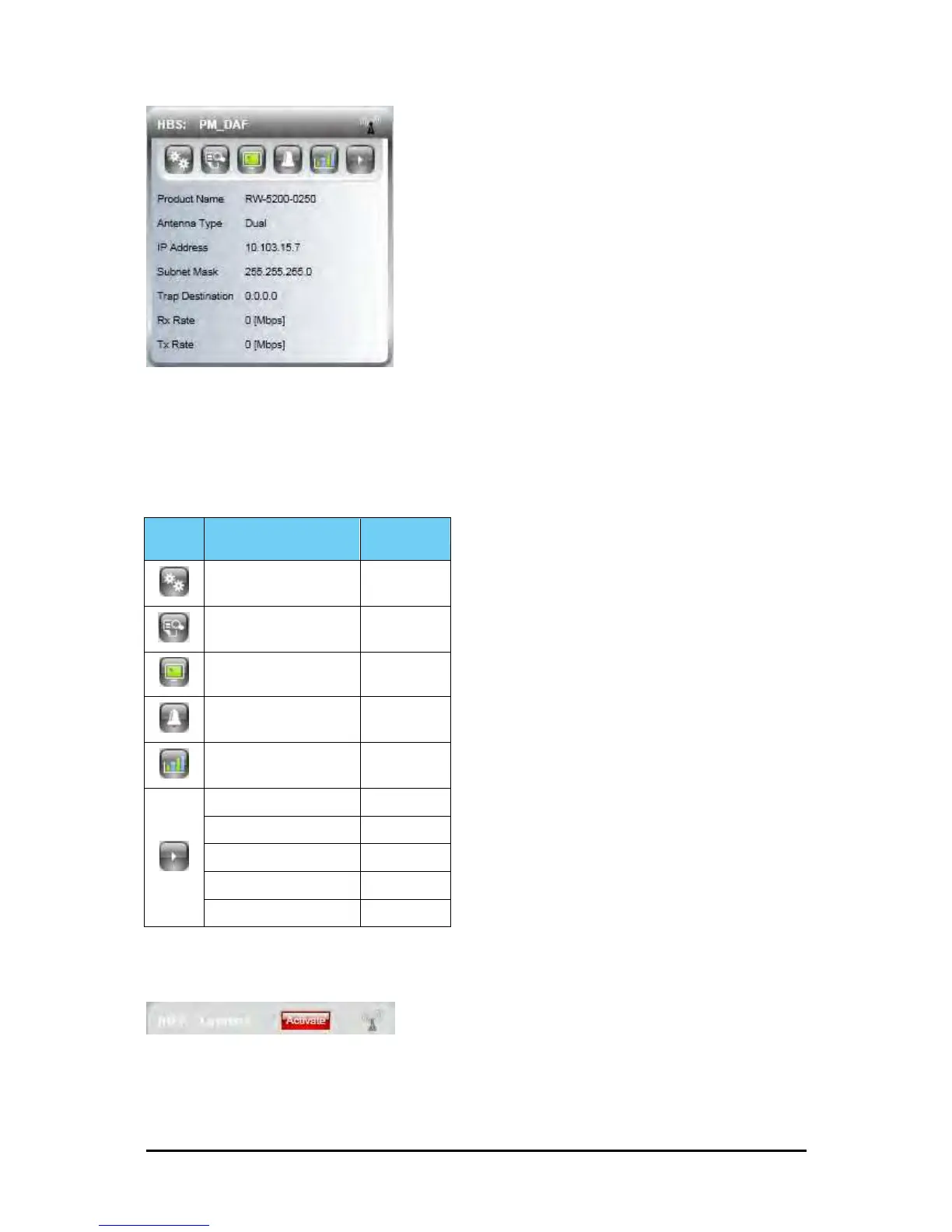

Figure 4-11: Base Station detail Panel
The Rx and Tx rates are the traffic receive and transmit rates through the HBS ODU under
load.
The button bar provides the necessary functionality to configure and manage the HBS.
Table 4-5: HBS Detail Panel button bar functions
Menu
Icon
Purpose
Reference
HBS Configuration
page 6-1
Recent Events Log
Performance Monitor
Reserved
Reserved
Estimated Throughput
Change Band
SU Connection Table
Reset
Deactivate
The foregoing description relates to an activated HBS. The Detail Panel title bar for an inacti-
vate HBS looks like this:
Clicking the Activate button initiates an activation Wizard. The Activate button in the title bar
is hidden, leaving it looking like this:
