RADWIN 5000 HPMP User Manual
Release 3.1.00
6-10
HSU Connection Table
Chapter 6

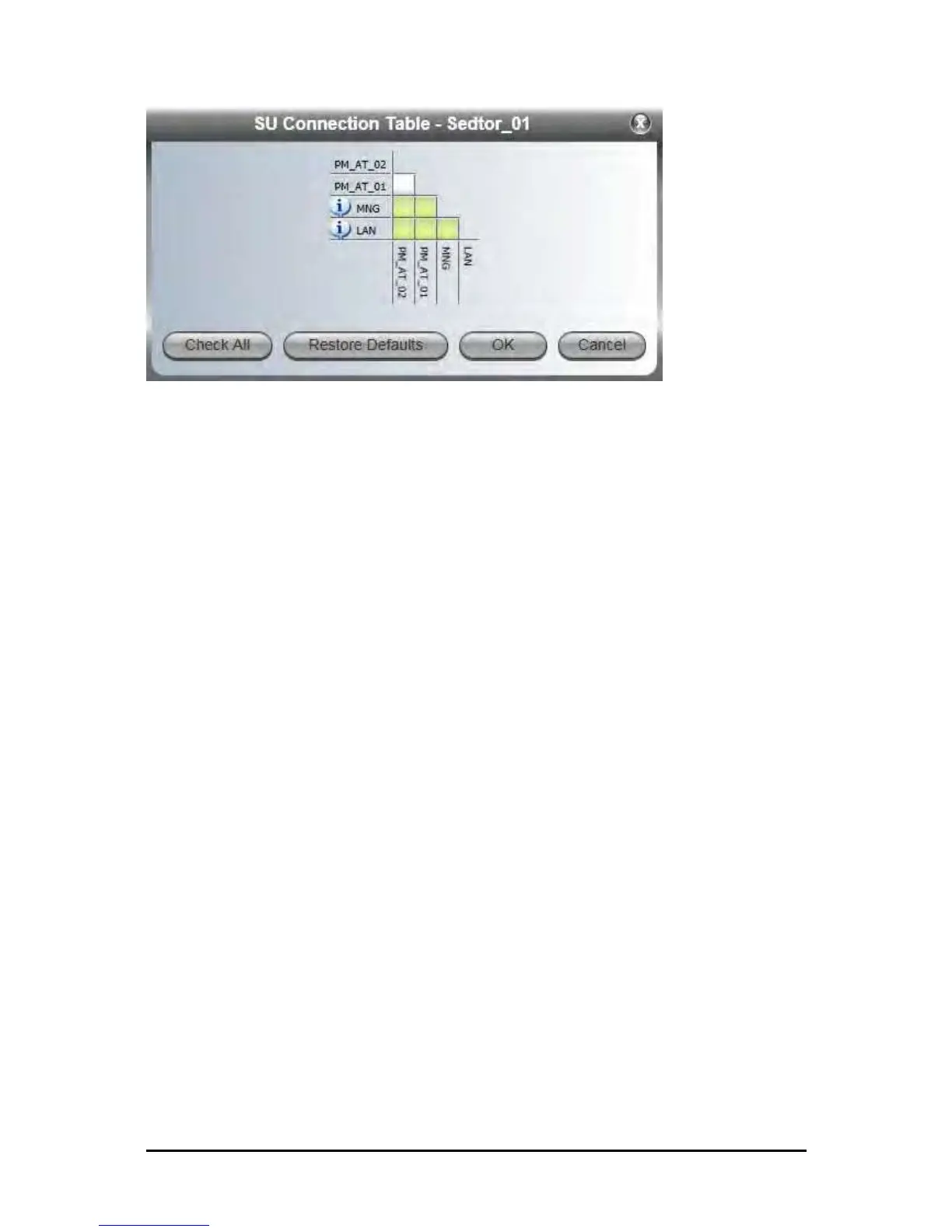

Figure 6-1: HSU Intercommunication
The green shaded squares show intercommunicating elements within the sector. MNG refers
to management traffic which should always be open between HSUs and the HBS. LAN refers
to service traffic between the HBS and the HSUs. As shown, the two HSUs may not communi-
cate between themselves. Clicking the top white square would enable communication (via the
HBS) between them.
You may in fact disable all traffic between the HBS and the HSUs and restore it using this
device.
