3D PRINTER MANUAL- RAISE3D PRO2 SERIES
- 9-
www.raise3d.com

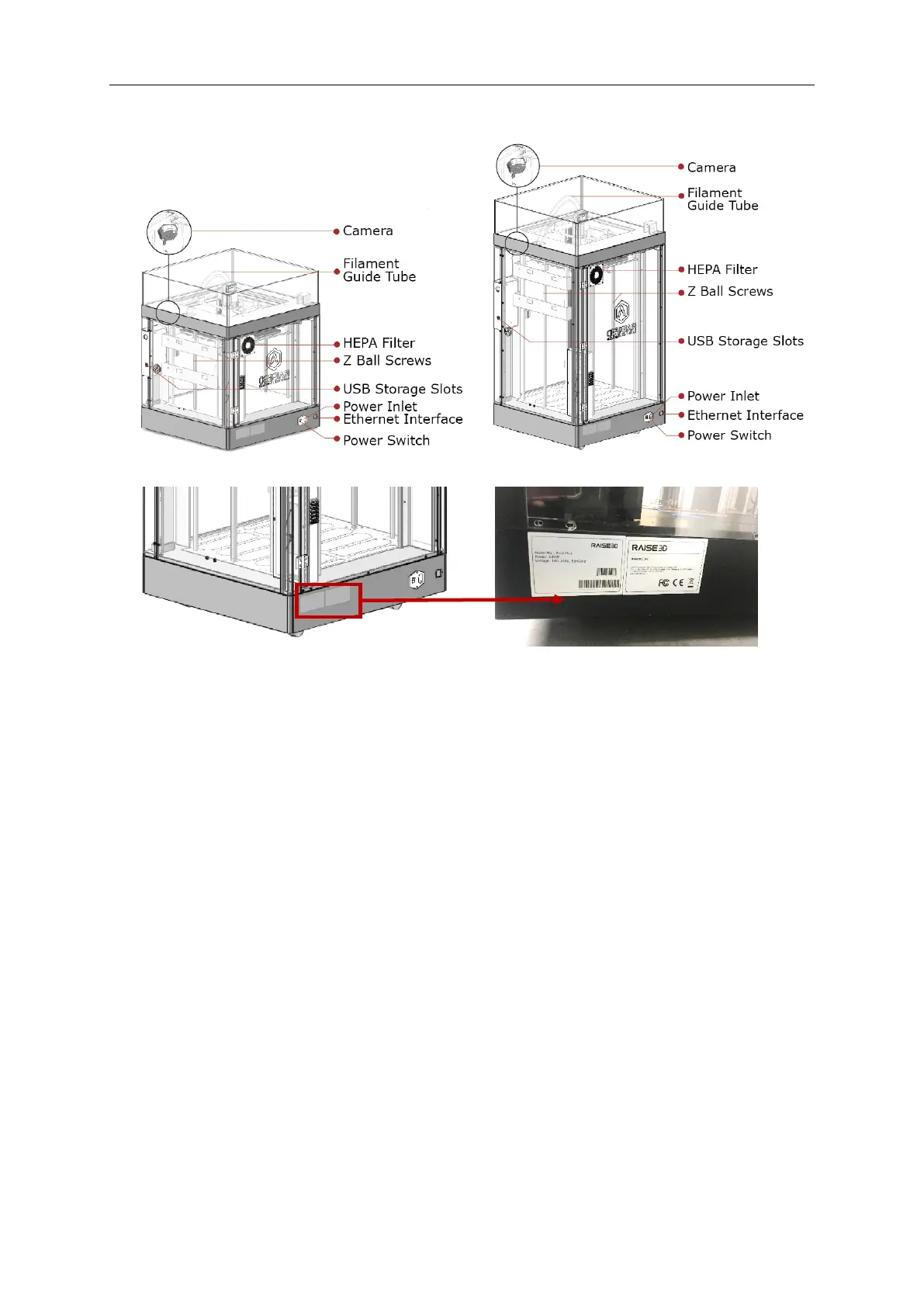

2. Rear Parts
A. Camera-
Remotely monitors the printing process.
B. Filament guide tube-
Tubing that protects filament material by minimizing bending and friction.
C. HEPA filter-
Designed to improve air quality on exhaust and reduce odor from filaments.
D. Z ball screws
Threaded rods that drive Z stage’s movement.
Note: the nuts and bolts around the ball screws are loose by design
E. USB storage slots
F. Power inlet and Power switch
That is the power supply unit.
A 250V 10A fuse is located to protect the input power.
3. Bottom Parts.
