Raisecom RC3000E User Manual

Raisecom
RC3000E (P100R001) Product Description
4 Cards
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
38

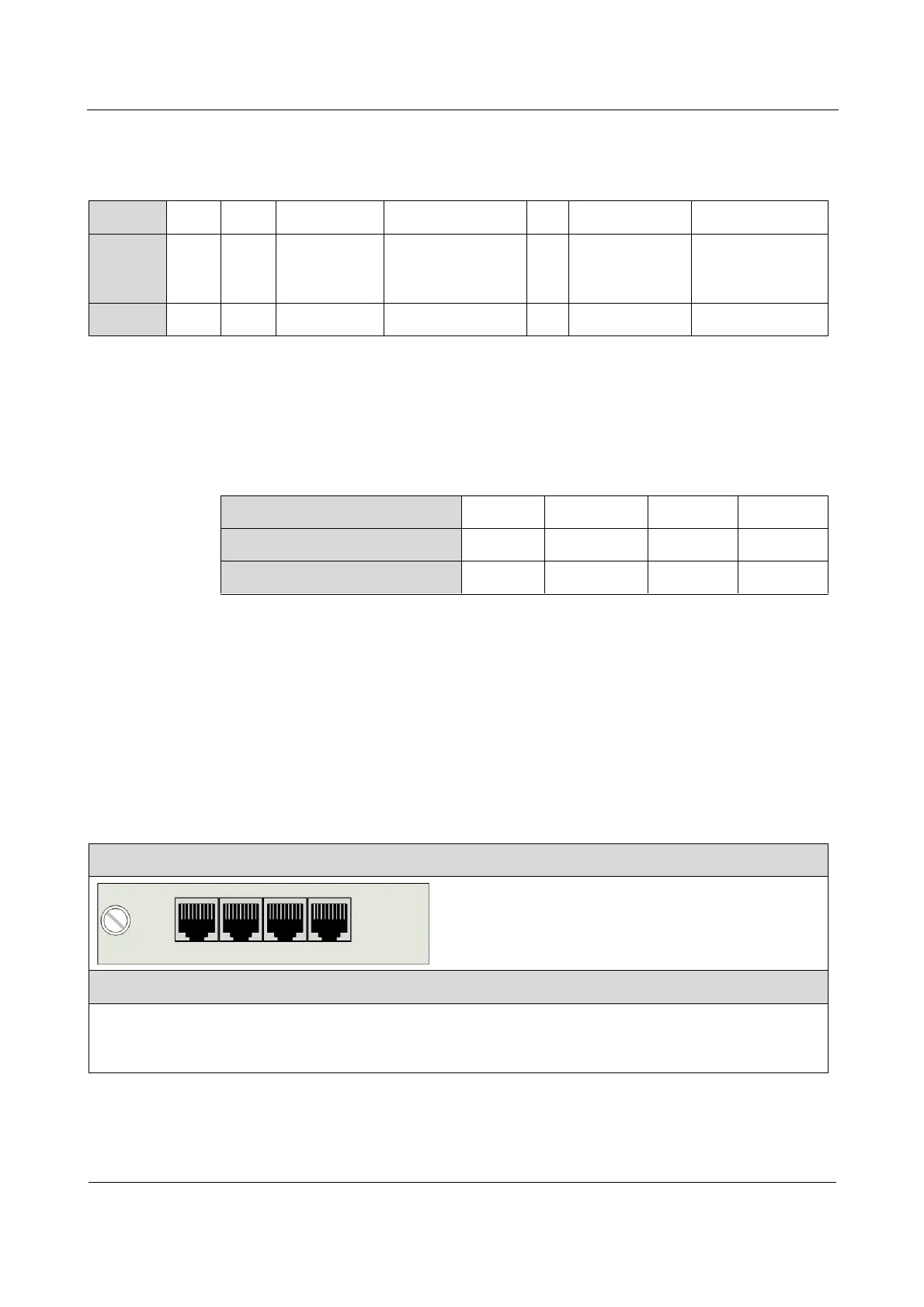

Table 4-10 lists the connection methods of the RJ45 interface and the RC3000-SUB-DV24.
Table 4-10 Connection methods of the RJ45 interface and the RC3000-SUB-DV24
DB25
3
2
1 and 7
6, 8, and 20
24
15 and 17
4 and 5
Signal
name
RX
data
TX
data
SGND and
PGND
Handshaking
signals (internally
connected)
TC
RC ( internally
connected)
Handshaking
signals (internally
connected)
RJ45
3
2
1 and 4
–
6
7
–
4.9.4 Timeslot rules
Table 4-11 lists the timeslot rules.
Table 4-11 Timeslot rules
Channel No.
1
2
3
4
Occupied channel No. (64K)
1
3
5
7
Occupied channel No. (128K)
1 and 2
3 and 4
5 and 6
7 and 8
4.9.5 Technical specifications
Dimensions: 70 mm (Width) × 167.5 mm (Depth) × 20 mm (Height)
4.10 RC3000-SUB-D232
4.10.1 Appearance and functions
Panel
Function
The RC3000-SUB-D232 is the standard RS232 interface card on the RC3000E.

Provide 8 channels, the number of which depends on the hardware and cannot be changed.

Provide 4 RJ45 interfaces, each of which corresponds to 2 channel interfaces.
