When the RC3000E works as a CO device, it does not save configurations of the
remote device. To save configurations, use the sync-config command and then the
write command on the remote device.

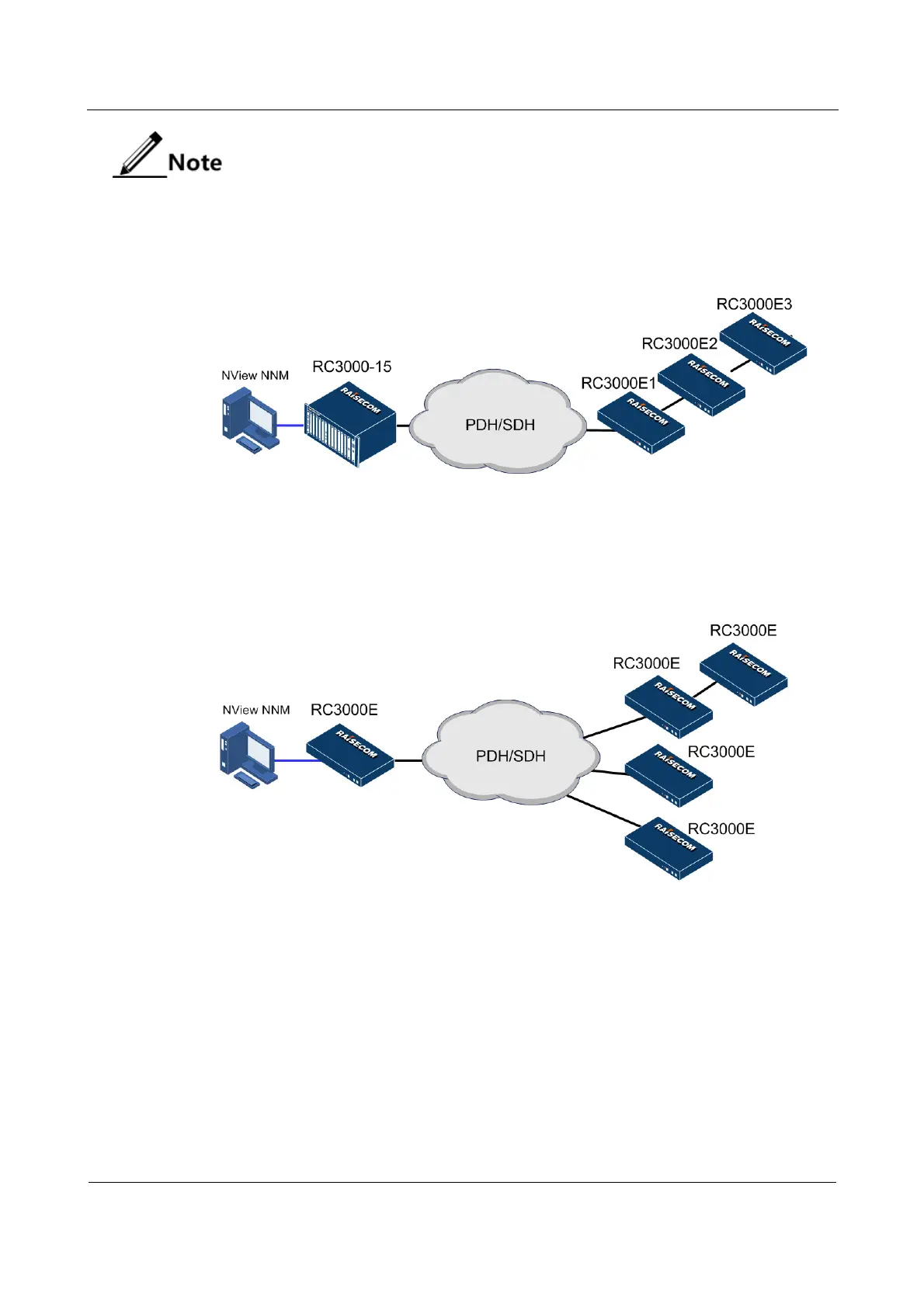

Figure 5-3 Typical applications of the RC3000E (3)
As shown in Figure 5-3, in the remote end, the RC3000E devices are cascaded in chain and
each RC3000E device can transmit voice and data services; in the local end, the RC3000-15
can aggregate services in large capacity. Meanwhile, the NView NNM system can manage the
RC3000-15 and RC3000E devices comprehensively.
Figure 5-4 Typical applications of the RC3000E (4)
As shown in Figure 5-4, it is a point-to-multipoint networking application of the RC3000E. In
the remote end, these RC3000E devices can transmit voice and data services. In the local end,
the RC3000E is used to aggregate services and the NView NNM system can manage the
RC3000E devices comprehensively.
