4.13 RC3000-SUB-DC64K
4.13.1 Appearance and functions

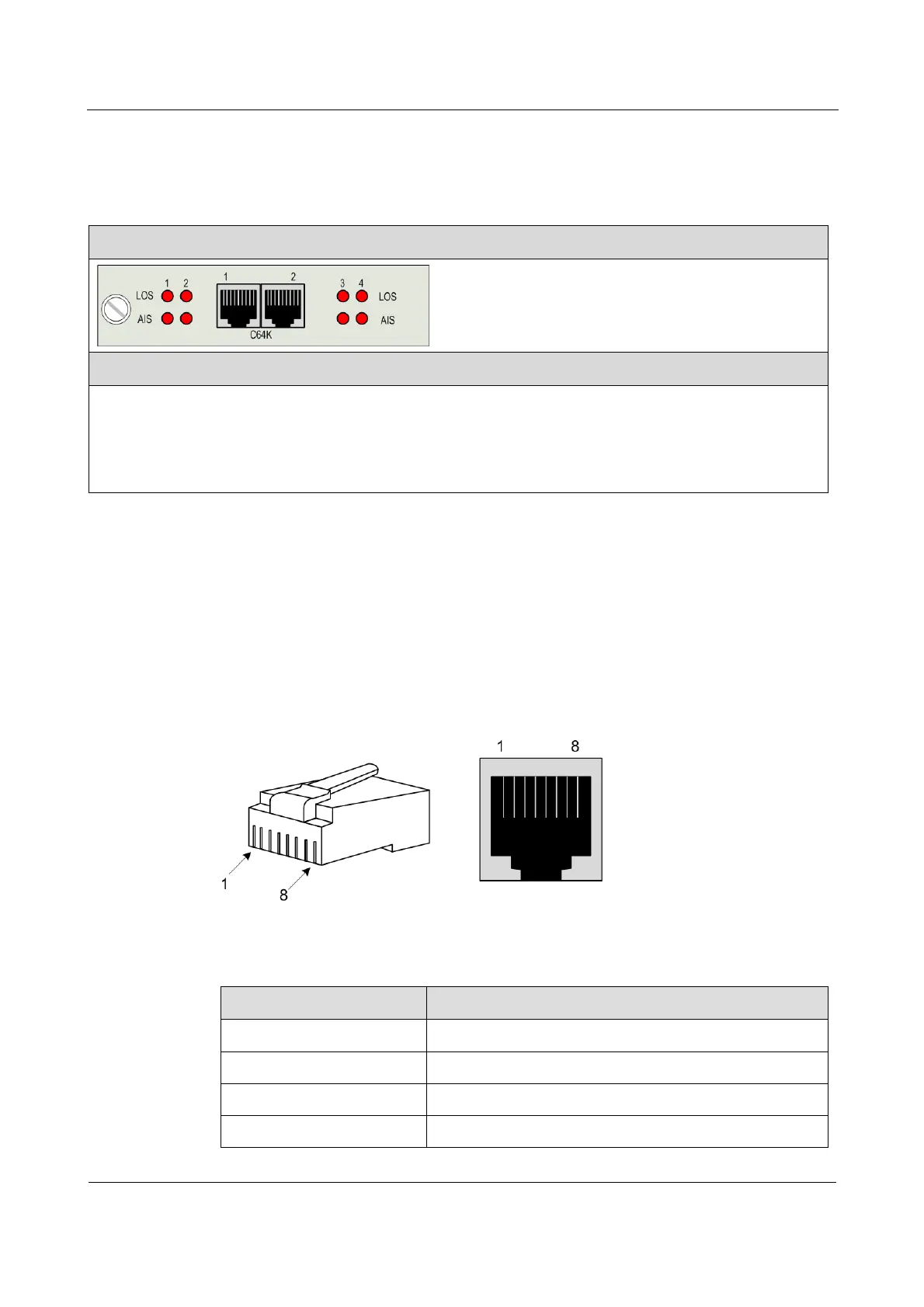

Panel
Function
The RC3000-SUB-DC64K is the 4-way codirectional 64K data card on the RC3000E.

Interface signal rate is 256 kbaud.

Each card has 4 channels and occupies four 64K channels (each channel occupies one 64K channel). The
number of occupied channels depends on the hardware and cannot be changed.

Provide 2 RJ45 interfaces, each one of which provides 2 user access interfaces.
4.13.2 Slots
The RC3000-SUB-DC64K can be inserted into slots 1–3.
4.13.3 Interfaces
Figure 4-9 shows the appearance of the RJ45 interface.
Figure 4-9 Appearance of the RJ45 interface
Table 4-18 lists the relationship between the PIN and the signal name.
Table 4-18 Relationship between the PIN and the signal name
PIN
64K signal name
1
TD1+
2
TD1-
3
RD2+
4
RD1+
