RC3000E (P100R001) Product Description
4 Cards
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
45
PIN
64K signal name
5
RD1-
6
RD2-
7
TD2+
8
TD2-
4.13.4 LEDs
Table 4-19 lists the LEDs on the RC3000-SUB-DC64K.
Table 4-19 LEDs on the RC3000-SUB-DC64K
LEDs
Status
Description
LOS
Red

Red: some signal is lost.

Off: no signal is lost.
AIS
Red

Red: error code (all-1) occurs.

Off: no error code occurs.
4.13.5 Technical specifications
Dimensions: 70 mm (Width) × 167.5 mm (Depth) × 20 mm (Height)

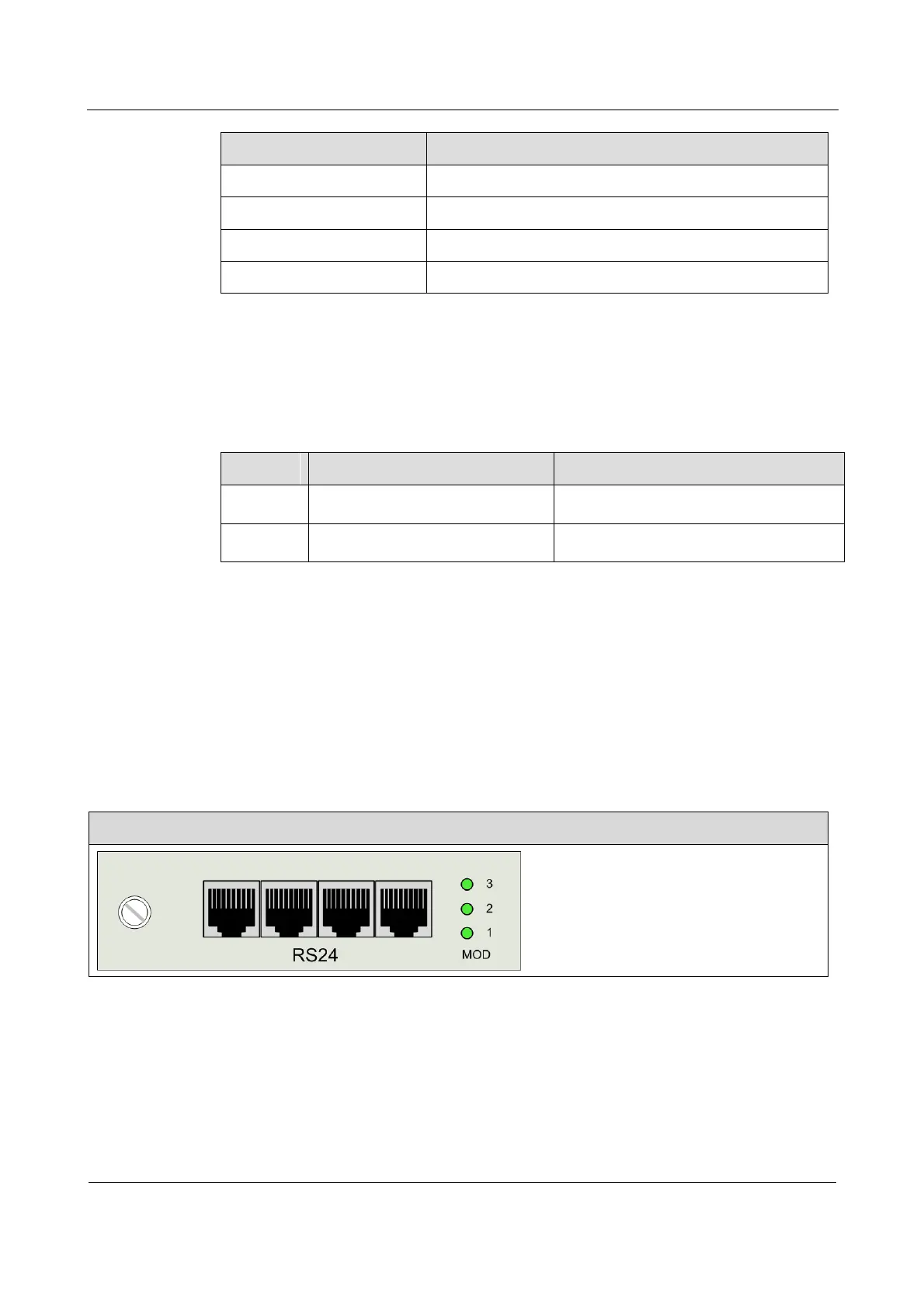

4.14 RC3000-SUB-RS24
4.14.1 Appearance and functions
Panel
