R&S RT-ZC31 - Description of the Probe

Product Description
R&S
®
RT-ZC31
11User Manual 1801.4949.02 ─ 01
If there is any damage or defect, or if the R&S RT-ZC31 current probe does
not operate properly, notify your Rohde & Schwarz service center.
●
Inspect the accessories.
If the contents are incomplete or damaged, notify your Rohde & Schwarz ser-
vice center.
The following accessories are delivered with the probe:
●
User manual
●
Carrying case
●
R&S RT-Zxx data sheet
●
Calibration certificate
●
Documentation of calibrated values
2.4 Description of the Probe
2.4.1 Probe Overview

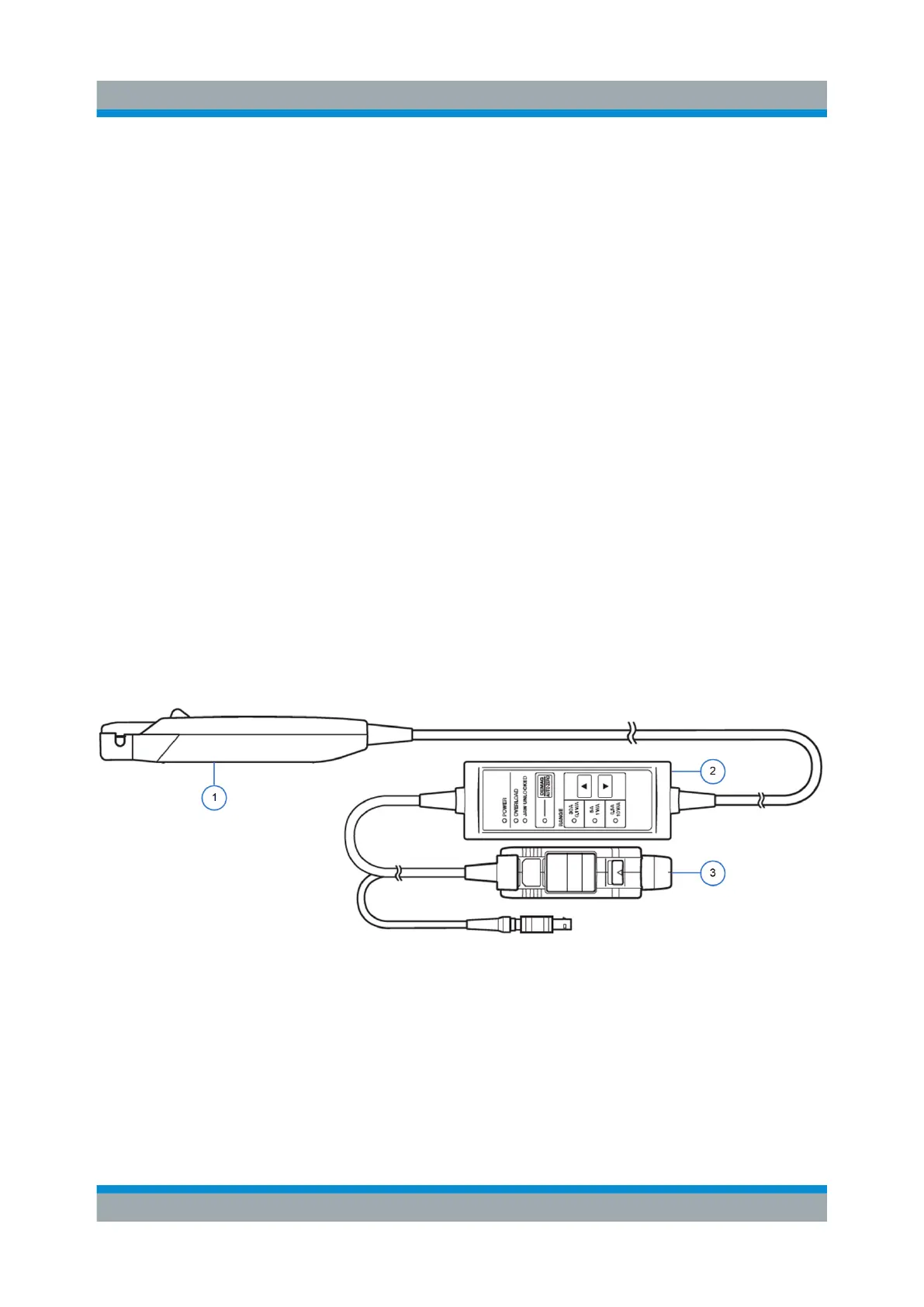

Figure 2-1: Probe overview
1 = Sensor
2 = Junction box
3 = Termination unit
Description of the Probe
