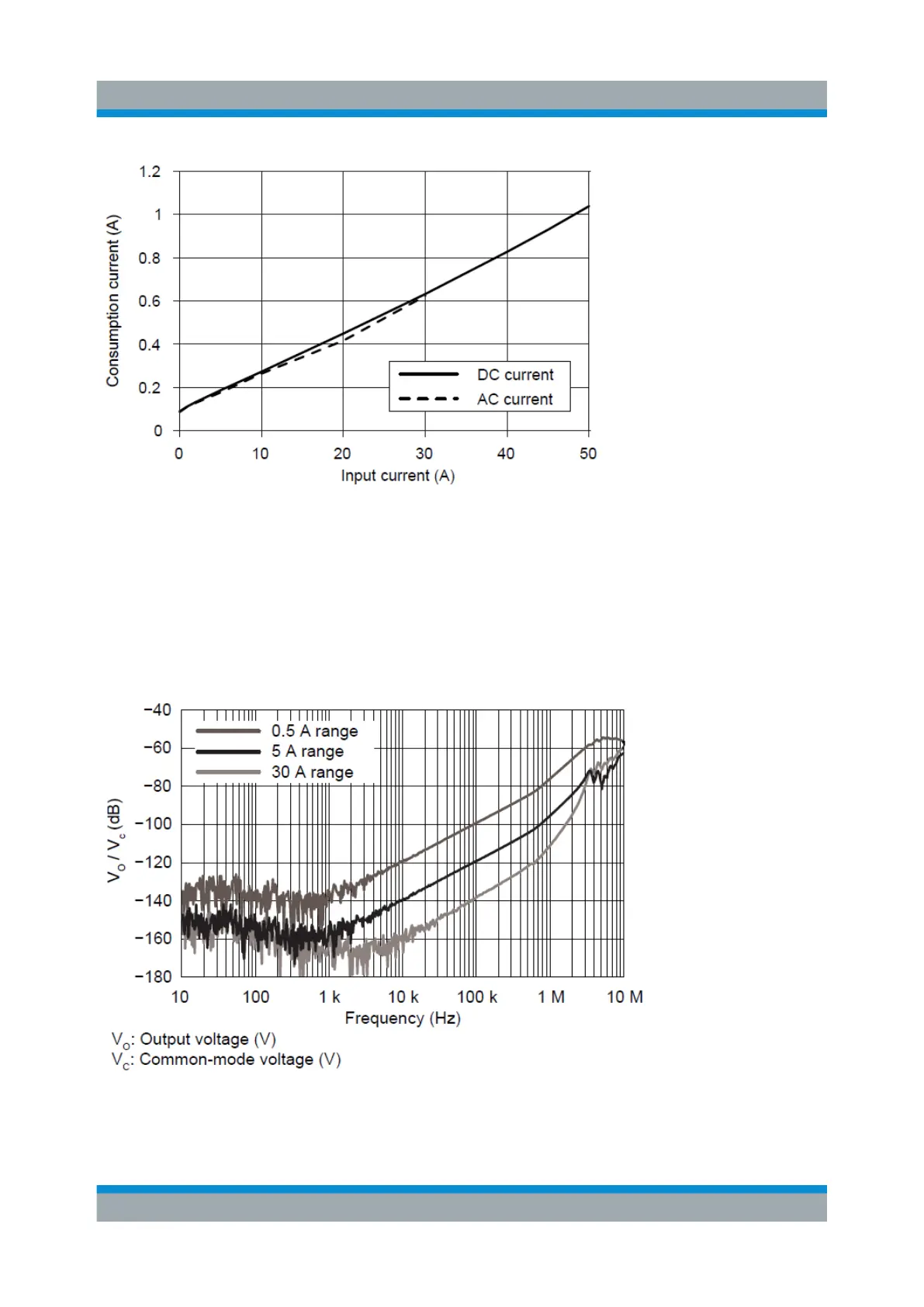

Figure 3-5: Consumption current (with the specified 30 A range )
3.7.5 Influence of Common-Mode Voltage
Fig. 3-6 shows the ratio of a common-mode voltage applied to the conductor
being measured and the resulting output voltage.
Figure 3-6: Influence of common-mode voltage
Typical Characteristics
