Measuring Procedure
R&S
®
RT-ZC31
23User Manual 1801.4949.02 ─ 01

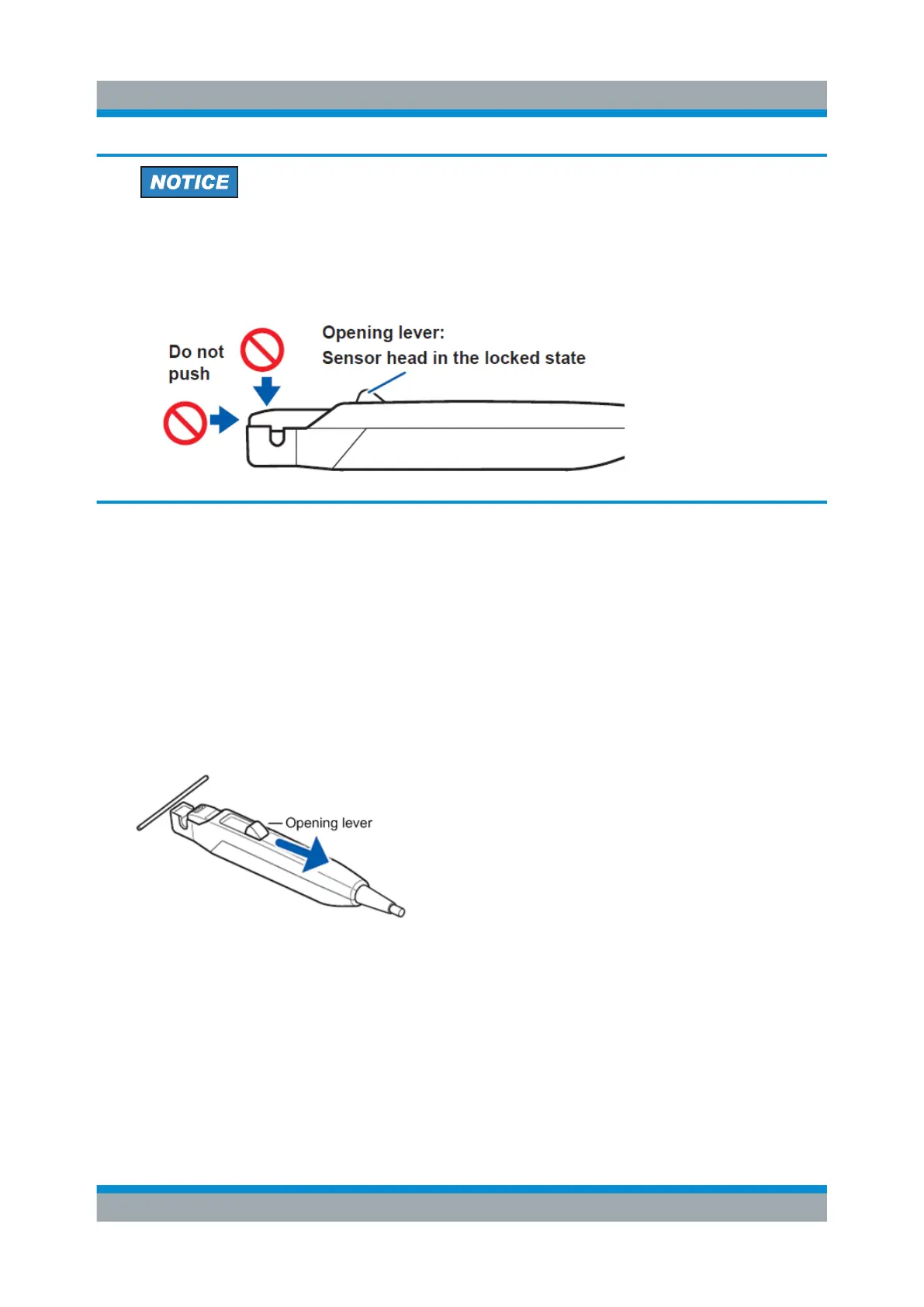

Risk of instrument damage
When opening the sensor head, always operate the opening lever. Subject-
ing the sensor head to force from the directions shown in the figure while it
is locked may damage the clamping mechanism.
3.3 Connecting the Probe to the DUT
1. Check that the system is safe, and that the preparations described in the pre-
ceding sections have been carried out.
2. Pull the sensor opening lever, so that the sensor head opens.
3. Align the sensor so that the current direction indication matches the direction
of current flow through the conductor that you measure. The conductor should
be in the center of the clamp aperture because the measurement may be
affected by the position within the clamp aperture of the conductor being mea-
sured.
4. Press the opening lever until the JAW UNLOCKED indication disappears.
Check, if the sensors head is properly closed. The JAW UNLOCKED LED
turns off.
Connecting the Probe to the DUT
