Measuring Procedure

R&S

RT-ZC31

33User Manual 1801.4949.02 ─ 01

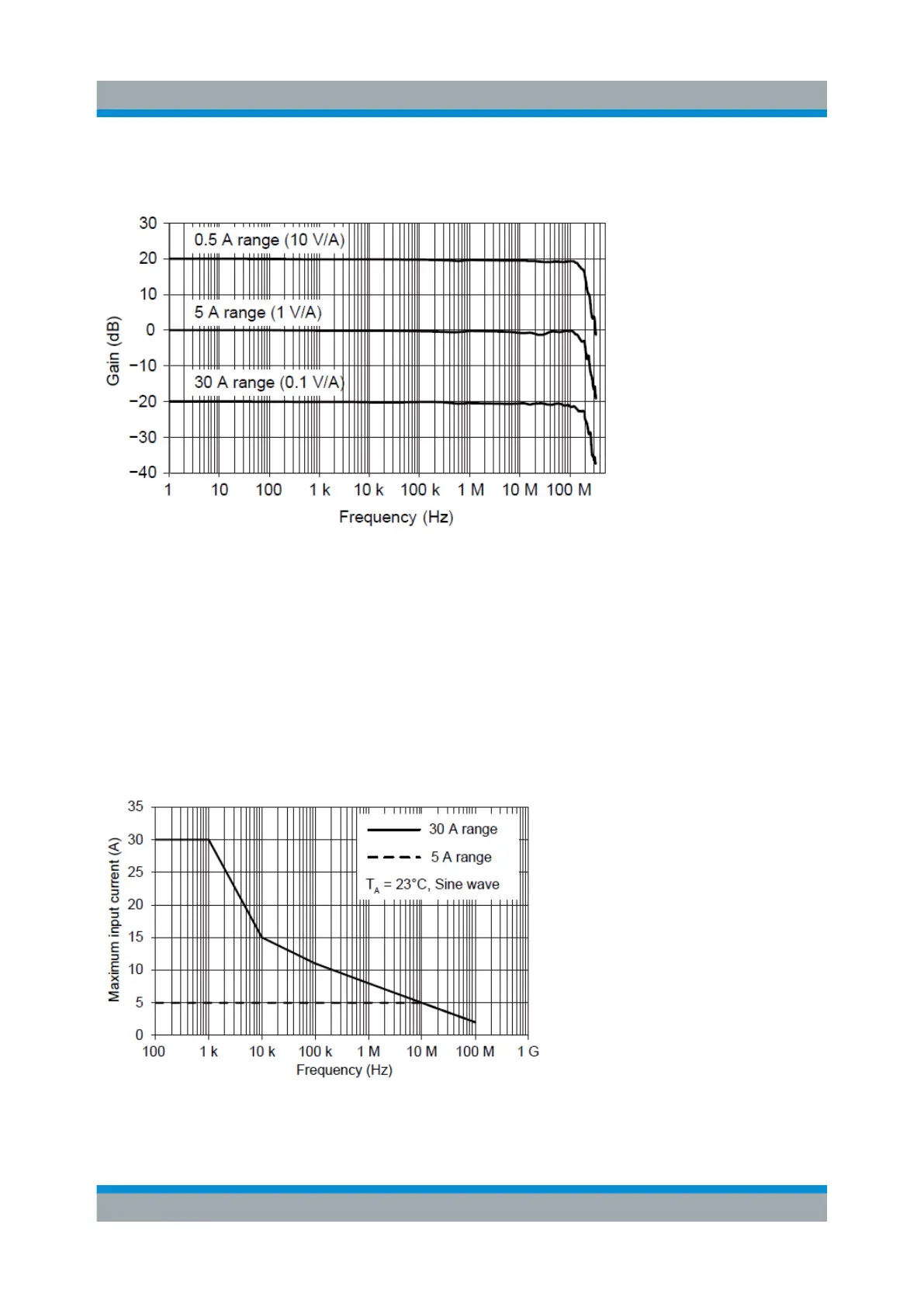

3.7.1 Frequency Characteristics

Figure 3-2: Frequency characteristics

3.7.2 Frequency Derating Curve

Fig. 3-3 shows the derating curves with a sine-wave current input. If the ambient

temperature rises or the current being measured contains high-frequency compo-

nents, the device temperature rises, and thus its continuously inputtable current

value and frequency lowers.

Figure 3-3: Frequency derating curve

Typical Characteristics
