Measuring Procedure

R&S

RT-ZC31

34User Manual 1801.4949.02 ─ 01

3.7.3 Input Impedance

The current probe inserts a load in the circuit to be measured as shown in fig. 3-4.

In particular, take this characteristic into account when measuring a high-fre-

quency current.

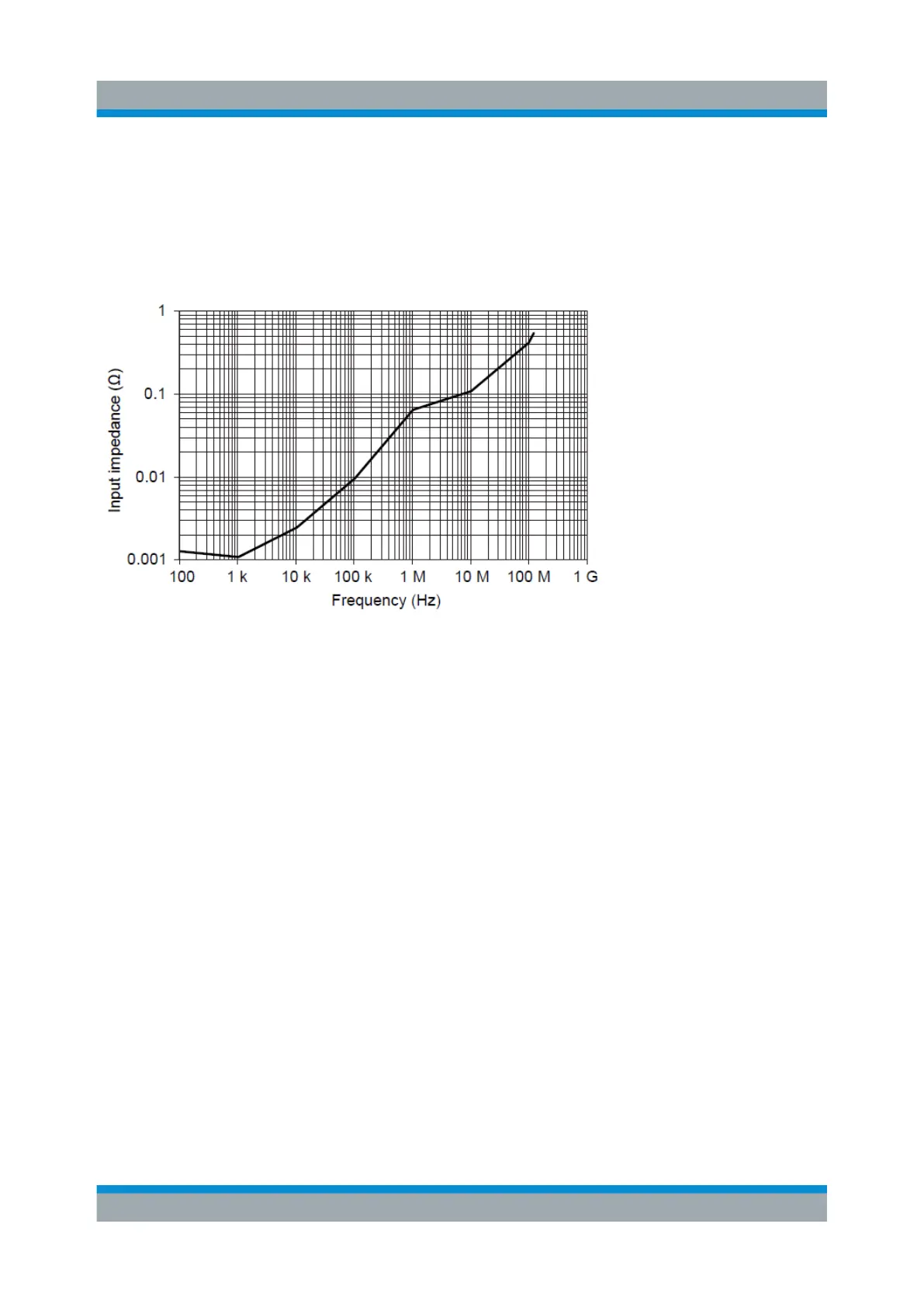

Figure 3-4: Input impedance as a function of frequency

3.7.4 Consumption Current

Fig. 3-5 shows the current consumption of the current probe drawn from the

power supply versus the input current in the 30 A range.

Typical Characteristics
