GUI reference
R&S
®
ZNA
785User Manual 1178.6462.02 ─ 20
●
Lock screen – all control elements are locked. Pressing any front panel key on the
analyzer (or sending SYSTem:TSLock OFF) re-enables touchscreen control.
Remote command:
SYSTem:TSLock

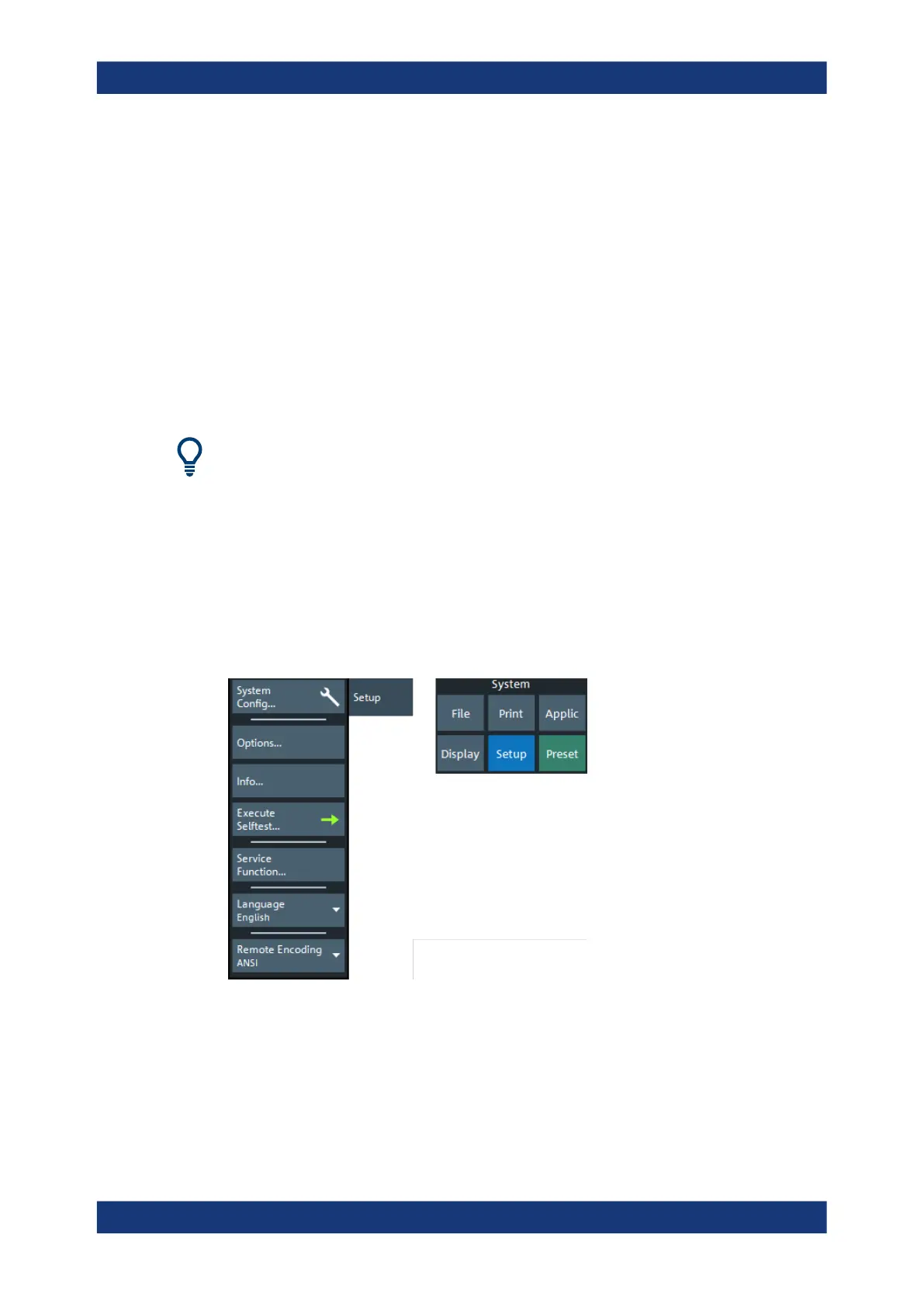

5.19 Setup softtool
The "Setup" softtool allows you to define various system-related settings, to manage
global resources, to get system information and to execute service functions.
Access: System – [Setup]
Persistent vs. session settings
The settings in the "Setup" softtool and the configuration dialogs are global settings
and not affected by a "Preset" or shutdown of the analyzer.
5.19.1 Setup tab
Gives access to system-wide properties, settings, resources and service functions.
5.19.1.1 Controls on the Setup tab
The following buttons in the "Setup" tab open related dialogs:
●
"System Config...": System Config dialog
●
"Options...": "Info" dialog > Options Tab
●
"Info...": "Info" dialog > Setup Tab
●
"Execute Selftest...": "Info" dialog > Selftest Tab
(Runs the selftest first)
Setup softtool
