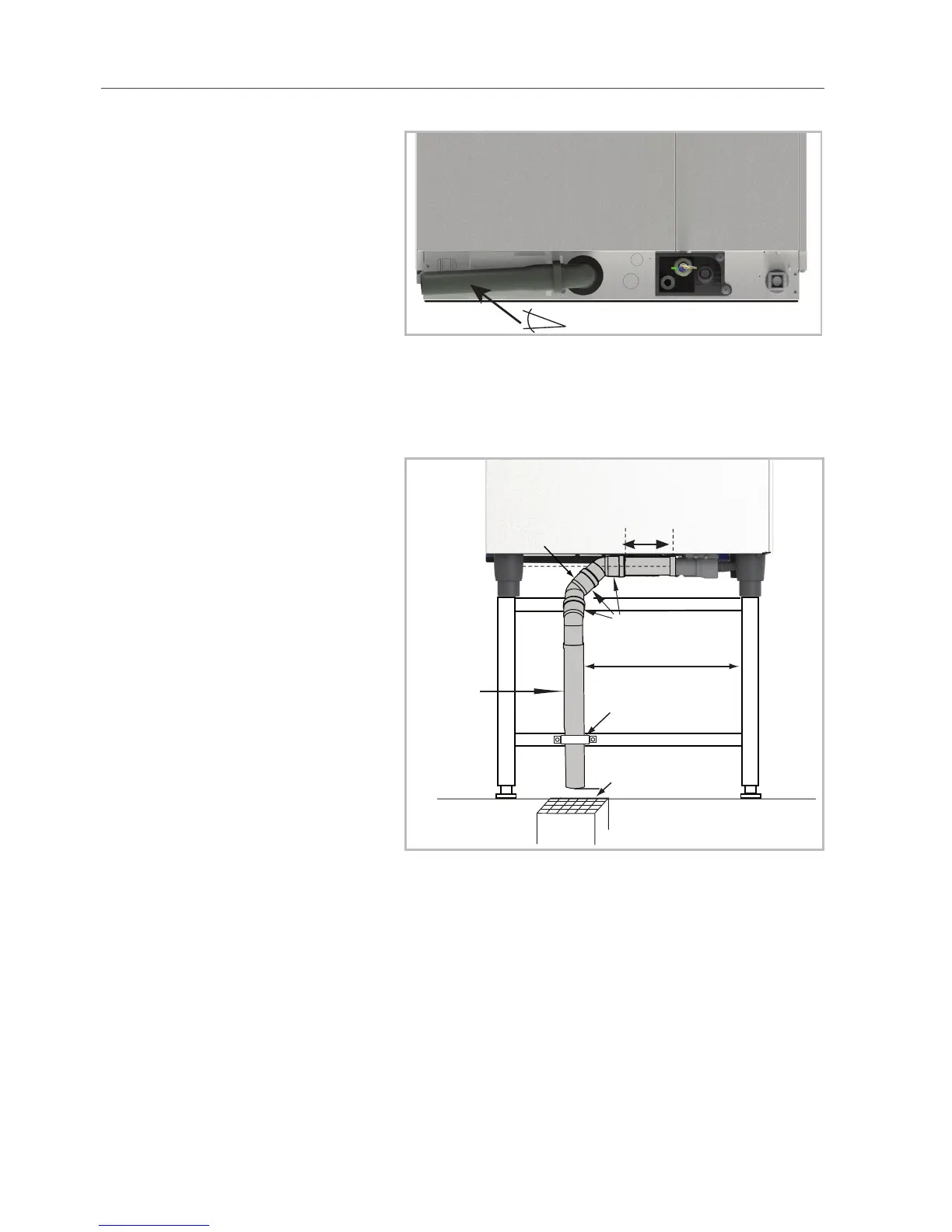

10 Wastewater connection
Unit size 60
min. 3°/5%
Ø 40 mm (1½”)
Unit sizes 61, 62, 11, 12
> Avoid bends attached immediately at unit.
> Provide 8 - 10” before a bend.
weight of piping
not to be placed
on unit drain
Air gap per
local code
Clamped
to stand
approx. 24“
3x45°
2“ copper
pipe
8 - 10”
