2.Installation

Follow the steps through to connect your SCSI device to the FR1SX, and

connect it to a PC/Mac:

2-1.Connecting the FR1SX to a SCSI device

1)Make sure the SCSI device is in Power-OFF state.

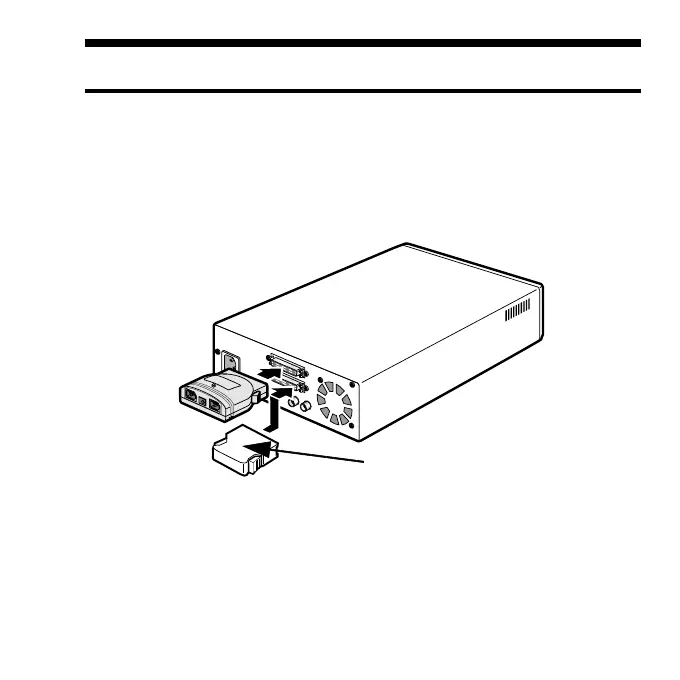

Connect the FR1SX to a SCSI device, as Fig.3 shows. If you have a SCSI

device with a Low-Density Centronics 50 pin or DB25 connector, you

can order an OPTINAL Adapter. In such a case , refer to Chapter 5-6 and 7.

Terminator

Fig. 3
