Rauch AXIS-M 30.2 - Transmission for the M EMC Function; Agitator

Technical data 4
24

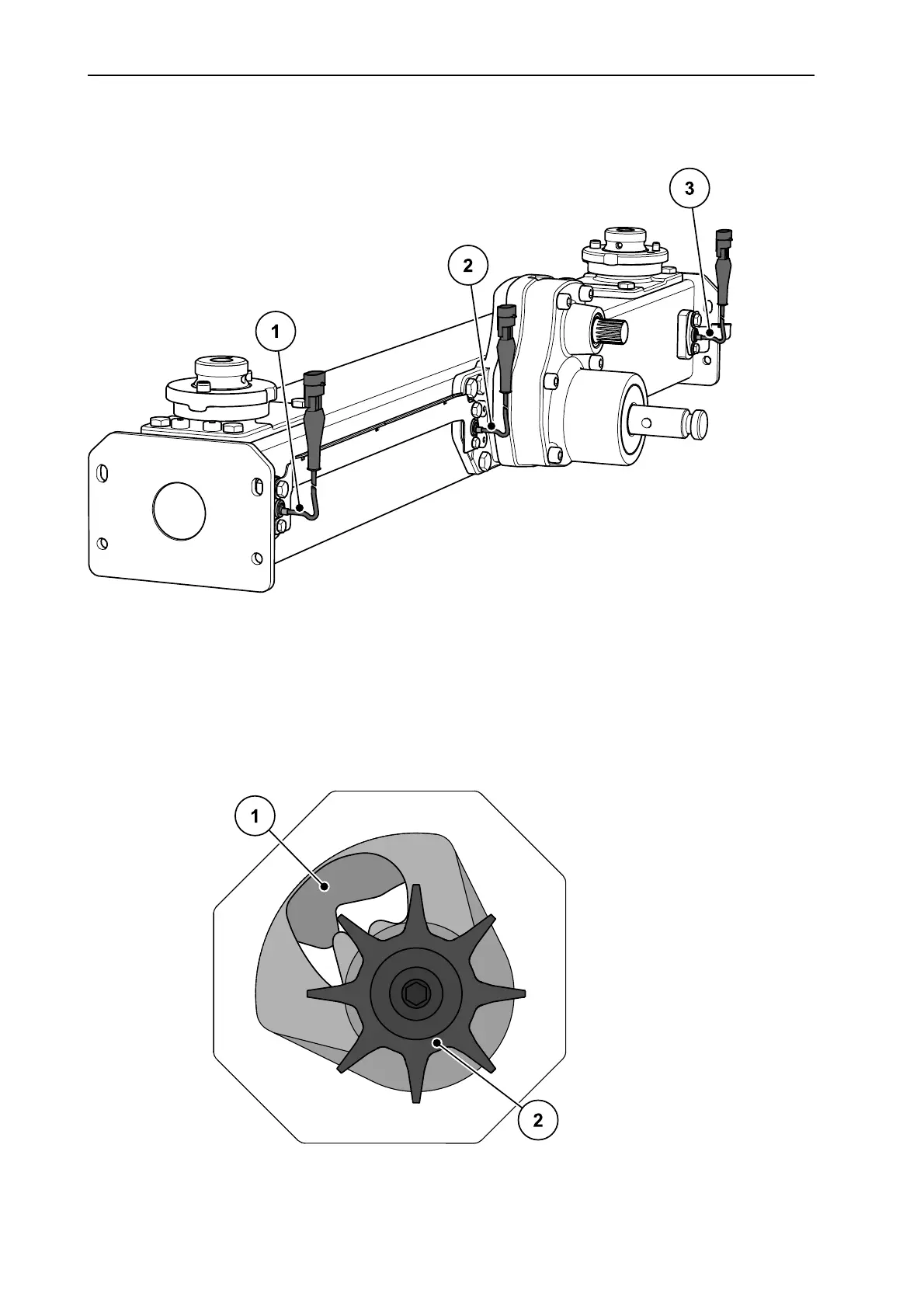

4.2.2 Transmission for the M EMC function
4.2.3 Agitator
Figure 4.4: Agitator
[1] Metering slide
[2] Agitator
Figure 4.3: Mass flow control by measuring the torque of the spreading discs:
AXIS-M 30.2/40.2 EMC
[1] Right speed sensor (direction of travel)
[2] Reference speed sensor
[3] Left speed sensor (direction of travel)
