7.9 Setting the GSE limited border spreading unit optional equipment
The border spreading unit limits the spreading width (either towards the left or
right) to a range between approx. 0 m and 3 m from the centre of the tractor track
to the outer edge of the field.
Close the metering slider that points to the edge of the field.
Fold the limited border spreading unit downwards for boundary spreading.
The border spreading unit must be folded up again before starting the two-si-
ded spreading.

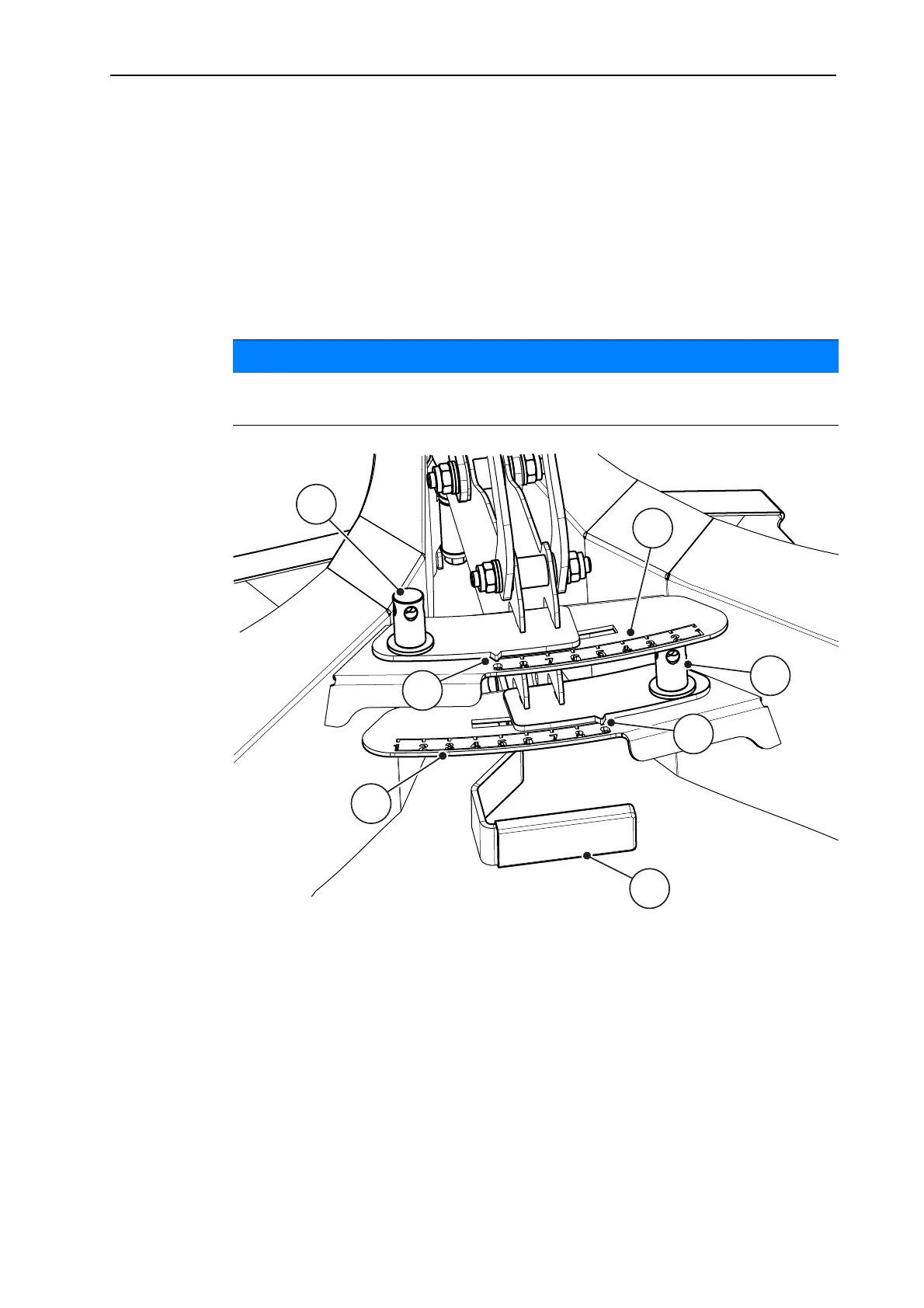

Figure 7.19: Setting the border spreading unit
[1] Numeric scale, left side
[2] Adjustment nut for numeric scale
[3] Indicator
[4] Hand grip
[5] Numeric scale, right side
1. The position of the pointer [3] is to be obtained from the assembly instruction
manual included in the scope of delivery.
2. Loosen the adjustment nut [2] for the numeric scale using the adjustment le-
ver of the machine.
3. Slide the numeric scale so that the pointer is directed to the value determined.
Use the hand grip [4] for this purpose.
NOTICE
The settings for the border spreading unit refer to the spreading disc working
towards the inside of the field.
