Commissioning
69
7

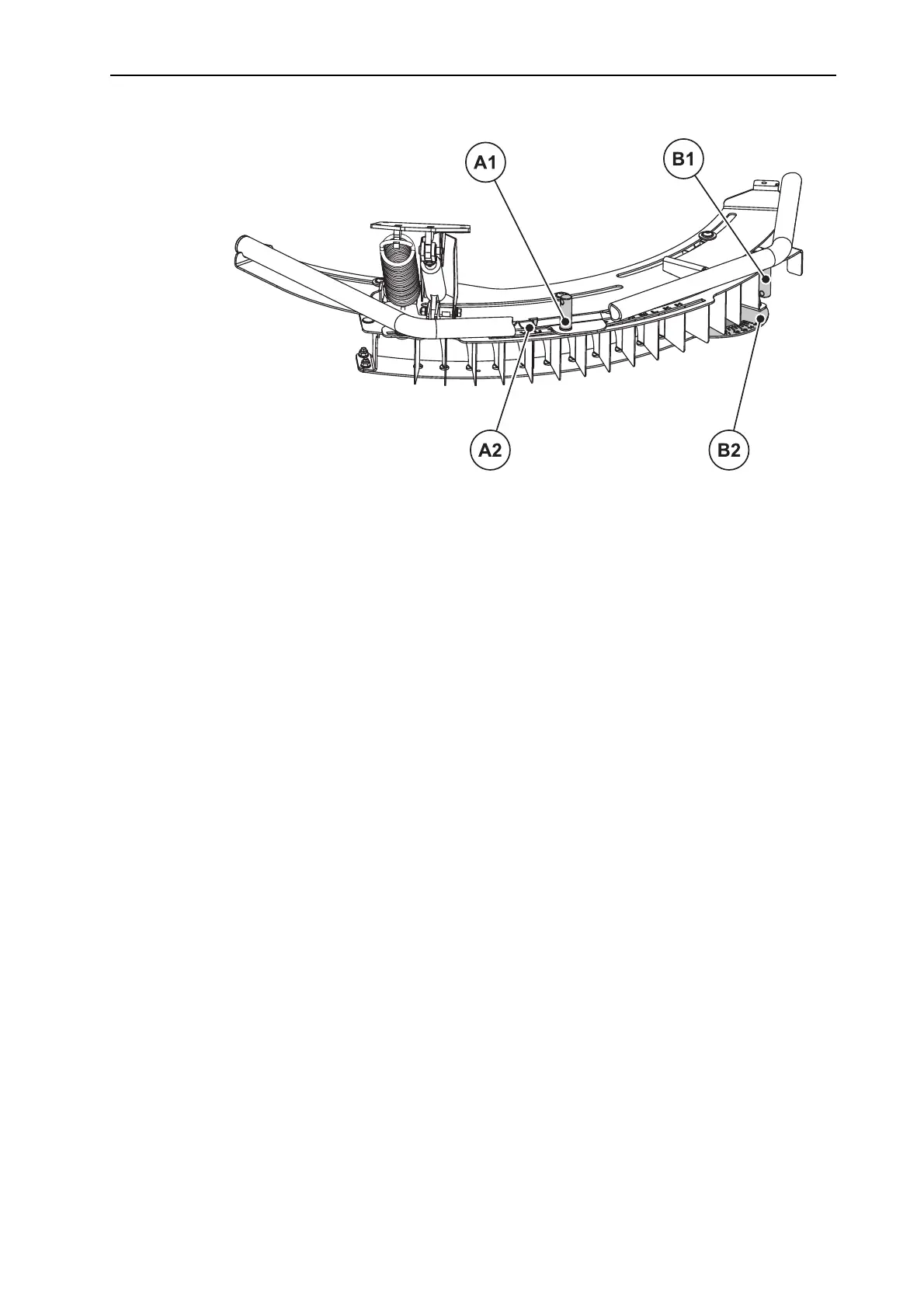

Figure 7.20: Setting the TELIMAT
[A1] Adjustment nut for alphabetic scale
[A2] Alphabetic scale for coarse adjustment
[B1] Adjustment nut for numeric scale
[B2] Numeric scale for fine adjustment
Coarse adjustment (alphabetic scale):
The complete TELIMAT housing can be rotated in guidings around the spreading
disc pivot (alphabetic scale H to Z). The alphabetic scale is used to adjust the
TELIMAT housing according to the respective fertiliser type, working width and
boundary spreading type (boundary or full border spreading).
1.
Loosen the adjustment nut for the alphabetic scale using the adjustment lever
of the machine.
2. Move TELIMAT housing (sliding section) to the letter specified in the calibra-
tion chart..
The arrow is exactly above the specified letter.
3. Tighten the adjustment nut for the alphabetic scale using the adjustment lever
of the machine.
Fine adjustment (numeric scale):
One-piece guiding plates are available inside the border spreading system and
can be moved along a numeric scale (scale 11 to 15). The numeric scale is mainly
used for fine tuning.
1. Loosen the adjustment nut for the numeric scale using the adjustment lever
of the machine.
2.
Move guiding plate to the number value specified in the calibration chart.
The specified number value is precisely aligned with the first guiding
plate.
3.
Tighten the adjustment nut for the numeric scale using the adjustment lever of
the machine.
