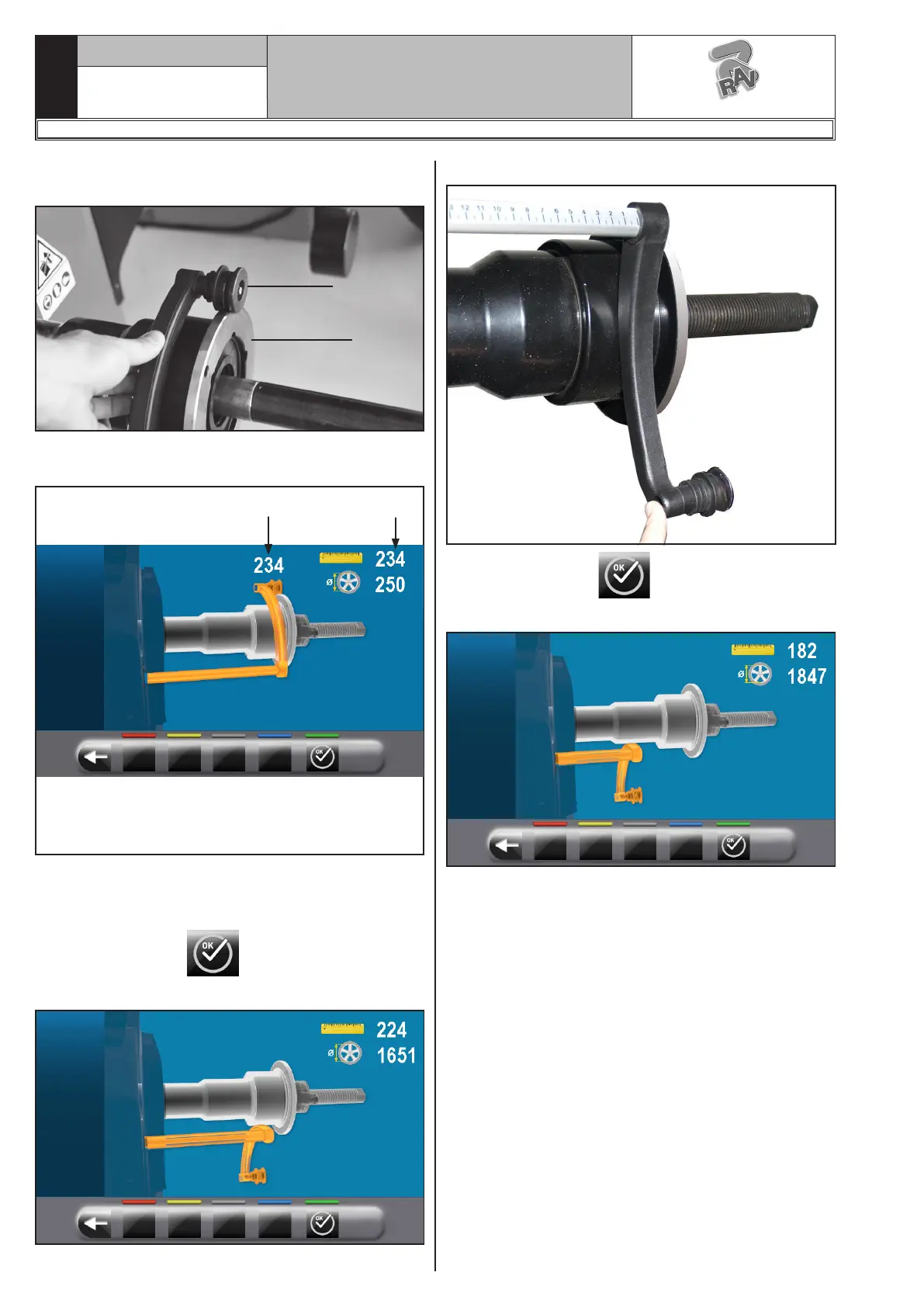

Place the gauge (Fig. 73 ref. 1) on the chuck flange
(Fig. 73 ref. 2).
Fig. 73
2
1
The following screen will appear on the monitor to
indicate the measured values:
2
1
Fig._74
KEY
1 – Example of value on threaded chuck
2 – Example of value detected by the gauge
- The value indicated on the gauge (Fig._74 ref. 2)
must be equal to the value shown next to the "scale"
symbol (Fig._74 ref. 1) ± 1 mm.
- Press push button .
The following screen will appear on the monitor:
- Place the gauge as shown in the following figure:
- Press push button . Wait a few seconds until
you see the following screen:
- Place the gauge against the chuck in the lower part
of the it but on a smaller diameter than before as
indicated on the image on the monitor.
