INSTRUCTION, USE AND
MAINTENANCE MANUAL

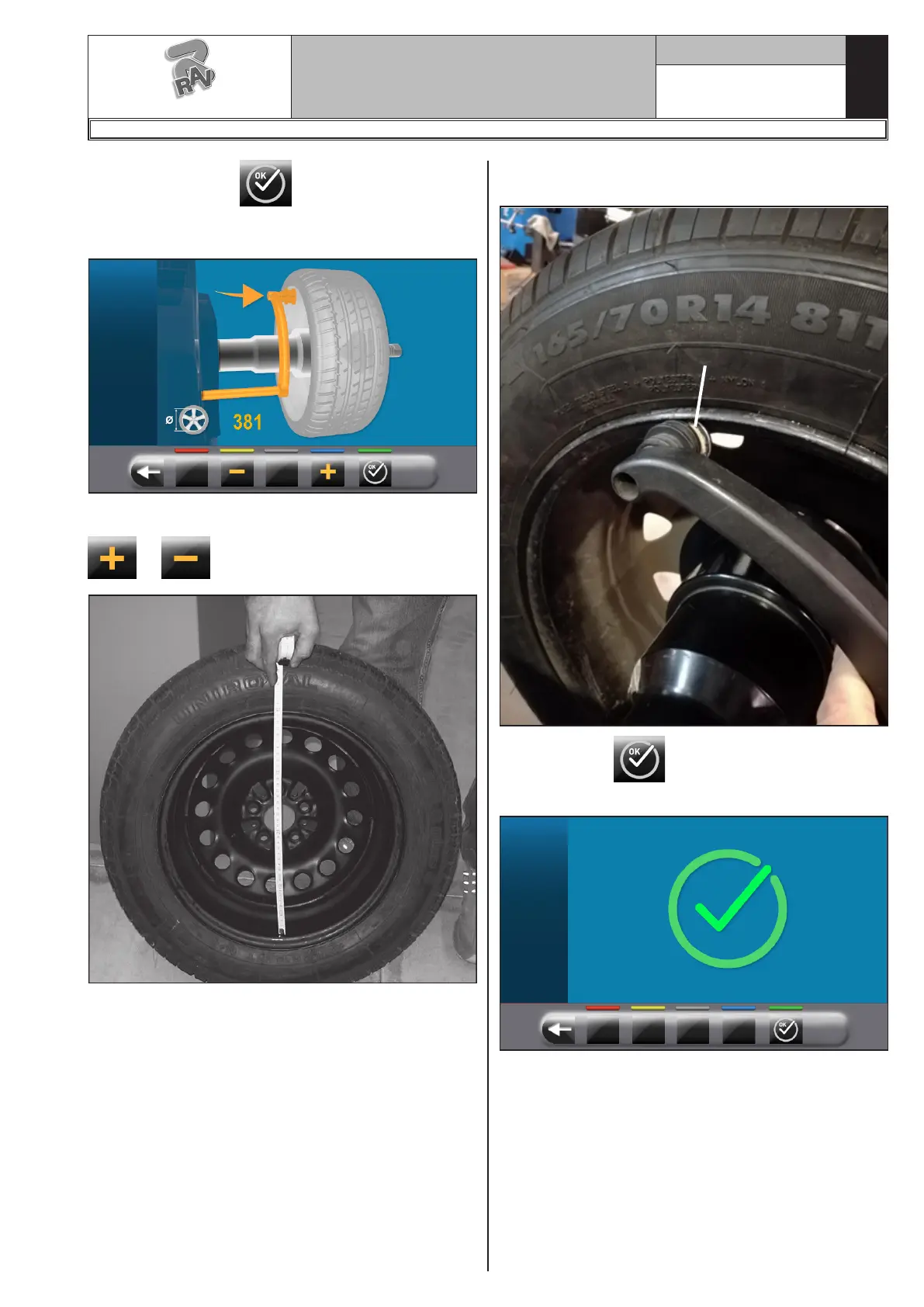

- Press push button .
On the monitor the next screen page will be dis-
played:
Measure the exact diameter of a rim (see Fig. 75) and
place it on the screen on the monitor by pressing the
or buttons.
Fig. 75
- Fit the measured wheel on the balancer and lock it
on the chuck.
- Turn the gauge ferrule (Fig. 76 ref. 1) on the inner
edge of the wheel upwards (see Fig._76).
Fig. 76
1
- Press button to end the operation. On the
monitor the next screen page will be displayed:
The calibration of the distance-diameter caliper is
finished.
G3.150 - GP3.150 - G3.150S - GP3.150S - G3.150WS - GP3.150WS - G3.150WSPLUS - GP3.150WSPLUS - G3.150SA - G3.150WSA
RAVAGLIOLI S.p.A.
1297-M058-00
