Press button .
On the monitor the next screen page will be displayed:
Move the tip of the width measuring device (Fig. 78
ref. 1) in line with the outer surface of the flange
(Fig. 78 ref. 2).
Fig. 78
Press button .
At the end of the operation, the following screen will
appear on the monitor:
The calibration of the external data gauge is finished.

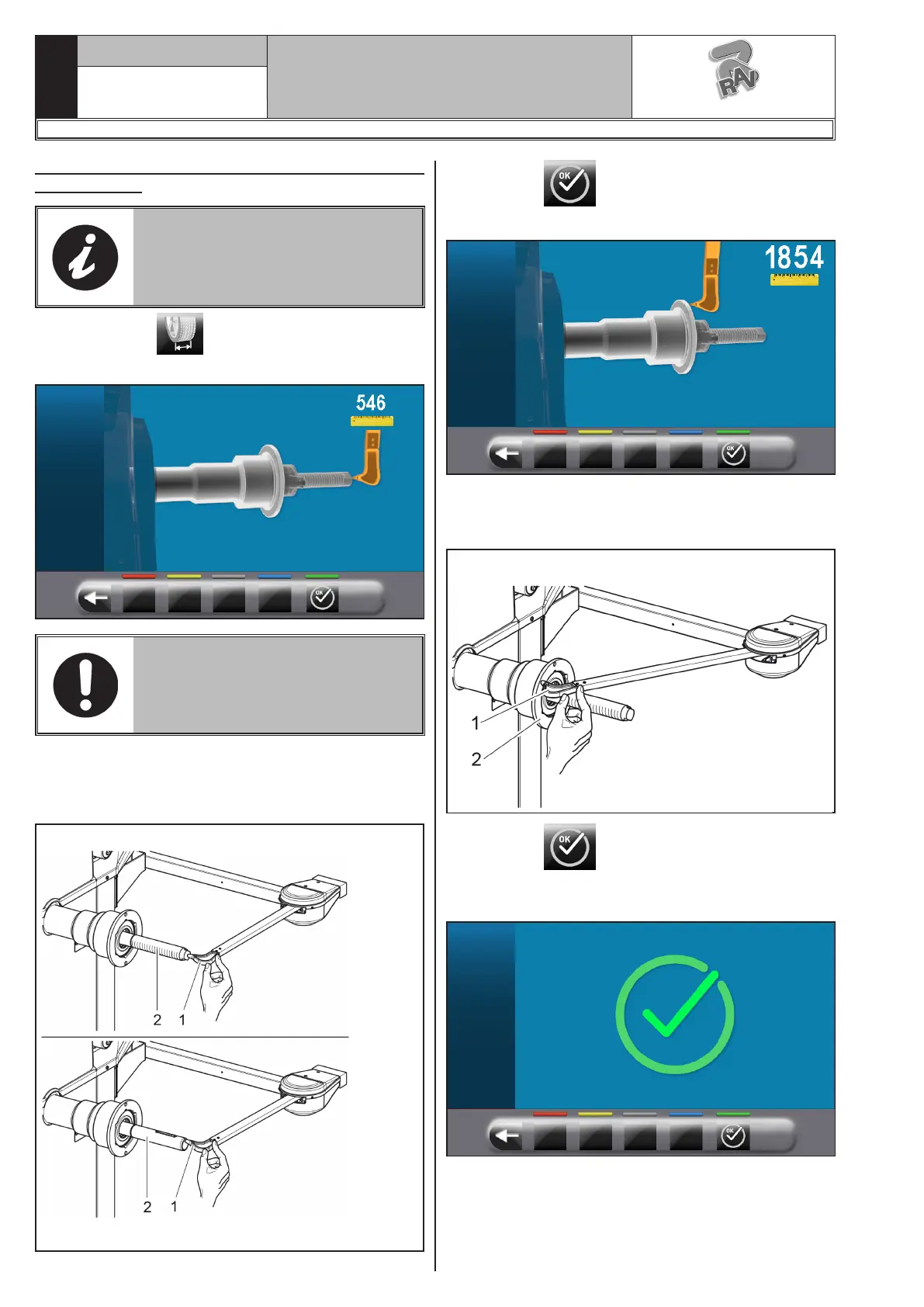

Calibration of external data gauge (standard on
some models)
THE NUMERICAL VALUES SHOWN
IN THE FIGURES BELOW ARE
PURELY ILLUSTRATIVE.
Press the button to display the following screen
page on the monitor:
TO PERFORM THIS CALIBRATION,
THE CHUCK MUST BE UNLOADED
(NO WHEEL OR ACCESSORIES
MOUNTED ON IT) AND WITH OPEN
PNEUMATIC CHUCK.
Move the tip of the width measuring device (Fig. 77
ref. 1) by the chuck end (Fig. 77 ref. 2) (in case of
pneumatic chuck, move it next to upper edge of the
open chuck).
THREADED CHUCK
Fig. 77
PNEUMATIC CHUCK
