EN
Page 82 of 91
INSTRUCTION, USE AND
MAINTENANCE MANUAL

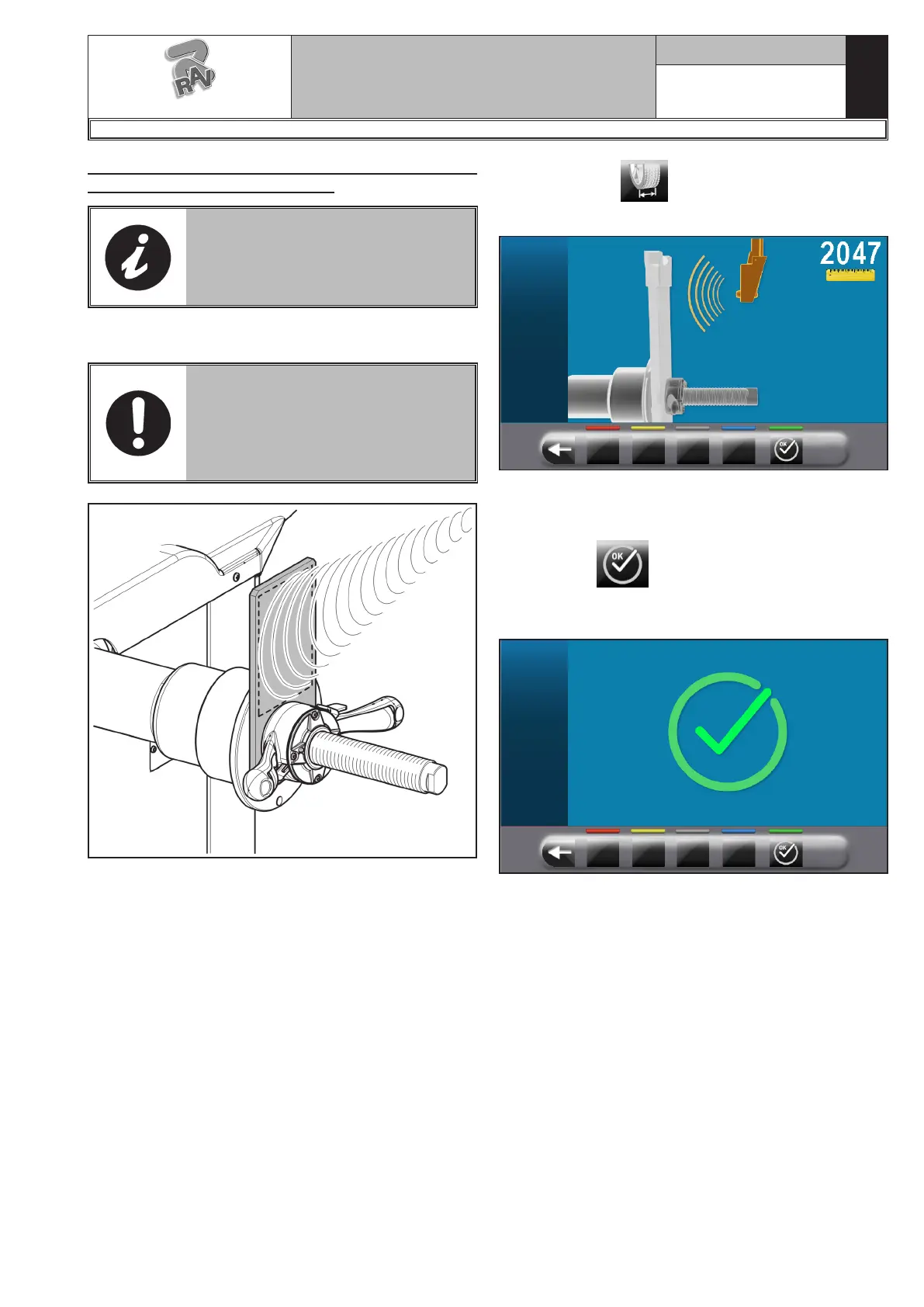

Calibration of automatic width measuring device
unit (standard on some models)
THE NUMERICAL VALUES SHOWN
IN THE FIGURES BELOW ARE
PURELY ILLUSTRATIVE.
Mount the sizing body (optional fixture) onto the chuck
and fix it through the special locking devices.
IN MACHINES WITH THREADED
CHUCK MAKE SURE THAT THE
RING NUT DOES NOT OBSTRUCT
THE READING OF THE SEN-
SOR DURING THE CALIBRATION
PHASE (SEE FIGURE BELOW).
Press the button to display the following screen
page on the monitor:
Close the wheel cover until bringing the automatic
width sensor next to the sizing body previously in-
stalled.
Press button .
At the end of the operation, the following screen will
appear on the monitor:
The calibration of the automatic external data gauge
is finished.
G3.150 - GP3.150 - G3.150S - GP3.150S - G3.150WS - GP3.150WS - G3.150WSPLUS - GP3.150WSPLUS - G3.150SA - G3.150WSA
RAVAGLIOLI S.p.A.
1297-M058-00
