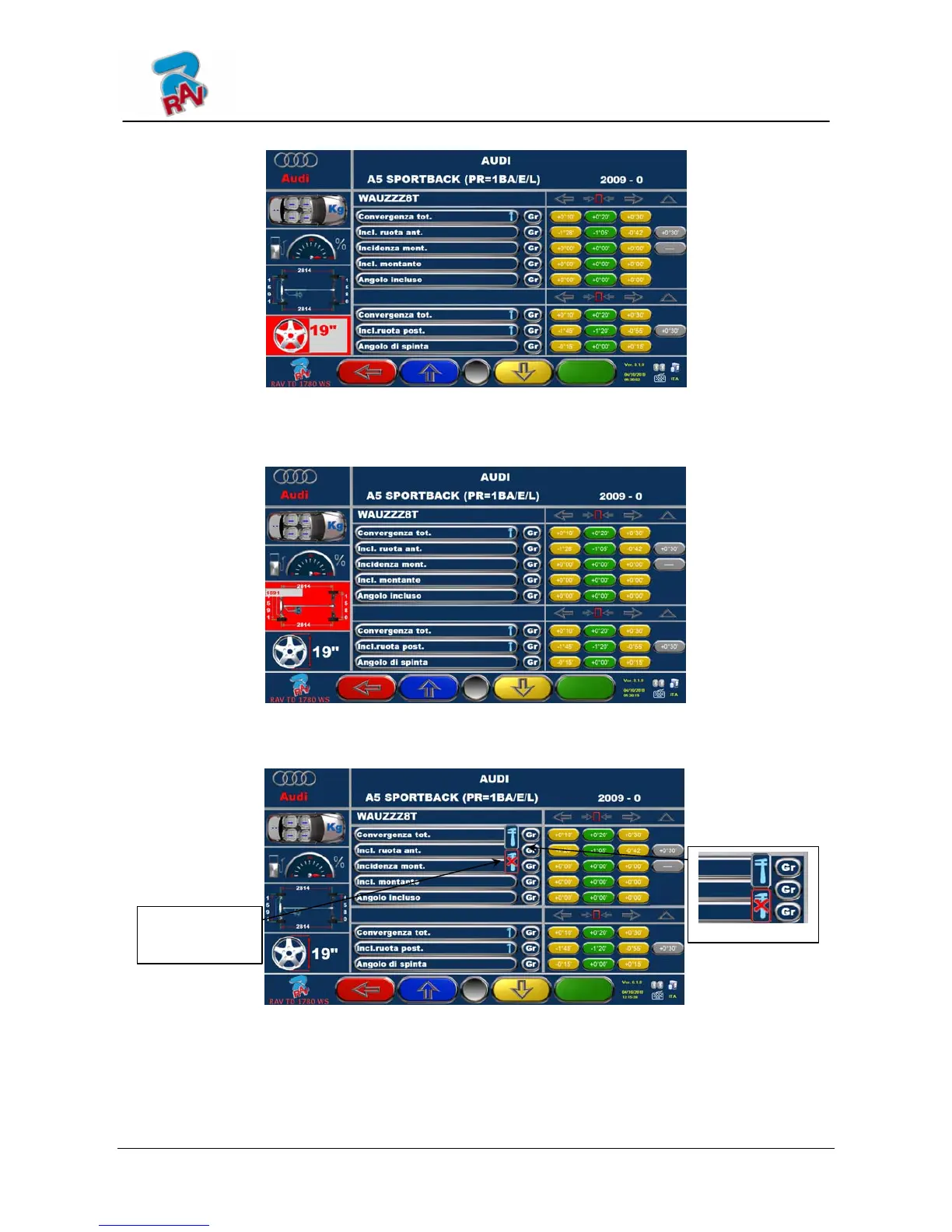

Figure 62
After having selected rim diameter, the following data to be entered are vehicle track and
wheelbase, in the following screen:
Figure 63
Then enter tank and load conditions
Now the screen will look as follows:
Figure 64
Highlighted
point
