Instruction manual
RAVAGLIOLI S.p.A.
RAVTD1760 WS – RAVTD1780 WS
Code M0197 - rev.1.0
(11/2010)
Page 46/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

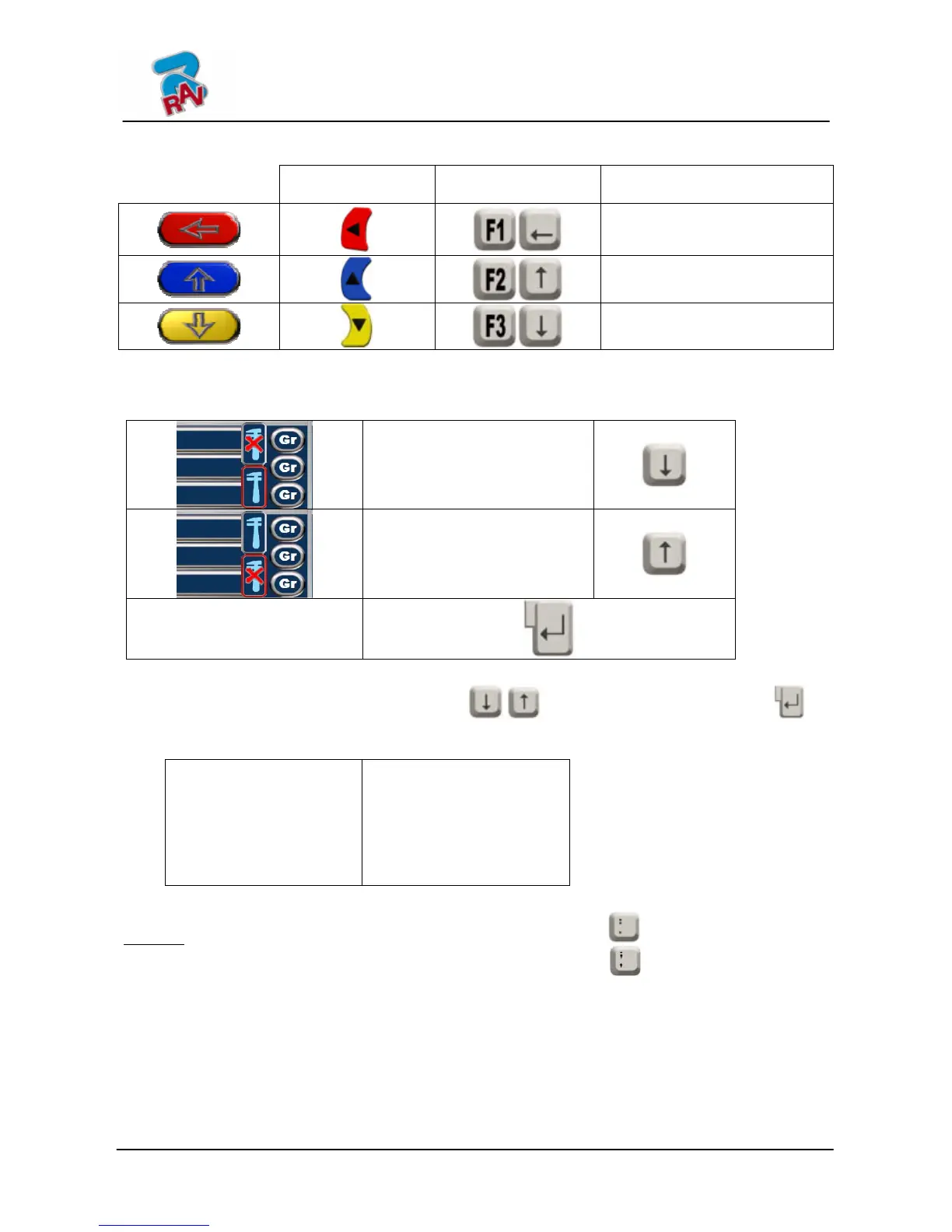

DETECTOR
KEYPAD
PC KEYBOARD DESCRIPTION
It goes back to the
introduction page.
(see chap. 8 on page 19)
It moves selection up.
It moves selection down.
As you can see from the zoom on the right side of Figure 64, you will have to specify if the point
datum refers to can be adjusted or not.
The point to which the data
refer can be adjusted. To
define it as not-adjustable,
press:
The point to which the data
refer cannot be adjusted. To
define it as adjustable, press:
Once the desired option has
been selected, press:
Once angle “adjustability” has been specified, you can enter the graphic animations.
Select the correct image or animation with keys
, then press “Enter” to confirm
Now you shall enter vehicle standard tolerance values as for:
FRONT AXLE:
Toe
Camber
Caster
Kingpin
Included angle
Max. steering
REAR AXLE
Toe
Camber
Thrust angle
Select data as described above, and enter values.
Warning
: To separate whole values from decimals, try using a “dot”
or a “comma”
.
