USER MANUAL – RCS
6. Before setup
Check the forklift truck on the following points before you begin the installation:
6.1 Capacity of the forklift truck
The RCS system can be installed on a forklifttruck with a maximum capacity of 99 ton.
6.2 Maximum pressure in the hydraulic system
The RCS works optimally at an oil pressure up to 350 bar.
6.3 Battery voltage
By default, the indicator is equipped with 4 AA batteries (6Vdc). Optionally, the power supply of the
indicator can be connected to the battery of the forklift.
The most common voltages for fork-lift trucks
are 12, 24, 48 and 80 V. In cases where the battery voltages are higher than 12 VDC, the system
demands a DC-DC voltage converter with an output of 12 Vdc.

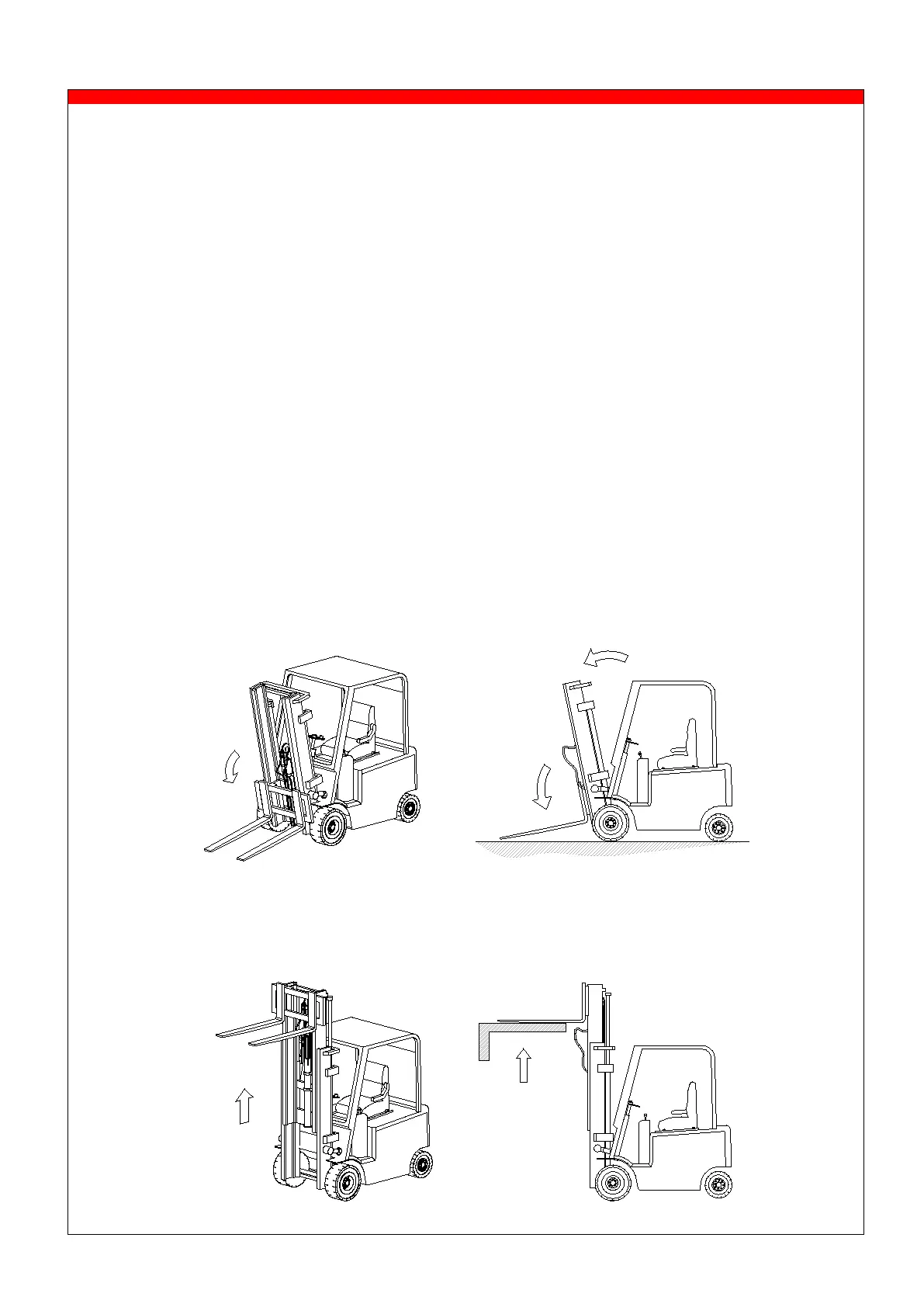

6.4 Make the system free of oil pressure
The forklift truck has to be free of oil pressure. There are two ways to do this:
Option 1: Lower the forks to the ground in the lowest position and make sure the system is
without oil pressure, you can do this by tending the mast forwards. Make sure the
chain hangs loose.
Option 2: Raise the forks and place them on a pallet or an other stable object. Make sure the
system is without oil pressure by putting the cylinder in the lowest position.
Make sure the chain hangs loose.
